CRL Satin Anodized 3/8" Low-Profile Glass Door Rail No Lock - Custom

• Custom Length for 3/8" (10 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Low Profile Rails are Only 2-5/16" (59 mm) Tall
• Available in Several Stock Architectural Finishes — Custom Finishes Available
• Available Without Locks
• Matching Sidelite Rails Available

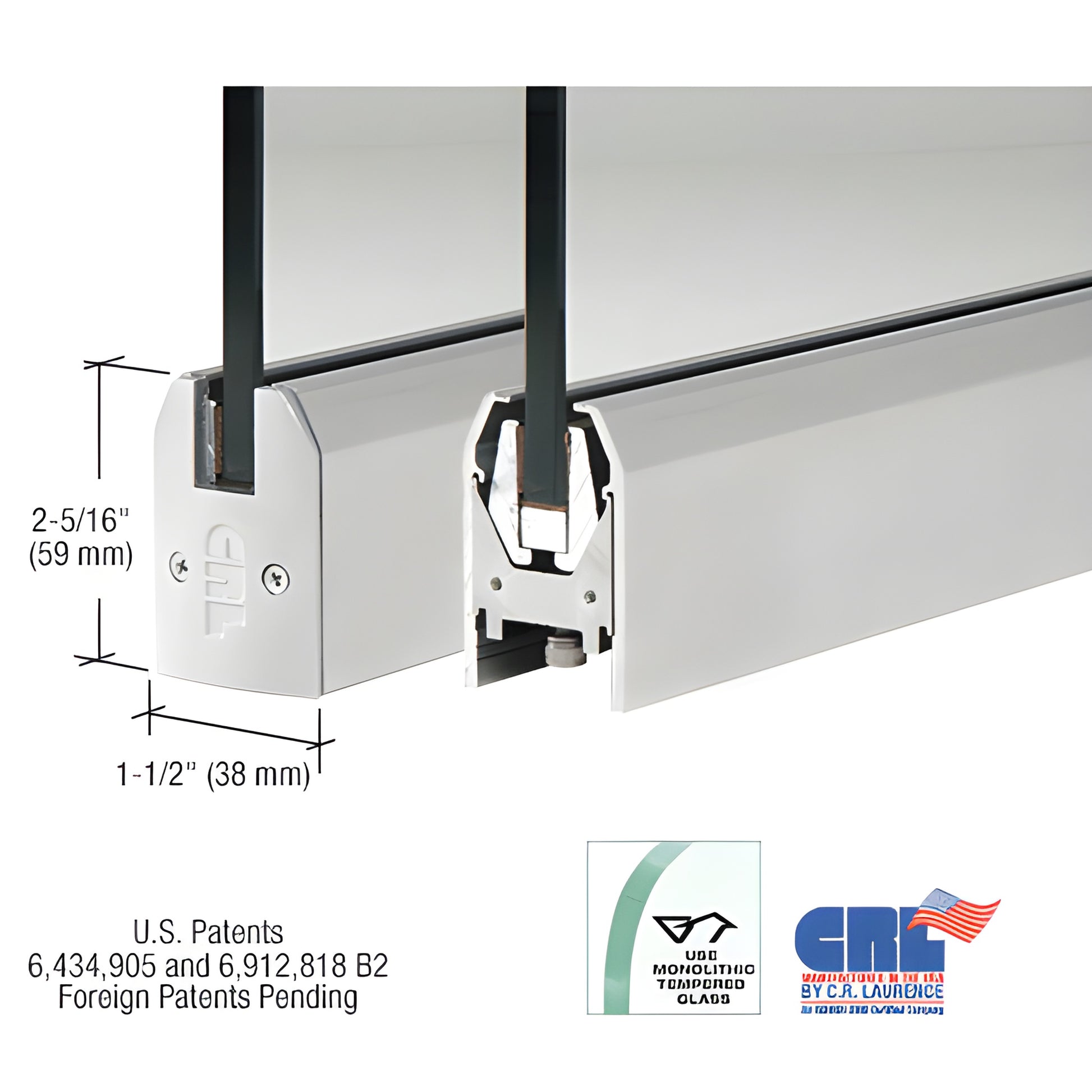

Our CRL Low Profile Door Rail (SKU DR2TSA38C) is a compact, high-performance door rail for 3/8" (10 mm) monolithic tempered glass. Measuring only 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide, it incorporates the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) for fast, secure glass attachment. Rails come complete with End Caps, installation instructions, and adjustment wrenches — ready to install out of the carton.

NOTE: Actual Product Height: 2-5/16" (59 mm)

The Wedge-Lock® system delivers one of the fastest installations in the industry: experienced installers can prepare a door in under ten minutes. After installation, attach the door arm or pivot (not included) to the preassembled adjustable door alignment slide. The Adjustable Door Alignment System provides ±1/8" (3 mm) adjustment toward or away from the jamb on both top and bottom rails without removing the door.

To fine-tune alignment after installation, remove the End Cap to access three socket head cap bolts — the center bolt secures the slide; the two outer bolts adjust the slide 1/8" (3 mm) in or out. The low-profile adjustable slide allows pivot placement other than the American Standard Setback of 2-3/4" (69.8 mm), enabling fabrication for vertically out-of-square openings.

Other benefits and design highlights:

• Models available to accept 3/8" to 3/4" (10 to 19 mm) glass
• Rigid single-component housing resists shift and long-term misalignment
• No need to remove internal components before installation
• Durable glass-securing pads designed for longevity in extreme environments
• Built-in Jamb Alignment Block standard; arms and pivots ordered separately

CRL Wedge-Lock® Door Rails are offered in several standard architectural finishes and can be quoted in custom finishes and widths. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.

ORDERING INFORMATION:
• All Door Rails are
