CRL

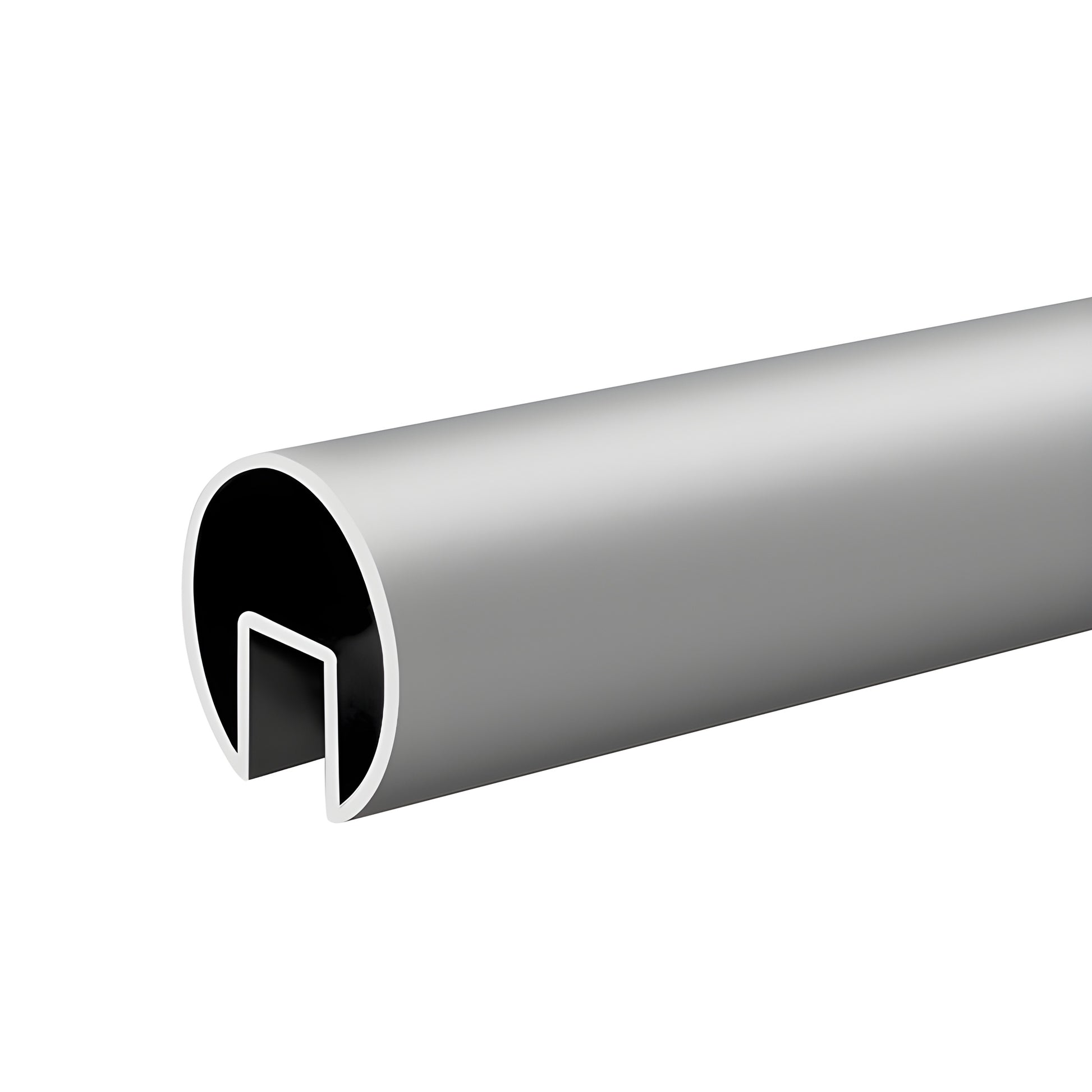

CRL Satin Anodized 3" Extruded Cap Rail for 3/4" Glass Railing 240"
CRL Satin Anodized 3" Extruded Cap Rail for 3/4" Glass Railing 240"
Regular price
$821.22 CAD
Regular price
Sale price
$821.22 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GR307SA
Shipping Weight: 50.0 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 50.0 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description

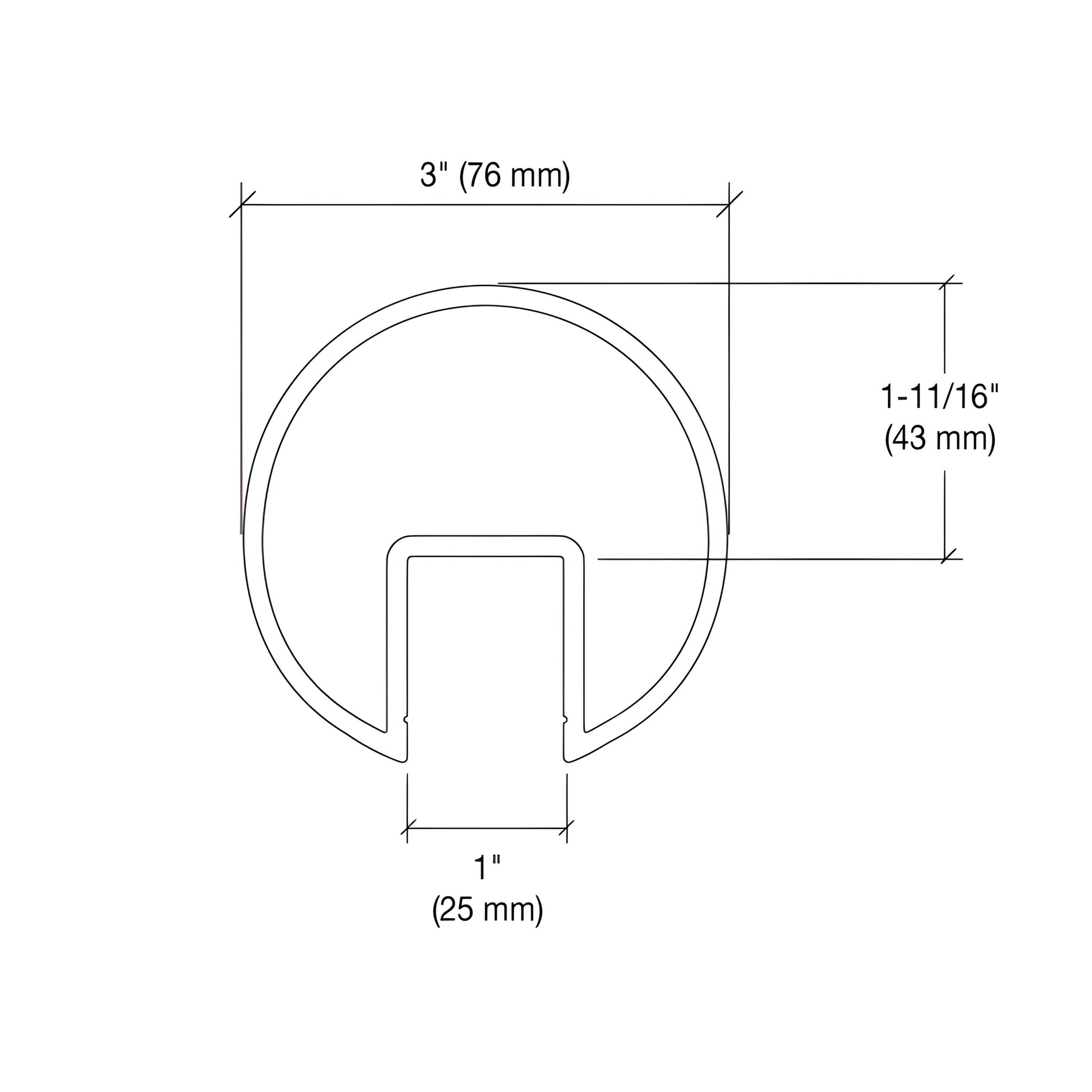

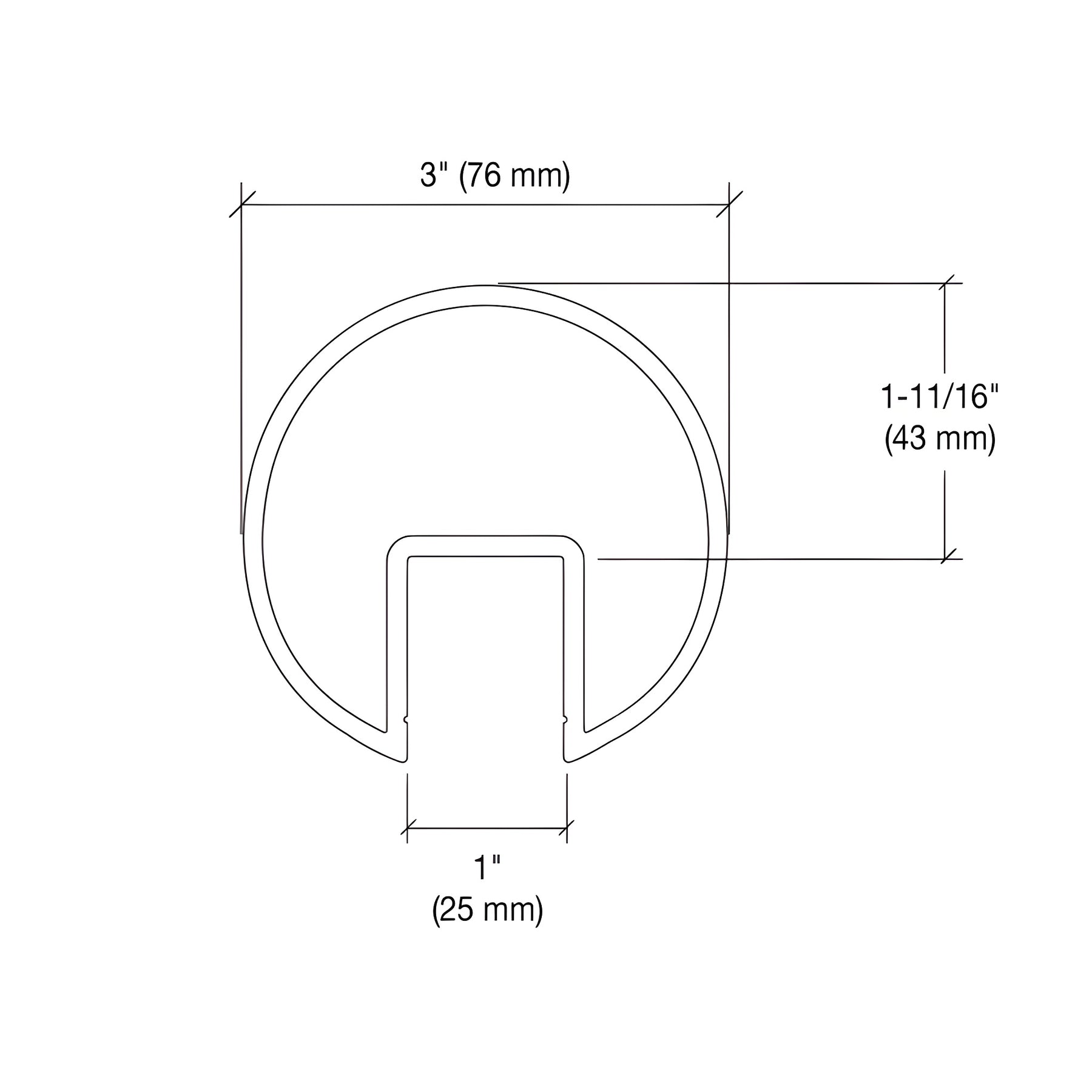

Diameter
3 in. (76 mm)
Finish/Color
Satin Anodized
Material
6063-T6 Aluminum
Thickness
.0625 in. (1.59 mm)
Overview
- Available for 1/2", 9/16" or 5/8" (12, 13.52, or 16 mm) and 3/4" (19 mm) glass
- Connects to a variety of fabricated corners and end caps
- Custom shapes and sizes available
- Use connector sleeve number GR30CSM
CRL Extruded Aluminum Cap Rails (SKU: GR307SA) are extruded from alloy 6063-T6 and accept custom finishes such as anodizing or powder coating. These cap rails are designed for glass partitions and storefront applications where a durable, finish-ready aluminum cap is required. Use CRL 32629 Metal Contact Cement to achieve a secure, permanent bond at all connections and connector sleeves to join cap rail lengths.
Please contact CRL Technical Sales for custom sizes, finish options, or a quote.
NOTE: Cat. No. GR7PV cap rail vinyl and 95CBL silicone should be used to secure 3/4" (19 mm) glass. Dimension shown is used to calculate glass size—add desired clearance or allow an additional 1/8" (3.2 mm) if using cap rail vinyl.
Call CRL Technical Sales for pricing and lead times.
Specifications
Engineering & Test Reports
