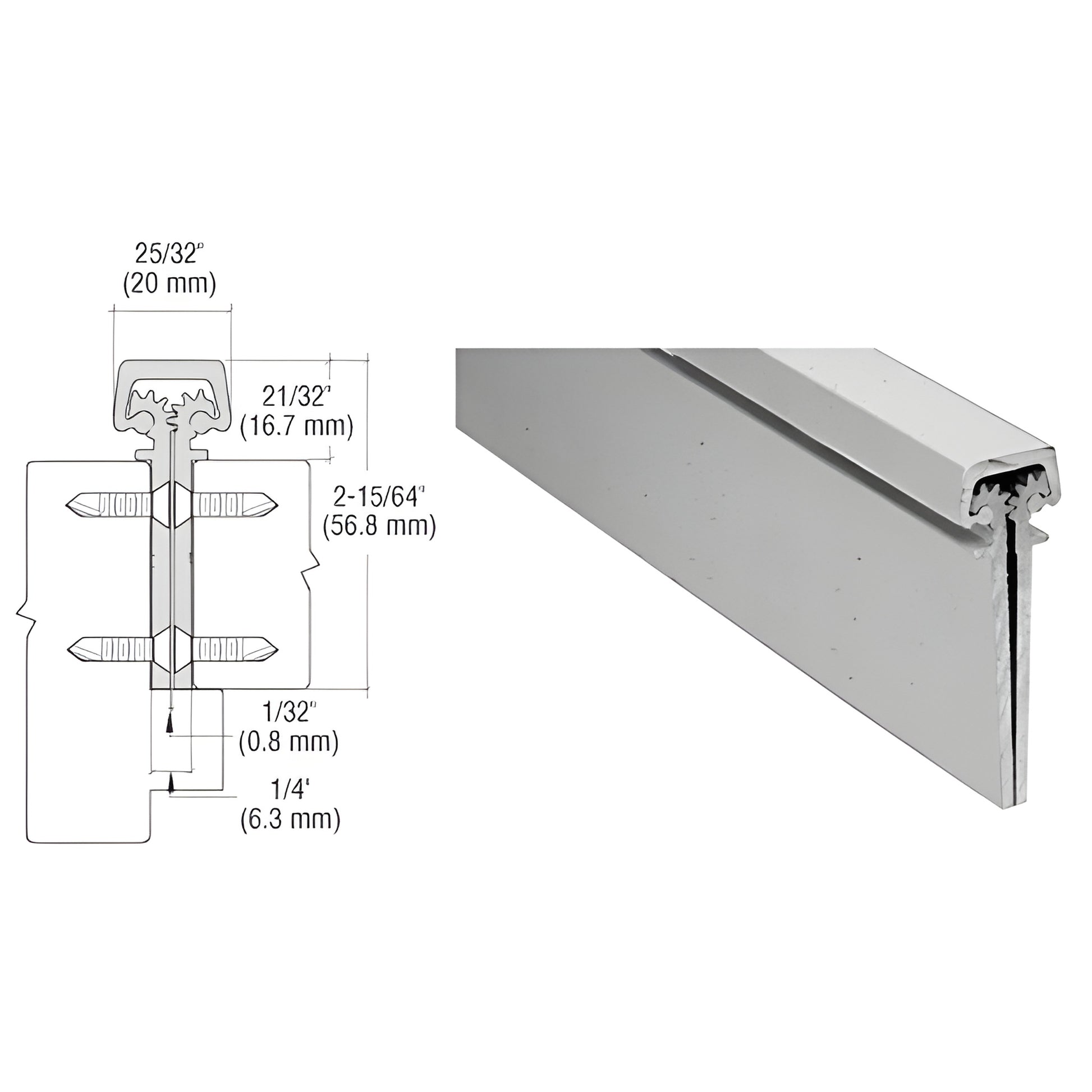

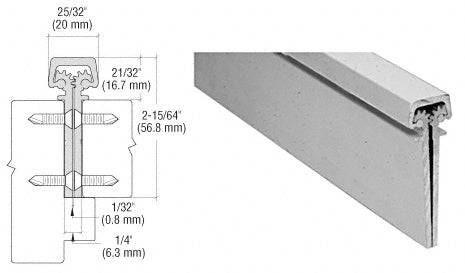

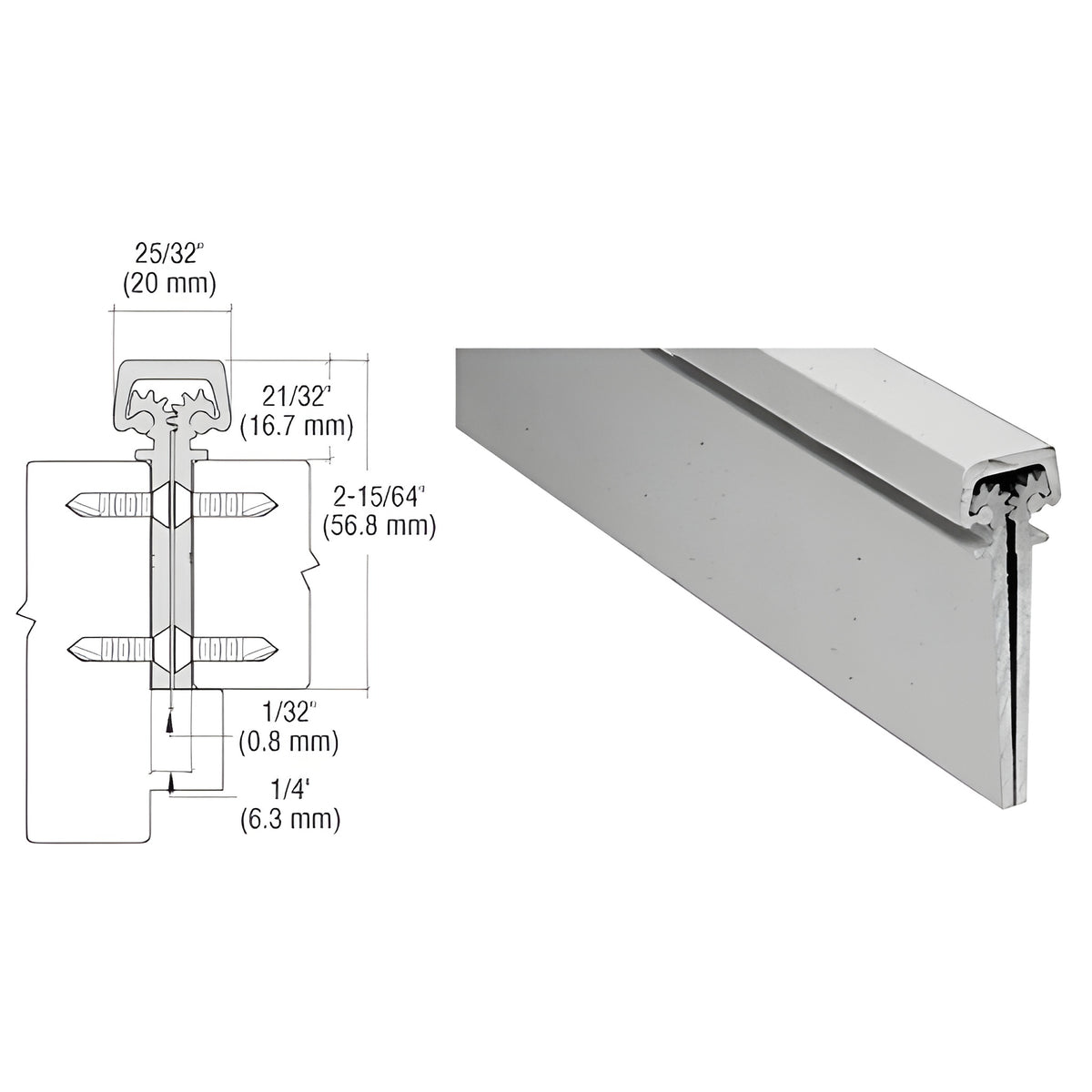

• CRL concealed leaf continuous hinge, satin anodized full-length profile with cross-section diagram and dimensions - SKU 35012
1 1

CRL

CRL 350 Series 120" Satin Anodized Concealed Continuous Door Hinge

CRL 350 Series 120" Satin Anodized Concealed Continuous Door Hinge

$421.37 CAD
$421.37 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 350120A
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Satin Anodized
Includes
Pack of Screws
Length
120 in. (3048 mm)
Maximum Door Weight
600 lbs. (272.2 kg)
Replacement Screw Pack
RSP300A
Series
350
Width
2-15/64 in. (56.8 mm)

Overview

  • Standard Duty concealed leaf continuous hinges for doors up to 200 lbs (90 kg)
  • Heavy-Duty concealed leaf continuous hinges for doors up to 600 lbs (272 kg)
  • Available in Satin Anodized and Dark Bronze Anodized finishes; stocked in 83" (2.11 m) lengths

These CRL Concealed Leaf Continuous Hinges feature load-bearing blocks spaced every 5-1/8" (130.2 mm) on the Standard Duty model and every 2-9/16" (65.1 mm) on the Heavy-Duty model for reliable, even weight distribution. Ideal for commercial and residential applications requiring full-length continuous support, the hinges are stocked in 83" (2.11 m) lengths and include a pack of installation screws; replacement screw packs are available separately. SKU: 350120A.
