CRL 350 Series 83" Satin Anodized HD Concealed Continuous Hinge
CRL 350 Series 83" Satin Anodized HD Concealed Continuous Hinge
Regular price
$259.73 CAD
Regular price
Sale price
$259.73 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 35083A
Shipping Weight: 7.7 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 7.7 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Satin Anodized
Includes
Pack of Screws
Length
83 in. (2108.2 mm)
Maximum Door Weight
600 lbs. (272.2 kg)
Replacement Screw Pack
RSP300A
Series
350
Width
2-15/64 in. (56.8 mm)
Overview
- Standard Duty concealed continuous hinge for doors up to 200 lbs (90 kg)
- Heavy‑Duty concealed continuous hinge for doors up to 600 lbs (272 kg)
- Available in Satin Anodized and Dark Bronze Anodized finishes; stocked in 83" (2.11 m) lengths

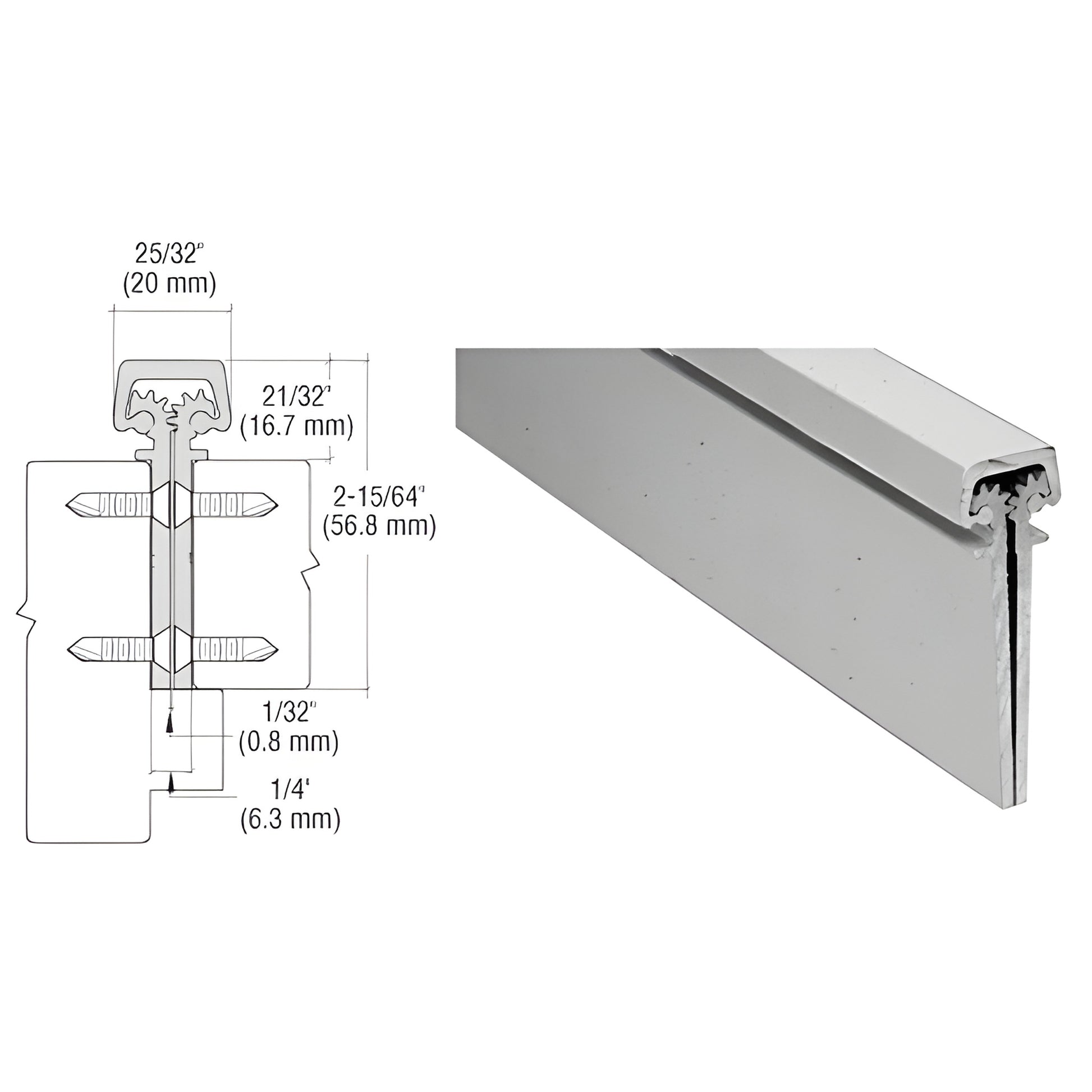

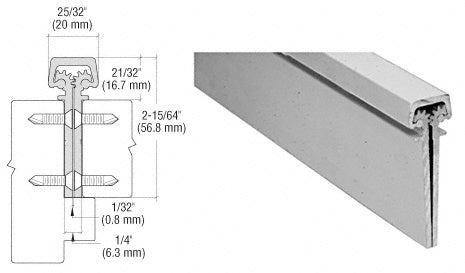

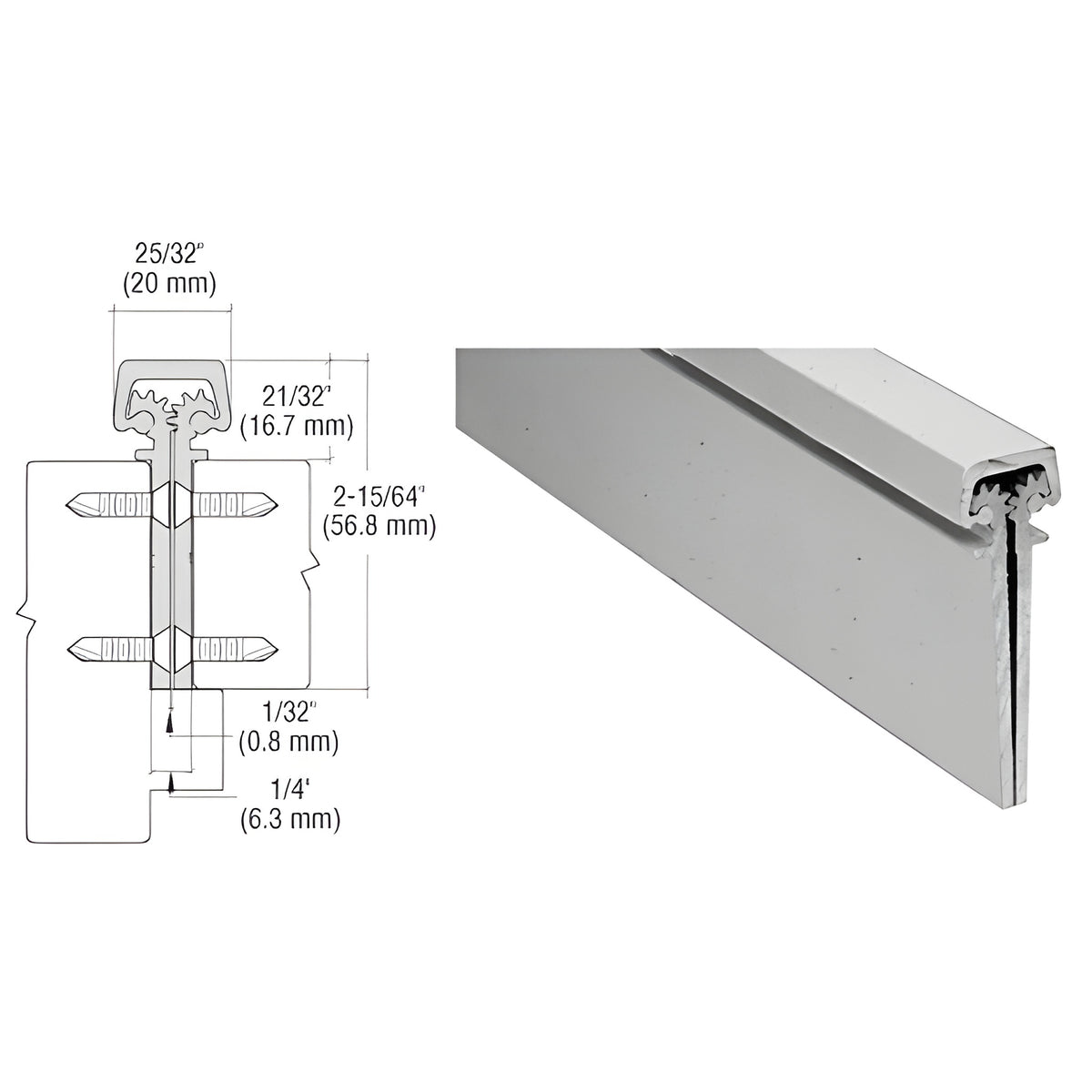

These CRL Concealed Leaf Continuous Hinges (SKU: 35083A) feature load‑bearing blocks spaced every 5‑1/8" (130.2 mm) on the Standard Duty model and every 2‑9/16" (65.1 mm) on the Heavy‑Duty model. Ideal for heavy doors and commercial applications, these 83‑inch concealed continuous hinges provide smooth, full‑length support and reduce sag and wear. Each hinge ships with an installation screw pack; replacement screw packs are available separately.
