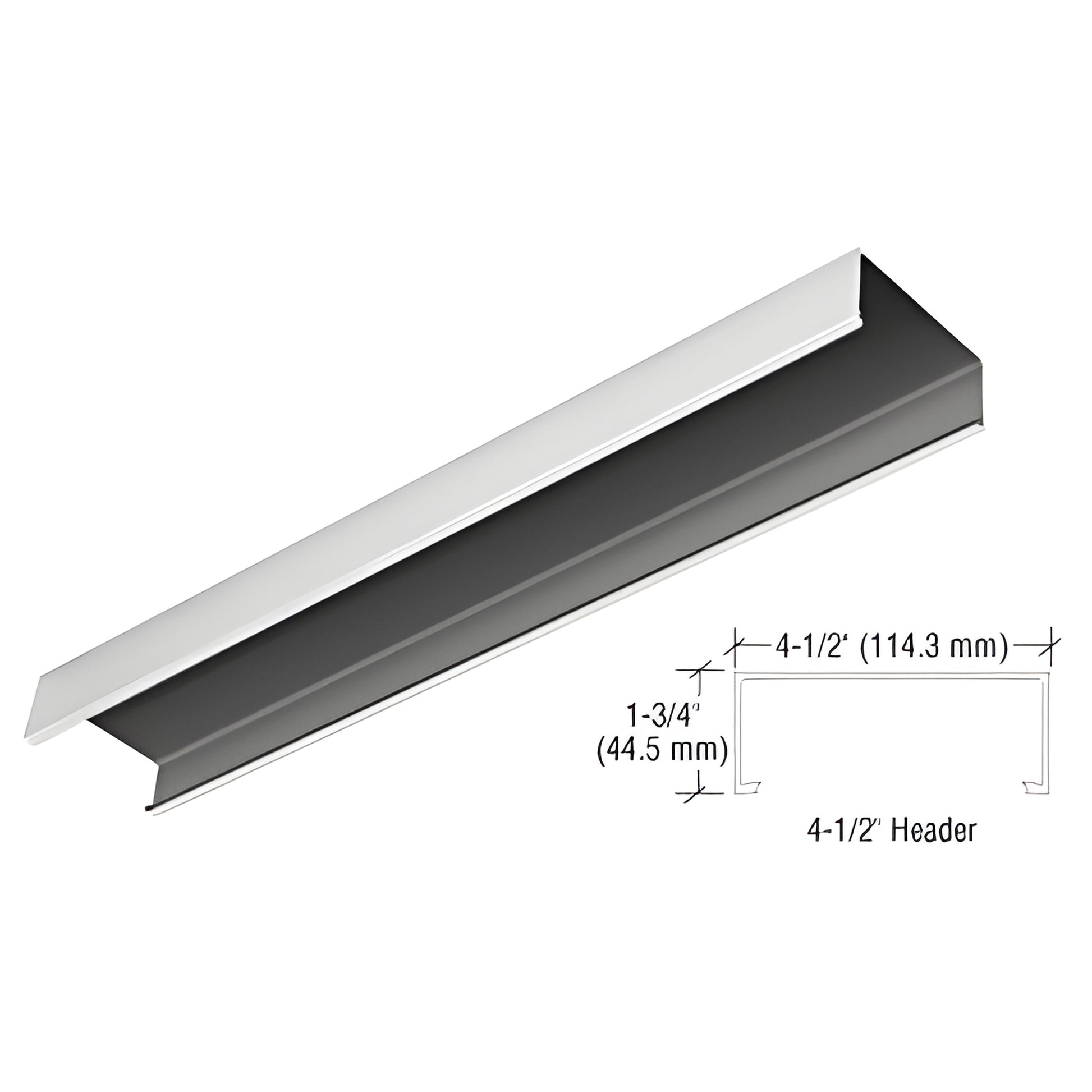

CRL Satin Anodized 4-1/2" Aluminum Header Channel 120" for glass door
Item# HCSA120
Shipping Weight: 11.77 Pounds
Shipping Limitations: Requires Cutting Instructions for UPS
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.77 Pounds
Shipping Limitations: Requires Cutting Instructions for UPS
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Satin Anodized
Height
1-3/4 in. (44 mm)
Length
120 in. (3048 mm)
Width
4-1/2 in. (114 mm)
- Available in 1-3/4" x 4" and 1-3/4" x 4-1/2" sizes
- Stock lengths: 120" and 240" (3.05 and 6.10 m) in Satin Anodized and Black Bronze Anodized finishes
- Custom finishes available on special order
- Ready-to-ship from CRL inventory
CRL stocks header components for overhead concealed door closers, including Header Channel, Flat Snap-In, Cover Plate, and Glazing Pocket Snap-In in both 1-3/4" x 4" and 1-3/4" x 4-1/2" sizes. The Snap-In includes a Roll-In Glazing Gasket for 1/2" (12 mm) glass; for 3/8" (10 mm) glass order the GG38 Series Gasket separately. For ordering assistance or custom finishes, contact Technical Sales. SKU: HCSA120.
Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary depending on monitor settings.
Order HCSA120 today or contact CRL Technical Sales for custom finishes and cut-to-size options.
