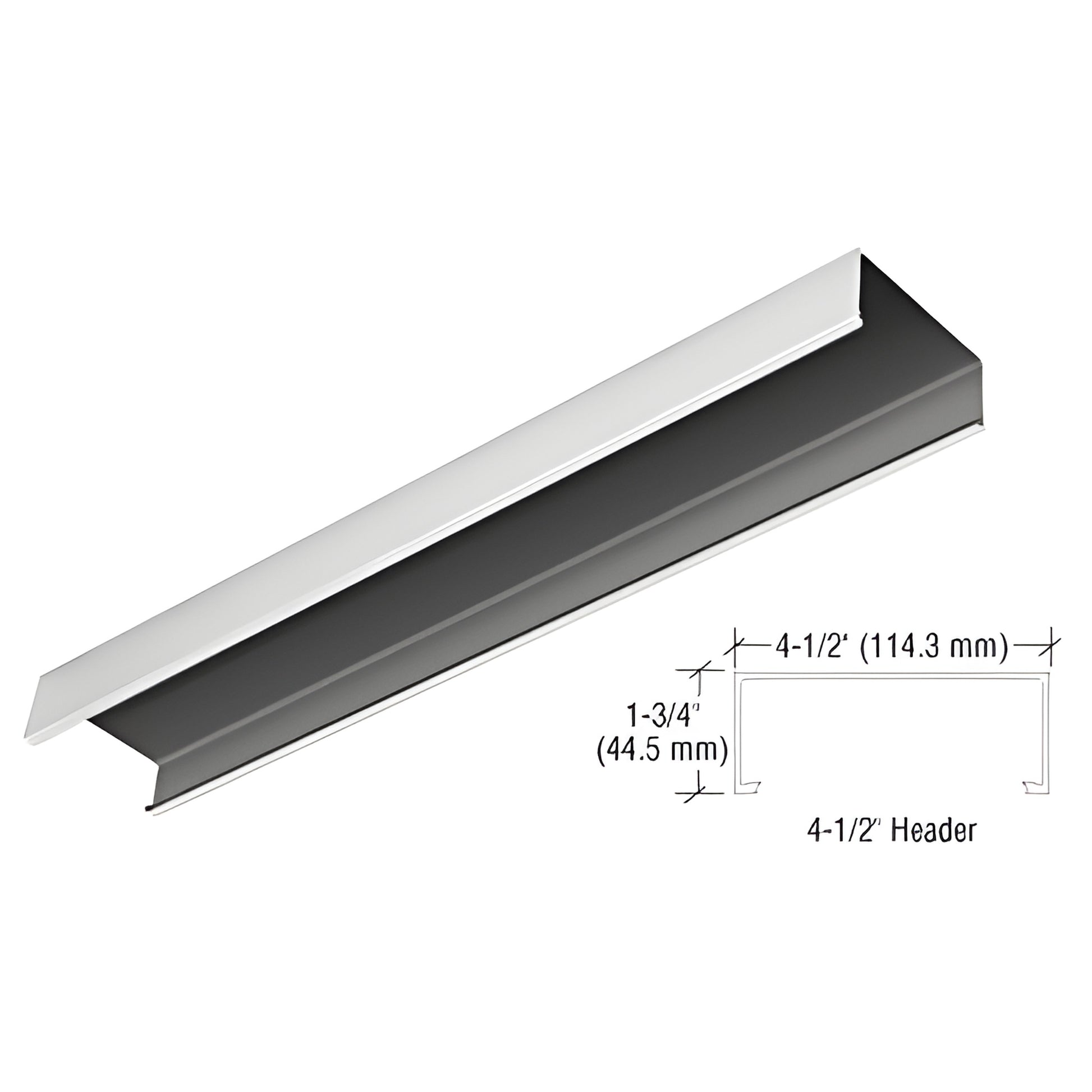

CRL Satin Anodized Aluminum Header Channel 4-1/2in x 240in

• Available sizes: 1-3/4" x 4" and 1-3/4" x 4-1/2"
• Stock lengths: 120" and 240" (3.05 and 6.10 m) — two architectural finishes: Satin Anodized and Black Bronze Anodized
• Custom finishes available on special order
• Ready-to-ship from CRL inventory

CRL stocks header components for overhead concealed door closers, including Header Channel, Flat Snap-In, Cover Plate and Glazing Pocket Snap-In in both 1-3/4" x 4" and 1-3/4" x 4-1/2" sizes. The Snap-In ships complete with Roll-In Glazing Gasket for 1/2" (12 mm) glass; for 3/8" (10 mm) glass order the GG38 Series Gasket separately. Ideal for commercial storefronts and architectural glass door installations, these header channels offer durable anodized finishes and ready-to-ship lengths to speed project timelines. For ordering assistance, contact Technical Sales. SKU: HCSA240.

Product Warning:
Stock lengths must ship via common carrier unless specifically cut for UPS shipment.

Need help selecting the right header channel or finish? Contact CRL Technical Sales to confirm specifications and lead time — order HCSA240 today to keep your project on schedule.
