CRL 4" Satin Anodized Aluminum Mounting Bracket

• Available in Five Finishes
• Five Lengths: 4", 6", 8", 10", and 12" (102, 152, 203, 254, and 305 mm)
• Compatible with CRL Series 22 and Series 322 Aluminum Standards

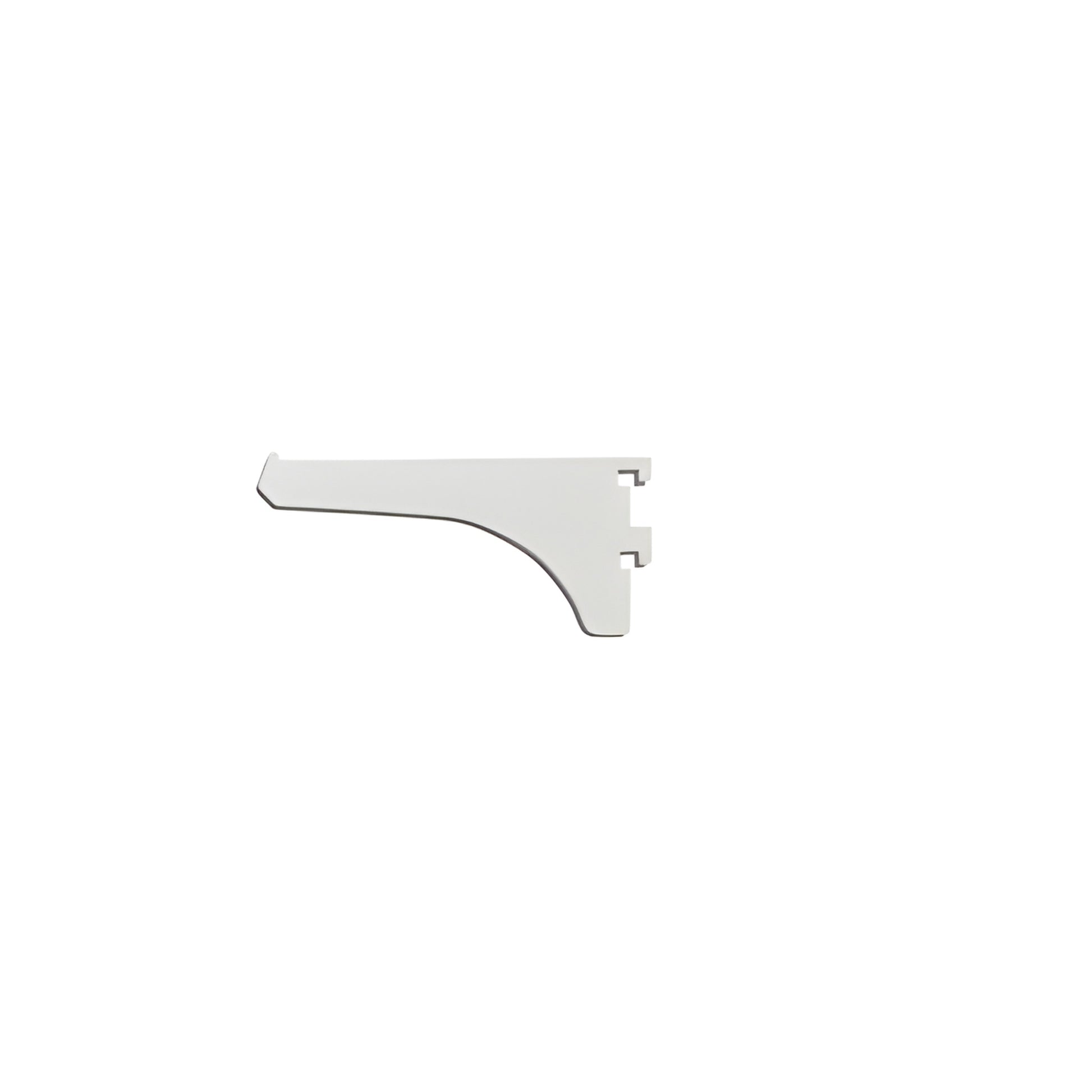

CRL Aluminum Brackets (SKU: 122A4) — hidden-slot aluminum shelf brackets designed for use with Series 22 and Series 322 aluminum standards. These brackets have no back flange and simply slip into the standard's hidden slot, then are secured by tapping the bracket down. Ideal for adjustable glass or wood shelving where a low-profile, concealed support is required.

Aluminum Bracket Weight Capacities
(Based on two standards mounted 16" / 406 mm apart with fasteners into wall studs):
4" (102 mm) = 75 lb (34 kg)
6" (152 mm) = 65 lb (29 kg)
8" (203 mm) = 55 lb (25 kg)
10" (254 mm) = 45 lb (20 kg)
12" (305 mm) = 35 lb (16 kg)

Product Warning
These aluminum brackets are not interchangeable with steel standards or bracket systems from other manufacturers. When installing with glass shelving, deduct 1/16" from the glass depth to ensure proper fit.

Shop CRL hidden-slot aluminum shelf brackets (SKU 122A4) for a clean, low-profile shelving solution — add to cart or contact us for bulk pricing.
