CRL Satin Anodized 4" Tapered Sidelite Rail
CRL Satin Anodized 4" Tapered Sidelite Rail
Regular price
$789.04 CAD
Regular price
Sale price
$789.04 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SR4TSA34SL
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Satin Anodized |
| Floor Mount Saddle Included FMS | 3SA |
| Glazing Thickness | 3/4 in. (19 mm) |
| Height 4 in. | (102 mm) |
| Width 2-1/8 in. | (54 mm) |
Overview

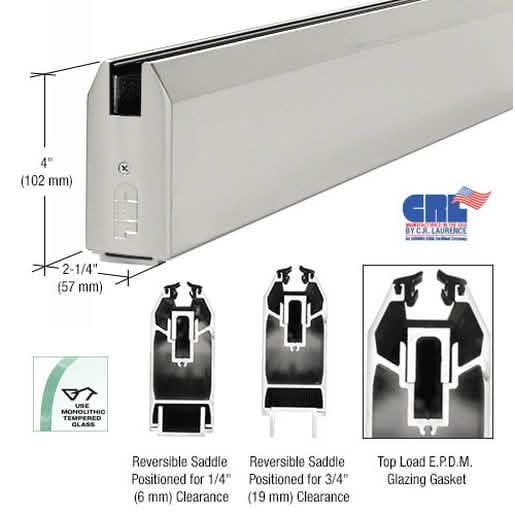

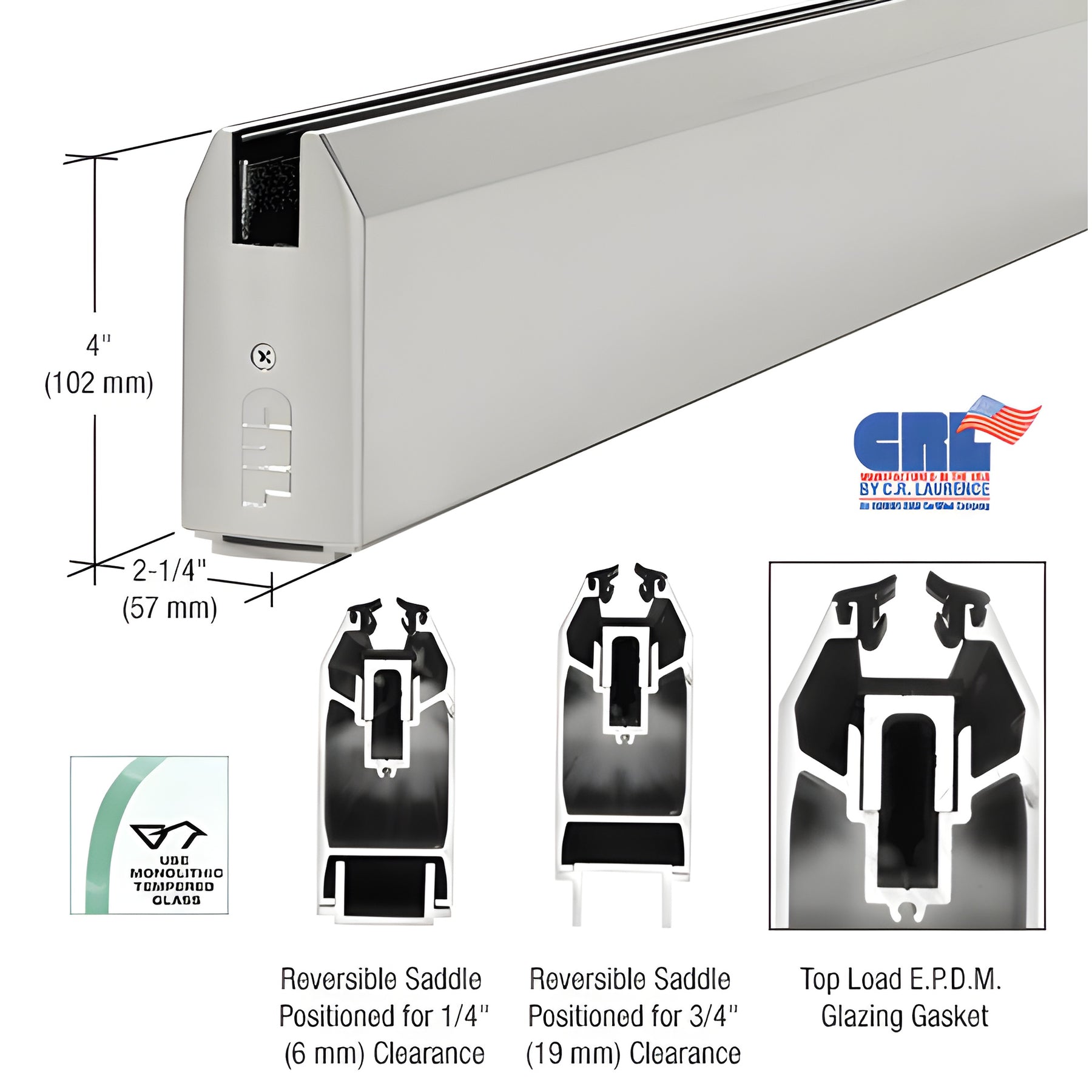

The CRL 4" (102 mm) Tapered Sidelite Rail is an ideal solution for office and storefront applications, offering secure installation for fixed glass panels.
Designed to match our Door Rails, these Sidelite Rails ensure a seamless and uniform appearance, whether used on top, bottom, or with smaller U-Channels.
Featuring a 'lift and drop' installation method, the glass is effortlessly secured with our Aluminum and Neoprene Setting Blocks and a Top Load EPDM Roll-in Glazing Gasket, eliminating the need for silicone sealant.
Available in various finishes and lengths, including 120" (3.05 m) and 240" (6.10 m), these Sidelite Rails are perfect for floor-mounted and 1/2" (13 mm) threshold doors, providing a 9/16" (14 mm) glass retention.
For a complete installation, order vinyl for 3/4" (19 mm) glass, or separately for 5/8" (16 mm) glass, along with the necessary EPDM Gaskets and End Caps.
Designed to match our Door Rails, these Sidelite Rails ensure a seamless and uniform appearance, whether used on top, bottom, or with smaller U-Channels.
Featuring a 'lift and drop' installation method, the glass is effortlessly secured with our Aluminum and Neoprene Setting Blocks and a Top Load EPDM Roll-in Glazing Gasket, eliminating the need for silicone sealant.
Available in various finishes and lengths, including 120" (3.05 m) and 240" (6.10 m), these Sidelite Rails are perfect for floor-mounted and 1/2" (13 mm) threshold doors, providing a 9/16" (14 mm) glass retention.
For a complete installation, order vinyl for 3/4" (19 mm) glass, or separately for 5/8" (16 mm) glass, along with the necessary EPDM Gaskets and End Caps.
