CRL Satin Anodized 4" x 120" Length Square Sidelite Rail for 3/4" Glass

CRL Satin Anodized 4" x 120" Length Square Sidelite Rail for 3/4" Glass

$1,211.42 CAD
$1,211.42 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# SR4SSA34SL
Shipping Weight: 33.85 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
View full details

Product Information

Description

Finish/ColorSatin Anodized
Floor Mount Saddle Included FMS3SA
Glazing Thickness3/4 in. (19 mm)
Height 4 in.(102 mm)
Width 1-9/16 in.(40 mm)

Overview

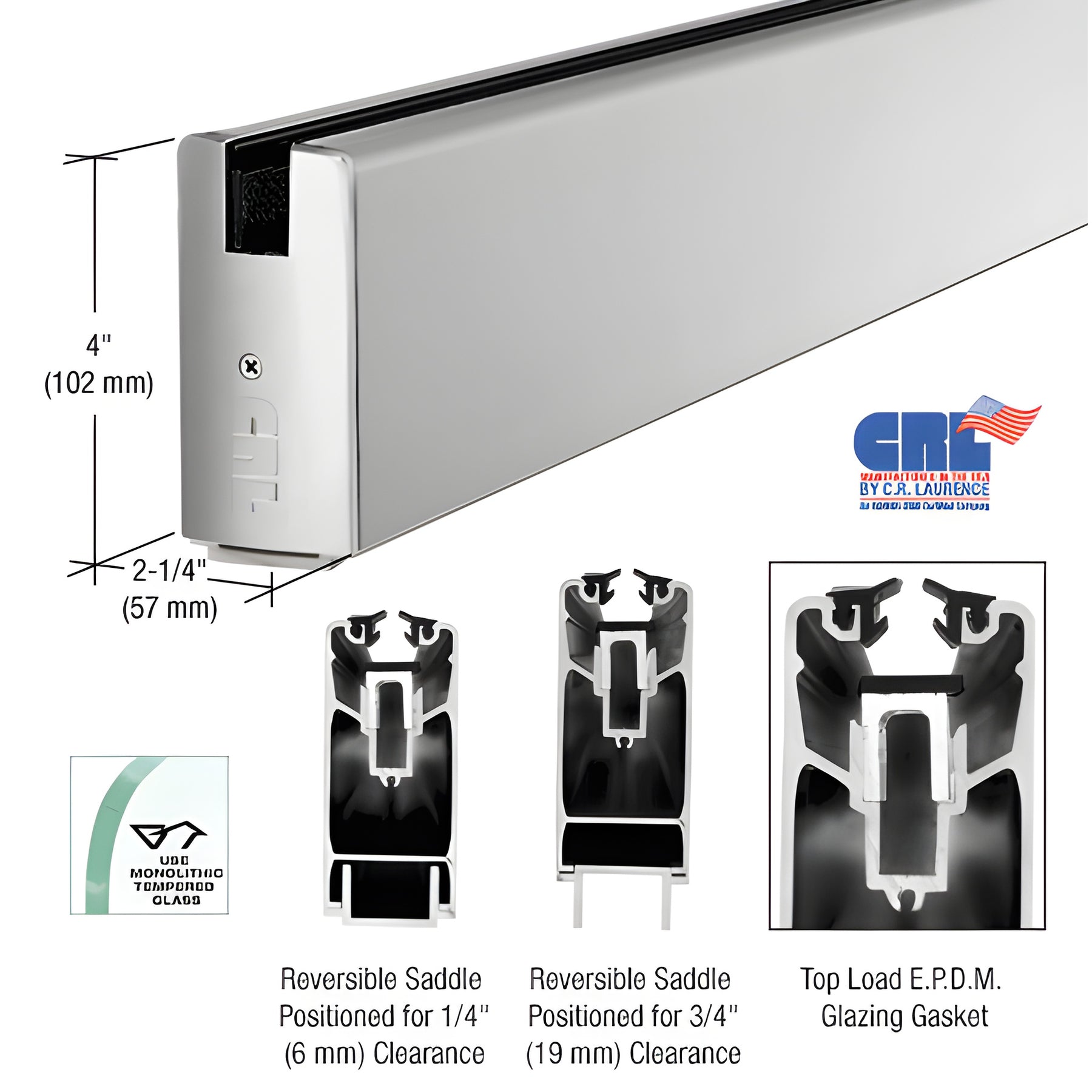

The CRL 4" (102 mm) Square Sidelite Rail is ideal for securing fixed glass panels in office and storefront settings, offering a seamless look with matching Door Rails and U-Channels.
This versatile product features a reversible extruded saddle, ensuring compatibility with 1/4" or 3/4" (6 or 19 mm) door clearances, and is available in multiple finishes and lengths.
The easy installation process involves a 'lift and drop' method using Aluminum Neoprene Setting Blocks, providing a 9/16" (14.3 mm) glass retention for a sleek, professional finish.
For a complete setup, pair with our Roll-In EPDM Gaskets and matching finish End Caps, available in both standard and custom lengths and finishes.
