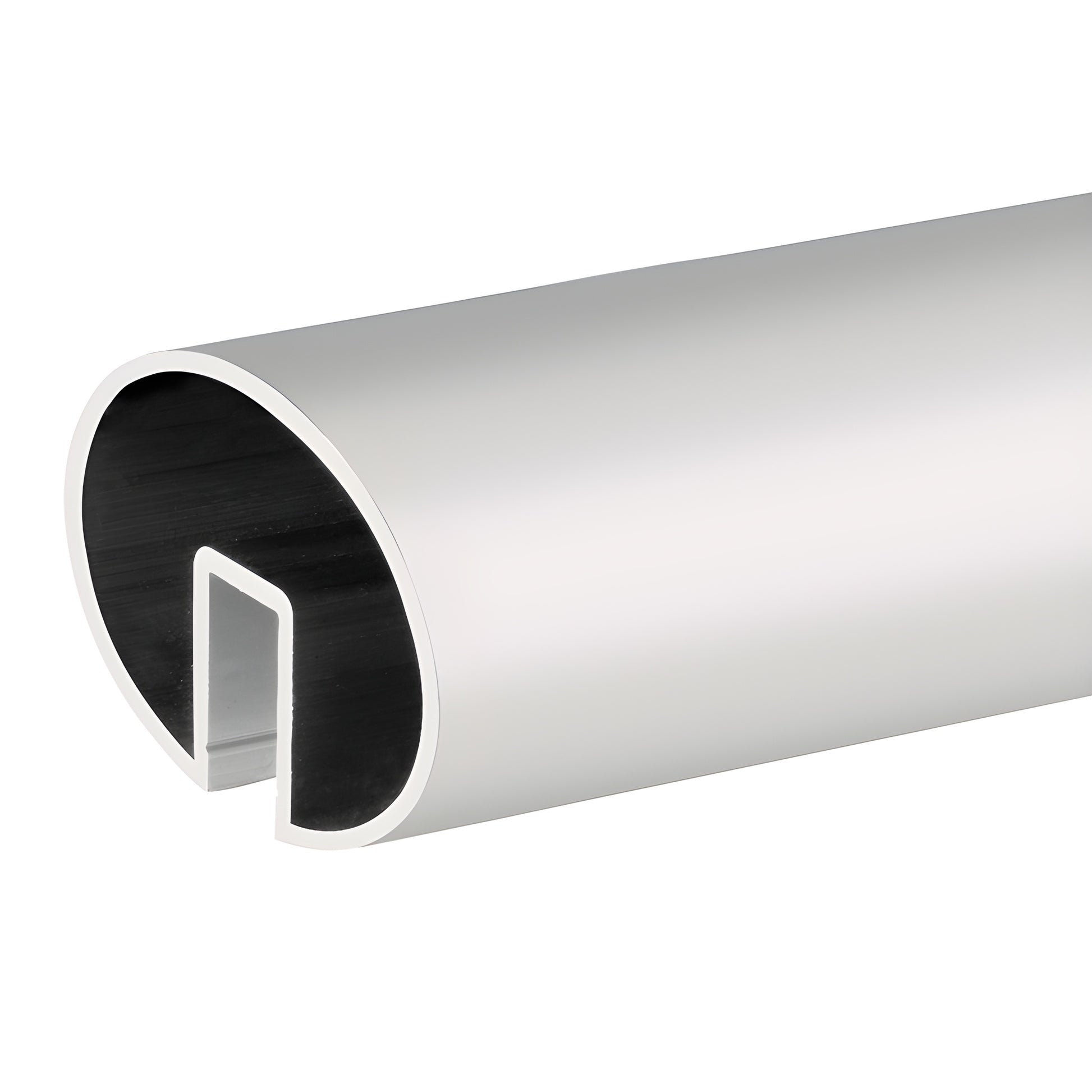

CRL Satin Anodized 4" x 2-1/2" Oval Extruded Aluminum Cap Rail for 1/2" or 5/8” Glass

• Available for 1/2", 9/16" and 5/8" (12, 13.52, or 16 mm) Glass
• Connects to a Variety of Fabricated Corners and End Caps
• Custom Shapes and Sizes are Available
• Use Sleeve Number GR0V4CSM

CRL Extruded Aluminum Cap Rails

are extruded from alloy 6063-T6, which is suitable for custom finishes such as anodizing, powder coating, etc. Use of our 32629 Metal Contact Cement is required to achieve a secure and permanent bond at all connections. Use Connector Sleeves to connect Cap Rails.

Please contact

CRL Technical Sales

for more information or a quote.

Cat. No. GR5PV Cap Rail Vinyl and 95CBL Silicone should be used to secure 1/2" (12 mm) glass; Cat. No. LR56PV Cap Rail Rubber Insert and 95CBL should be used to secure 9/16" (13.52 mm) laminated glass; Cat. No. 95CBL Silicone and shims should be used to secure 5/8" (16 mm) glass.

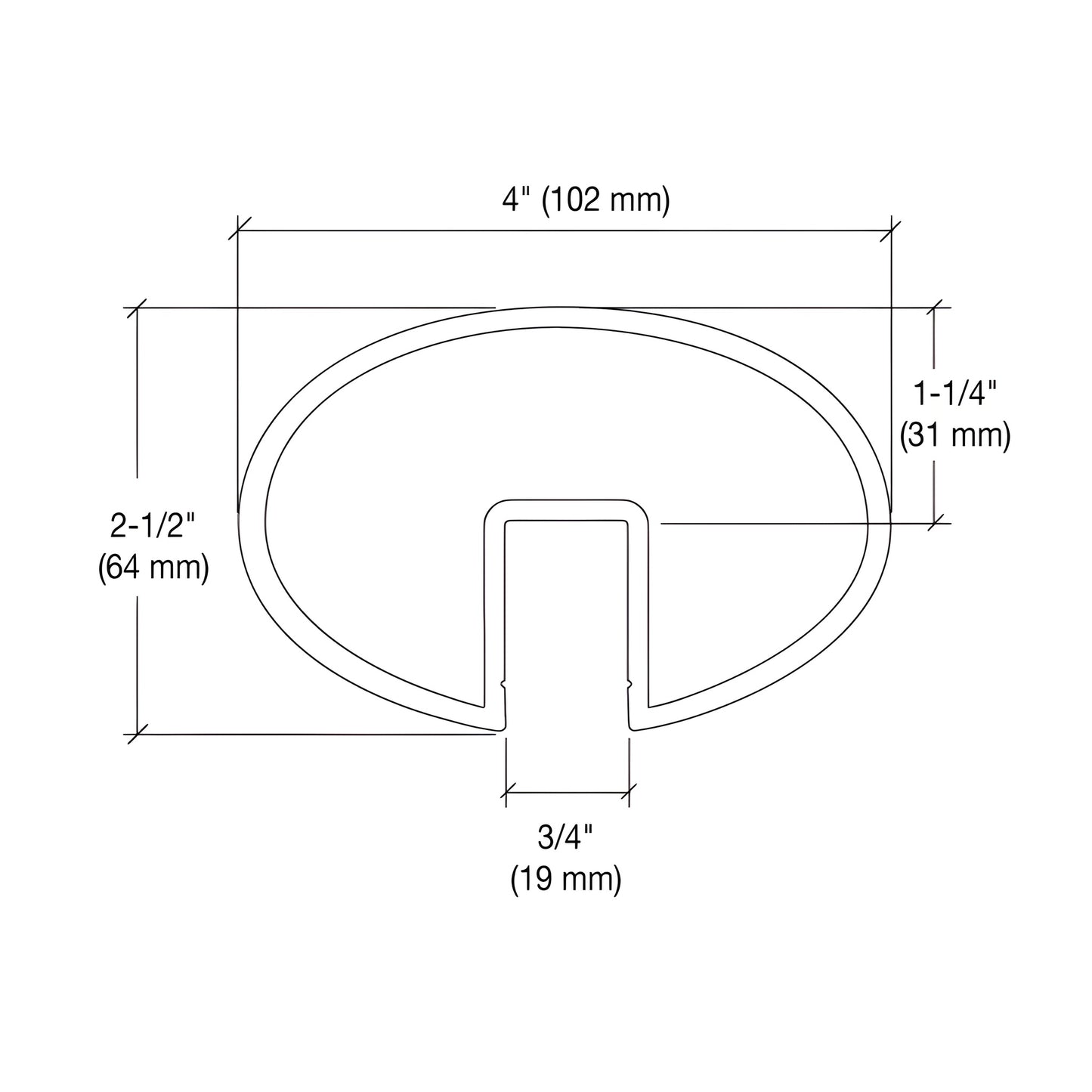

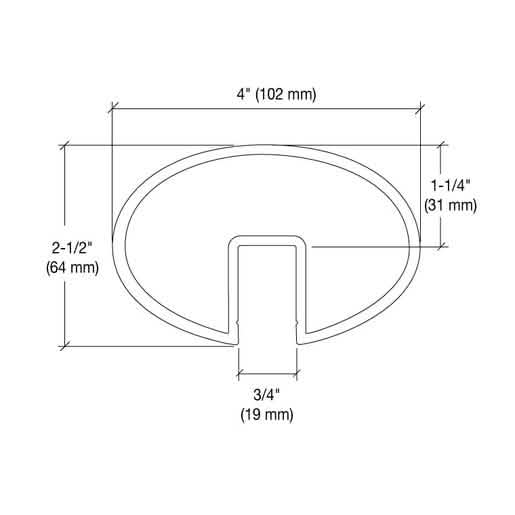

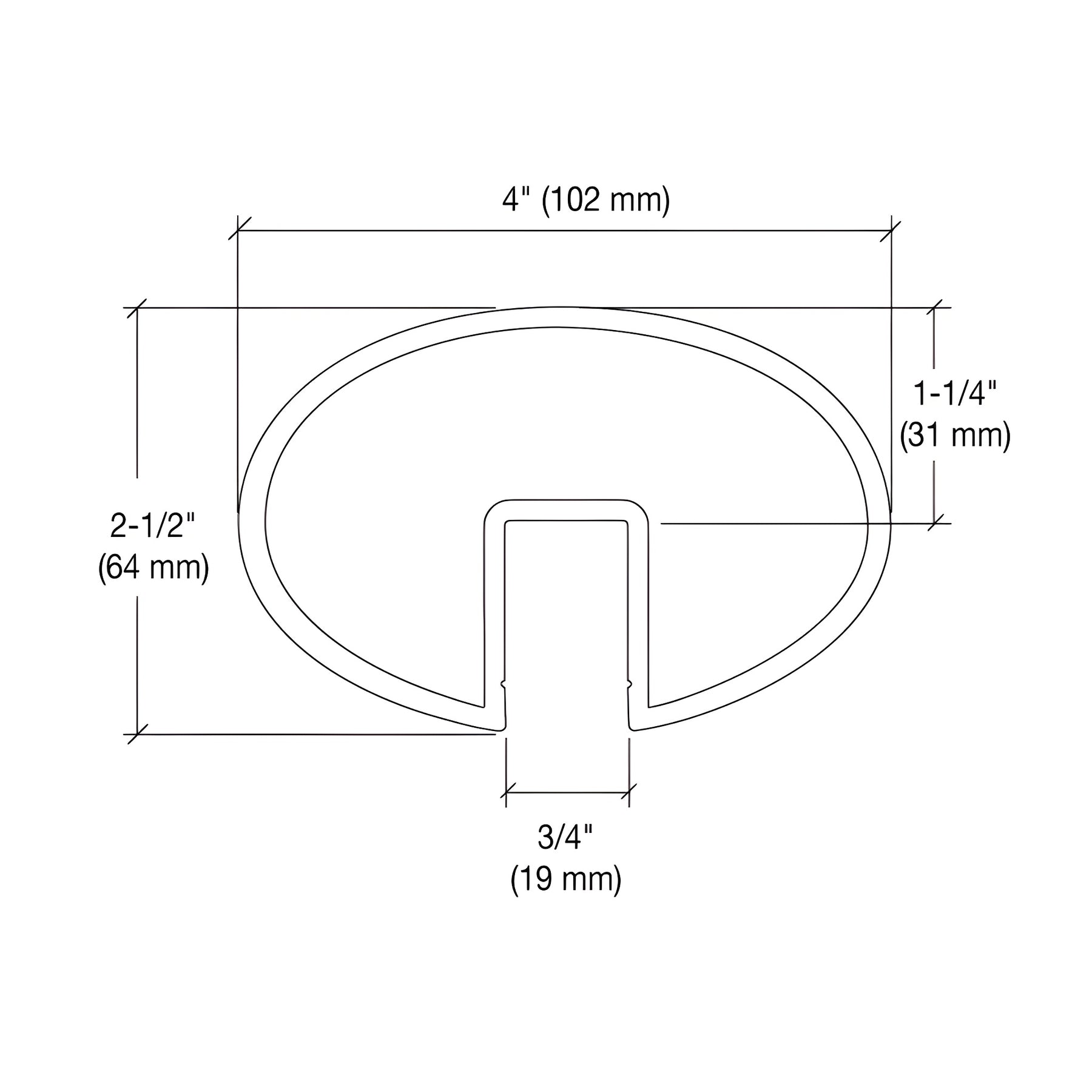

This dimension is used to calculate the glass size. Add the clearance you desire or allow an additional 1/8" (3.2 mm) if using Cap Rail Vinyl.
