CRL Satin Anodized 4" x 240" Length Square Sidelite Rail
CRL Satin Anodized 4" x 240" Length Square Sidelite Rail
Regular price
$1,403.41 CAD
Regular price
Sale price
$1,403.41 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SR4SSA3812240
Shipping Weight: 51.5 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 51.5 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Satin Anodized |
| Floor Mount Saddle Included FMS | 2SA |
| Glazing Thickness | 3/8 in. (10 mm) |
| Height 4 in. | (102 mm) |
| Width 1-9/16 in. | (40 mm) |
Overview

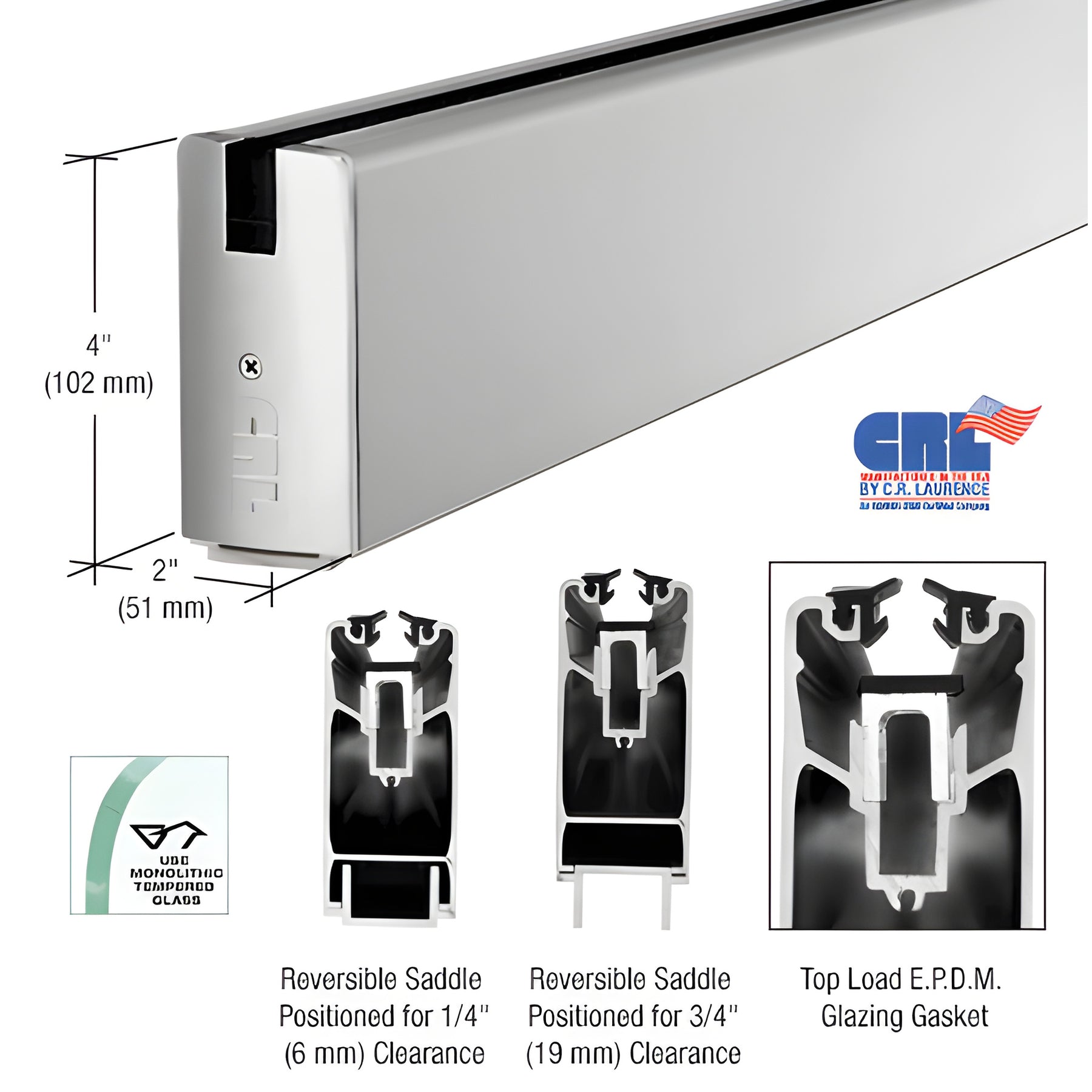

The CRL 4" Square Sidelite Rail is an ideal solution for securing fixed glass panels in office and storefront settings.
Its reversible extruded saddle accommodates both 1/4" and 3/4" door clearances, ensuring an even sightline with our matching door rails.
Designed for easy installation, these sidelites utilize a 'lift and drop' method with our Aluminum and Neoprene Setting Blocks, complemented by a Top Load EPDM Roll-in Glazing Gasket to eliminate silicone sealant mess.
Available in various finishes and lengths, these rails match floor-mounted and 1/2" threshold doors, offering versatility in design.
Custom lengths and finishes are available, and accessories like End Caps and Setting Blocks must be ordered separately.
For accurate shipping costs, please contact CRL Customer Service before ordering.
Its reversible extruded saddle accommodates both 1/4" and 3/4" door clearances, ensuring an even sightline with our matching door rails.
Designed for easy installation, these sidelites utilize a 'lift and drop' method with our Aluminum and Neoprene Setting Blocks, complemented by a Top Load EPDM Roll-in Glazing Gasket to eliminate silicone sealant mess.
Available in various finishes and lengths, these rails match floor-mounted and 1/2" threshold doors, offering versatility in design.
Custom lengths and finishes are available, and accessories like End Caps and Setting Blocks must be ordered separately.
For accurate shipping costs, please contact CRL Customer Service before ordering.
