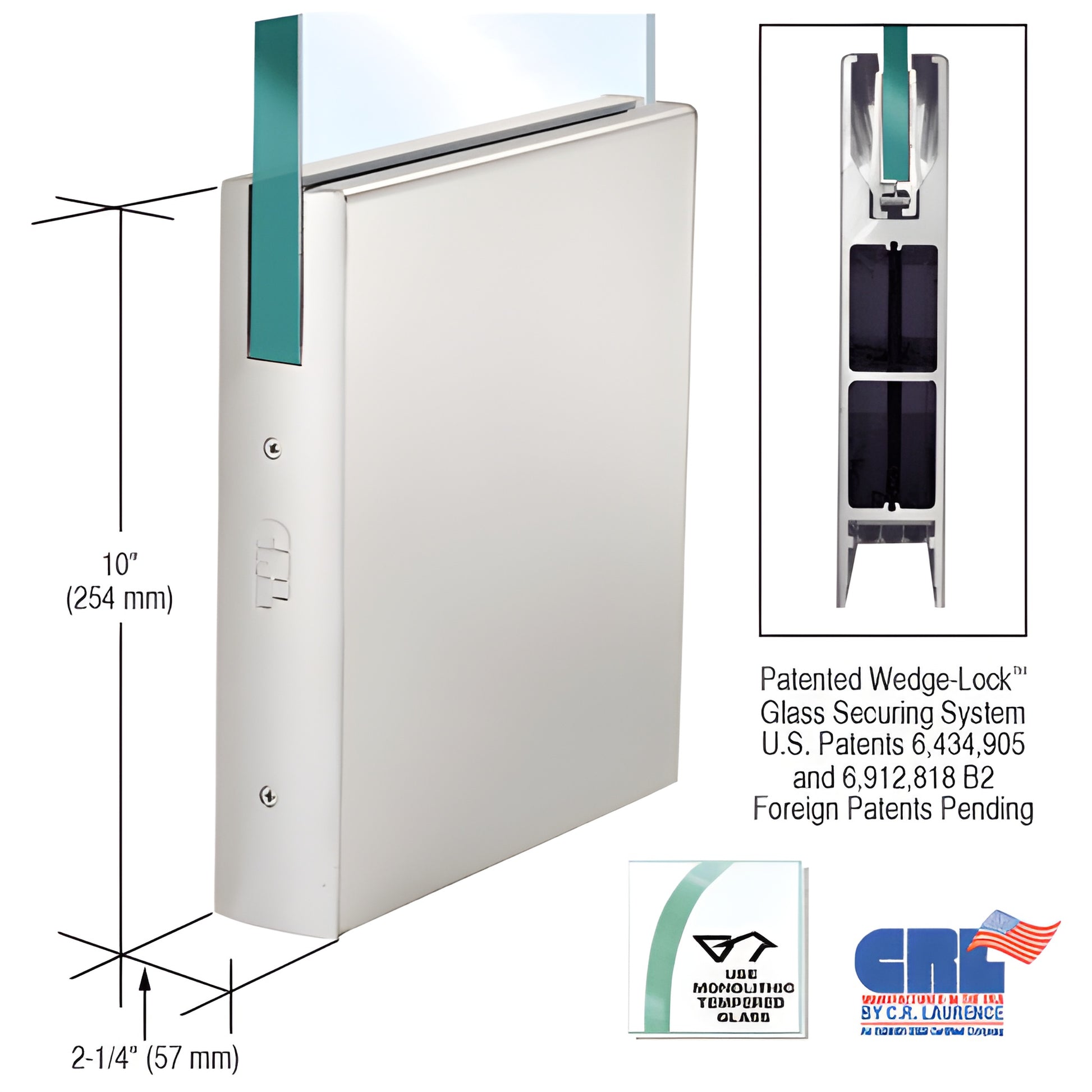

CRL Satin Anodized 10in Square Glass Door Rail 5/8in - Custom No Lock

• Custom Length for 5/8" (16 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to Fit from 1/2" to 3/4" (12 to 19 mm) Glass
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR10SSA58C), uses the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Designed for glass doors and storefronts, this Wedge-Lock door rail system secures monolithic tempered glass by applying downward pressure via two aluminum glass-retaining extrusions and a flat stainless steel bar. As the bar is tightened with socket head cap bolts, angled extrusions engage the door rail groove and produce extremely high clamping force—over 900 lbs. in the 9" corner rail—ensuring reliable, long-term glass retention for 5/8" (16 mm) panels and other compatible glass thicknesses.

NOTE: Actual product height: 10" (254 mm)

The Wedge-Lock® Glass Securing System speeds installation: experienced installers can prepare a door in under ten minutes. Rails ship completely fabricated and ready-to-install with end caps installed. After rail installation, attach the door arm or pivot (not included) to the preassembled adjustable door alignment slide. The adjustable alignment slide (standard on both top and bottom rails) allows ±1/8" (3 mm) adjustment toward or away from the jamb without removing the door—ideal for out-of-square openings.

To adjust after installation, remove the end cap to access three socket head cap bolts: the center bolt secures the slide; the two outer bolts provide the 1/8" (3 mm) in/out adjustment. The low-profile slide lets pivots with slotted grooves be positioned off the American Standard setback (2-3/4" / 69.8 mm) when required.

Other Wedge-Lock® advantages for glass door projects:

• Accepts 3/8" to 3/4" (10 to 19 mm) glass models
• Rigid one-piece housing that resists shifting and loss of adjustment
• Internal components remain installed during fitting—no removal required
• Durable glass securing pads formulated for extreme environments

NOTE: All Wedge-Lock® Door Rails include the built-in jamb alignment block. Arms and pivots must be ordered separately to meet job requirements.

Finishes: available in several standard architectural finishes; custom finishes and widths
