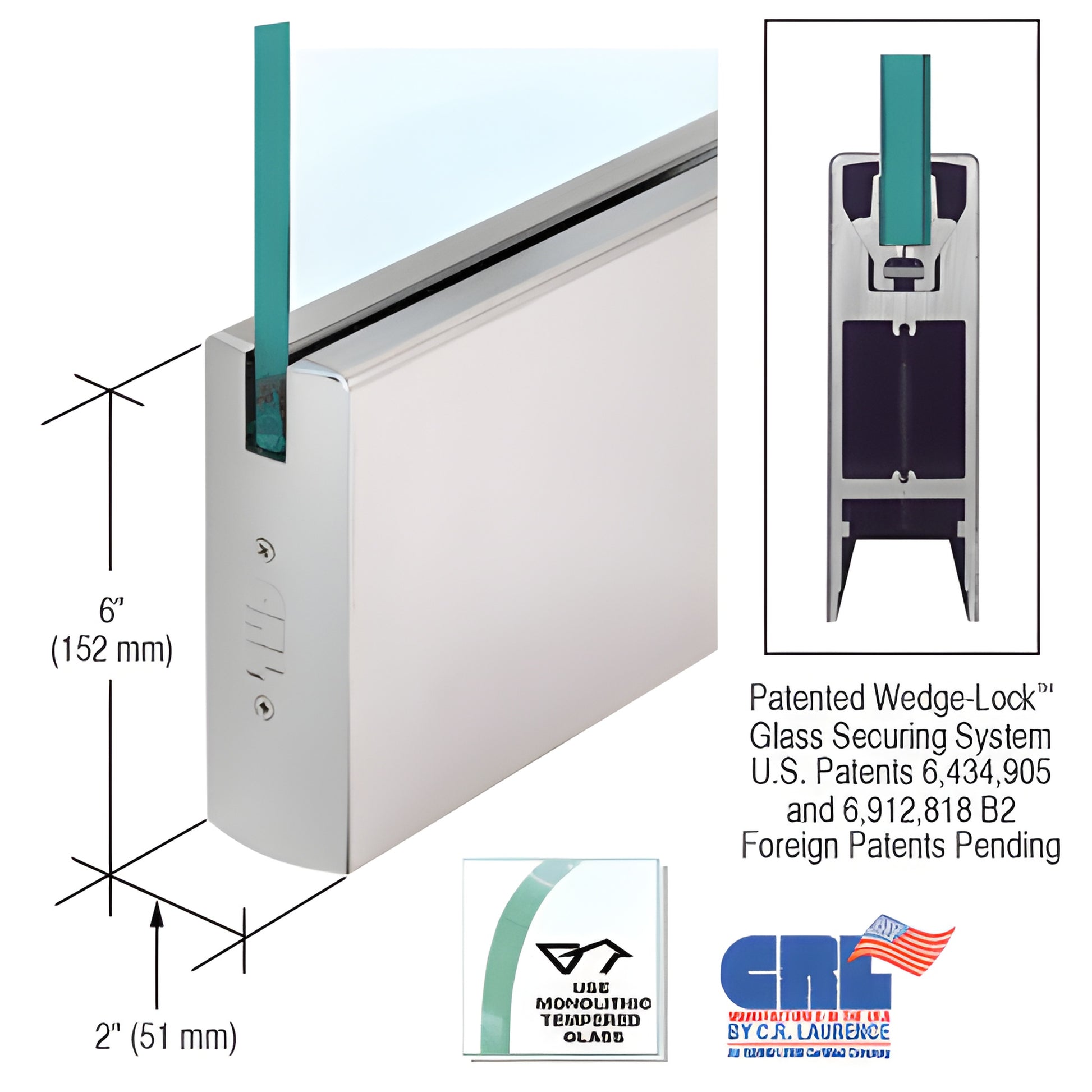

CRL Satin Anodized 6" Square Door Rail, 1/2in Glass - Custom, No Lock

• Custom Length for 1/2" (12 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (high retention force)
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes — custom finishes available
• Available with and without locks
• Matching sidelite rails available

An innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR6SSA12C) uses CRL’s exclusive Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) to lock monolithic tempered glass into the rail with exceptional holding power. The system applies downward pressure via two glass-retaining aluminum extrusions and a flat stainless steel bar; as the bar is tensioned with socket head cap bolts, angled wedges draw the extrusions together and compress a specialty gasket, producing very high retention force (over 900 lbs. in the 9" corner rail) — engineered for reliable, long-term performance in commercial glass doors.

Product height: 6" (152 mm)

Key benefits and installation features:

• Fastest installation among door rails — experienced installers can prepare a door for installation in under ten minutes
• Comes fully fabricated with end caps installed; ready-to-install out of the carton
• Adjustable Door Alignment System included (standard top and bottom) — allows ±1/8" (3.2 mm) adjustment without removing the door
• Low-profile adjustable slide enables non-standard pivot setback and fabrication for out-of-square openings
• Rigid single-component housing resists shifting and loss of adjustment over time
• Internal components do not require removal before installation; glass securing pads designed for longevity in extreme environments
• Models accept 3/8" or 1/2" (10 or 12 mm) glass

Installation and ordering notes:

• All Wedge-Lock® Door Rails include a built-in jamb alignment block; arms and pivots are ordered separately to meet job requirements
• All door rails supplied with standard Kwik-Adjust™ Pivot Alignment System; closer arms and floor or overhead pivots sold separately
• Models with locks are supplied with the lock mechanism installed; keyed cylinders or thumbturns ordered separately
• End caps included. Specify door rail length (including end caps) when ordering custom-length rails. Replacement end caps: search DREC6S
• Rail specifications, templates and hardware packages available from CRL Technical Sales

Product warning: comes standard with jamb alignment block; arms and pivots
