CRL Satin Anodized 6" x 120" Length Square Sidelite Rail
CRL Satin Anodized 6" x 120" Length Square Sidelite Rail
Regular price
$1,600.52 CAD
Regular price
Sale price
$1,600.52 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SR6SSA3812SL
Shipping Weight: 48.15 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 48.15 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Satin Anodized |
| Floor Mount Saddle Included FMS | 2SA |
| Glazing Thickness | 3/8 in. (10 mm) |
| Height 6 in. | (152 mm) |
| Width 1-7/8 in. | (48 mm) |
Overview

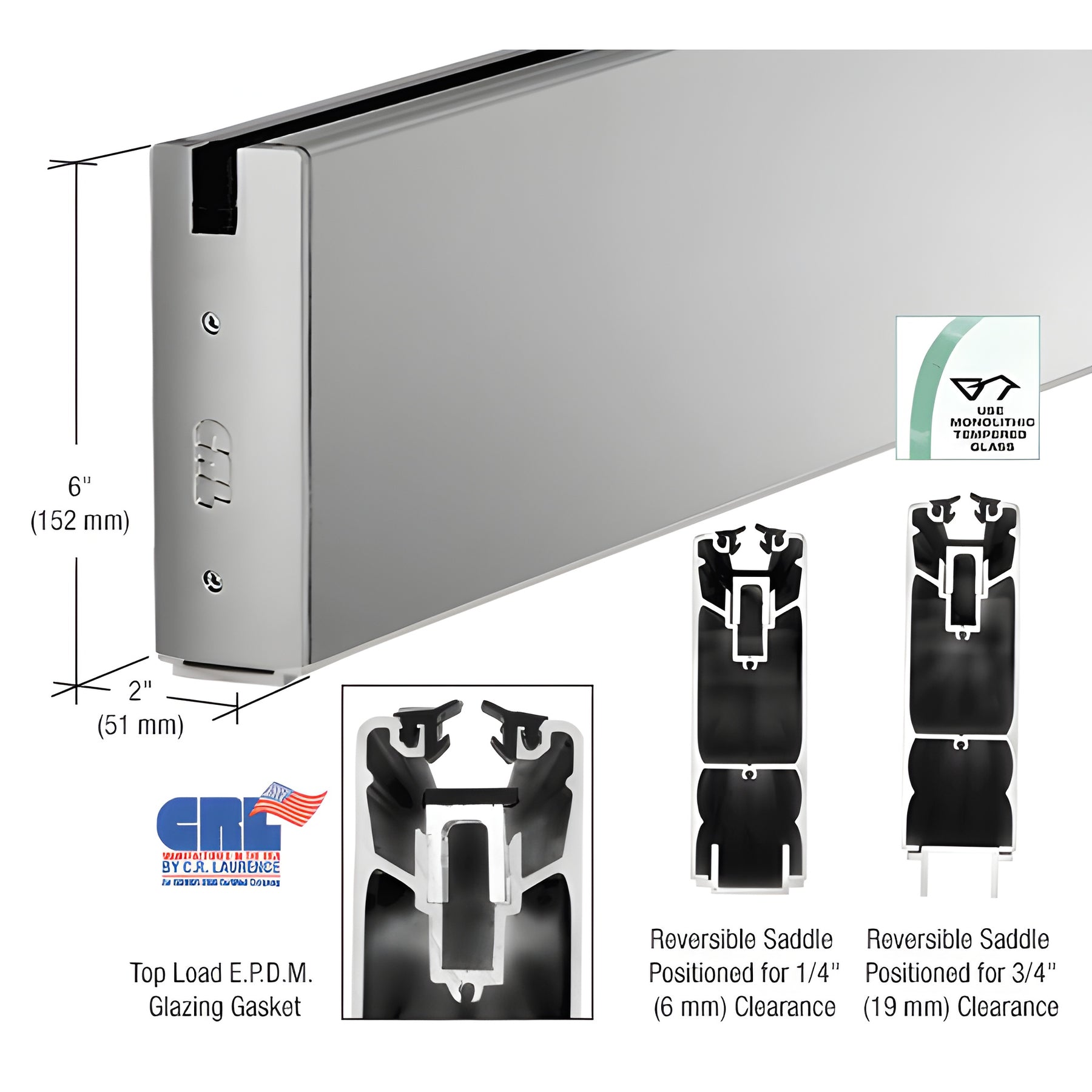

The CRL 6" (152 mm) Square Sidelite Rail is designed for secure installation of fixed glass panels in office and storefront settings.
This reversible extruded saddle accommodates both 1/4" and 3/4" door clearances and provides an even sightline when paired with CRL Door Rails.
Ideal for use with 1/2" and 3/8" glass, it features a convenient 'lift and drop' installation method and a top load EPDM Roll-in Glazing Gasket, eliminating the need for silicone sealant.
Available in ready-to-ship models with matching door rails and custom lengths, these sidelite rails ensure a seamless and professional finish.
For additional details, please contact CRL Customer Service.
This reversible extruded saddle accommodates both 1/4" and 3/4" door clearances and provides an even sightline when paired with CRL Door Rails.
Ideal for use with 1/2" and 3/8" glass, it features a convenient 'lift and drop' installation method and a top load EPDM Roll-in Glazing Gasket, eliminating the need for silicone sealant.
Available in ready-to-ship models with matching door rails and custom lengths, these sidelite rails ensure a seamless and professional finish.
For additional details, please contact CRL Customer Service.
Specifications
CAD Drawings - pdf
CAD Drawings - dwg
Engineering & Test Reports
