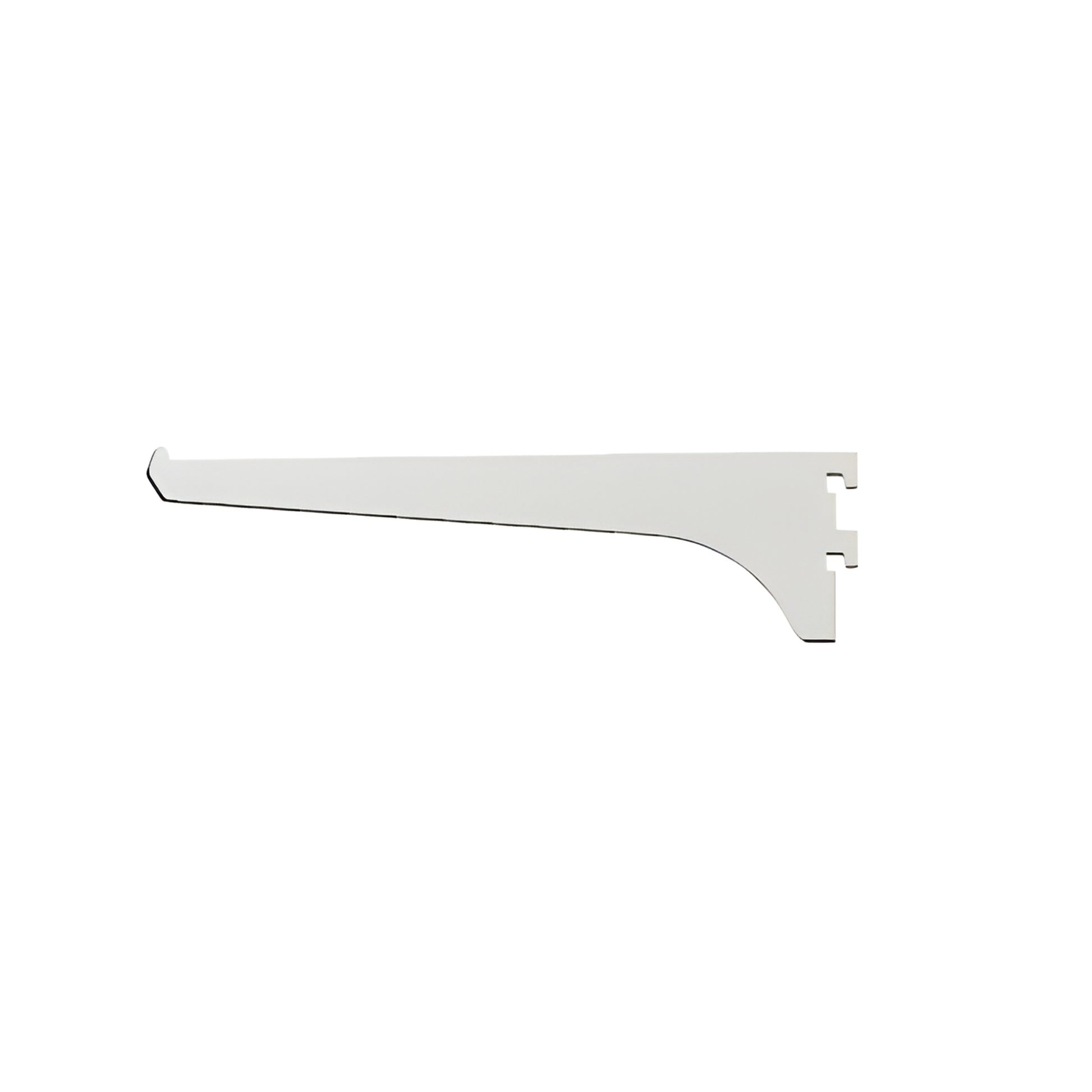

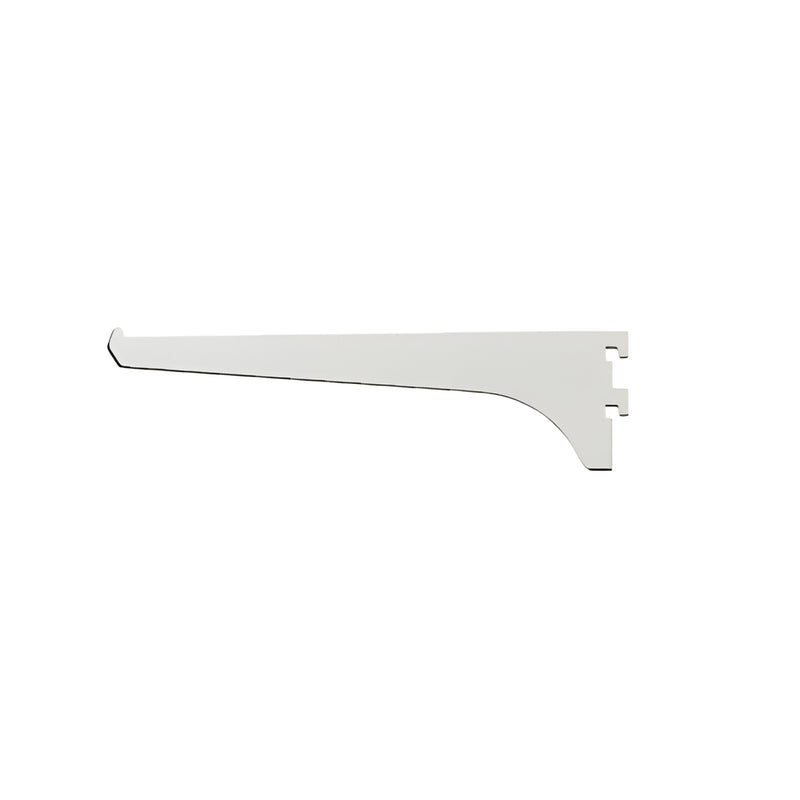

CRL 8" Satin Anodized Aluminum Mounting Bracket

• Available in several finishes
• Five finishes and five lengths: 4", 6", 8", 10", and 12" (102, 152, 203, 254, and 305 mm)
• Designed to fit CRL Series 22 and Series 322 aluminum standards

CRL Aluminum Brackets (SKU 122A8) are slip-in shelf supports for hidden-slot shelving systems. Available in five finishes and five sizes, these brackets install without a back flange—simply insert into the standard's hidden slot and secure by lightly tapping down. Ideal long-tail searches: "CRL aluminum shelf brackets for Series 22", "hidden slot aluminum shelf supports", "aluminum shelf brackets 4 inch to 12 inch".

Aluminum Bracket Weight Capacities
Based on two standards mounted 16" (406 mm) apart with screws into wall studs:
4" (102 mm) = 75 lbs (34 kg)
6" (152 mm) = 65 lbs (29 kg)
8" (203 mm) = 55 lbs (25 kg)
10" (254 mm) = 45 lbs (20 kg)
12" (305 mm) = 35 lbs (16 kg)

Product Warning:
These Aluminum Brackets are not interchangeable with steel standards or bracket systems from other manufacturers. Deduct 1/16" from the depth of the glass shelf when using aluminum brackets.

Quick CTA: Order CRL aluminum shelf brackets (SKU 122A8) or contact CRL Customer Service for finish availability and shipping weight details.
