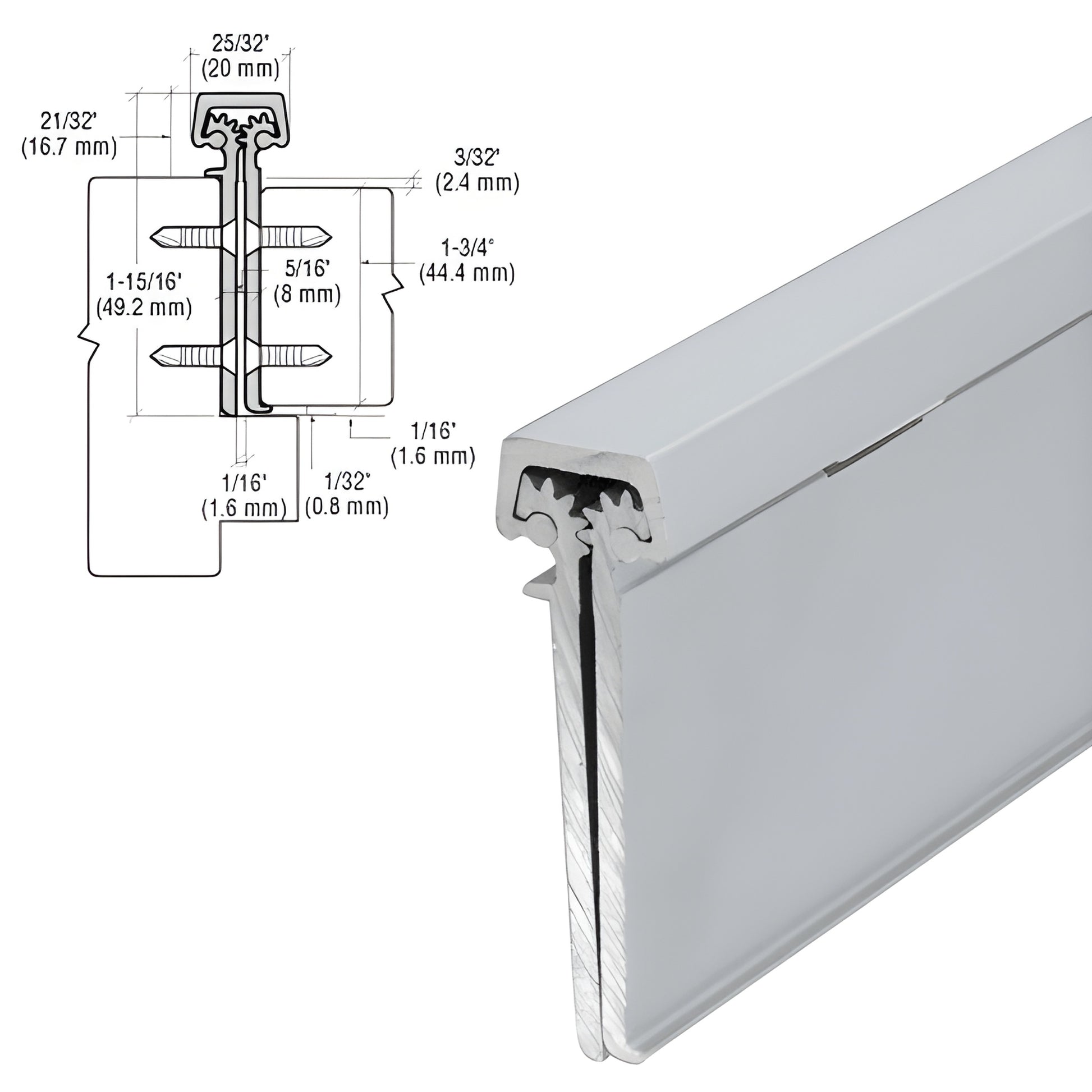

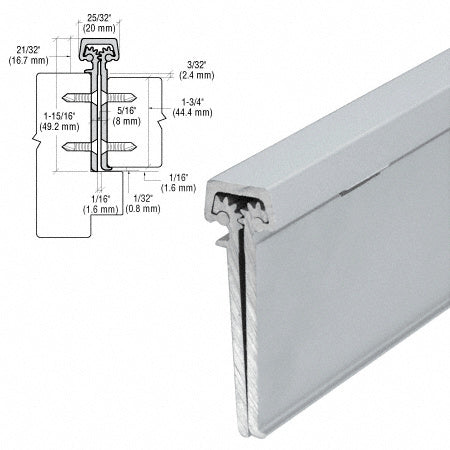

CRL 83" Satin Anodized Concealed Hinge w/ Lip for 1-3/4" Entry Door
CRL 83" Satin Anodized Concealed Hinge w/ Lip for 1-3/4" Entry Door
Regular price
$285.71 CAD
Regular price
Sale price
$285.71 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 45083A
Shipping Weight: 8.25 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.25 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Satin Anodized
Includes
Pack of Screws
Length
83
Lip
1-3/4
Material
Aluminum
Maximum Door Weight
600
Replacement Screw Pack
RSP400A
Series
450
Width
1-15/16
Overview
- Heavy-duty concealed leaf hinge supporting doors up to 600 lbs (272 kg)
- Concealed installation with hidden mounting hardware for a clean, secure finish
- Available in Satin Anodized (clear) and Dark Bronze Duranodic finishes
- Stocked lengths: 83" (2.1 m), 95" (2.4 m), and 120" (3.05 m)
CRL Heavy-Duty Concealed Leaf hinge with lip for 1-3/4" entry doors (SKU: 45083A). Made from high-strength aluminum with a full-length rolling gear profile to align heavy doors perfectly top-to-bottom. Self-lubricating polyacetal load-bearing blocks provide smooth, near-floating operation even on the heaviest doors. Hinges conceal all mounting hardware when installed, and include installation instructions and all necessary hardware for quick, professional installation. Stocked in multiple lengths and finishes to fit large commercial and residential entry doors.
Order the CRL heavy-duty concealed hinge (45083A) for reliable, trouble-free performance on oversized entry doors — add to cart or contact customer service to confirm fit.
