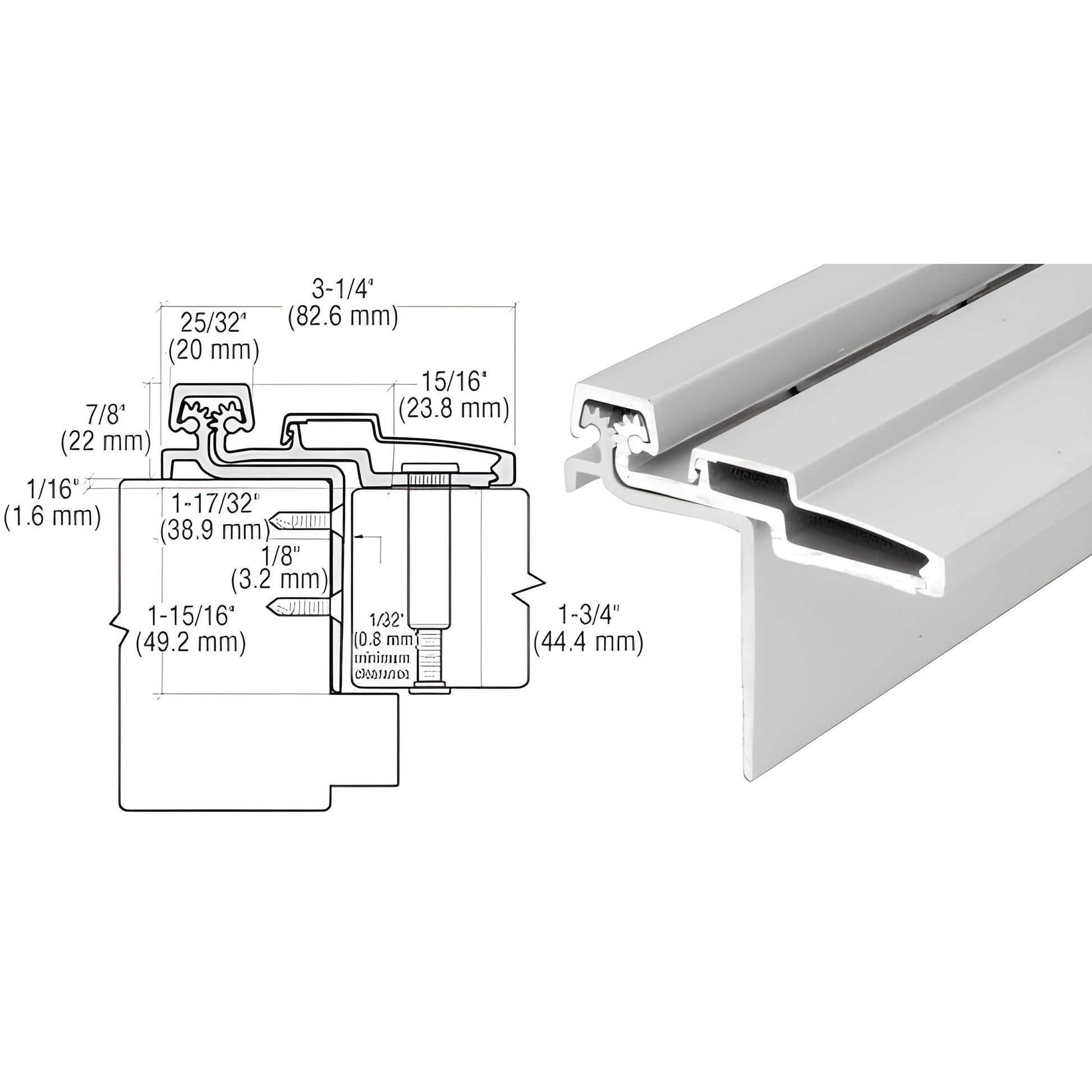

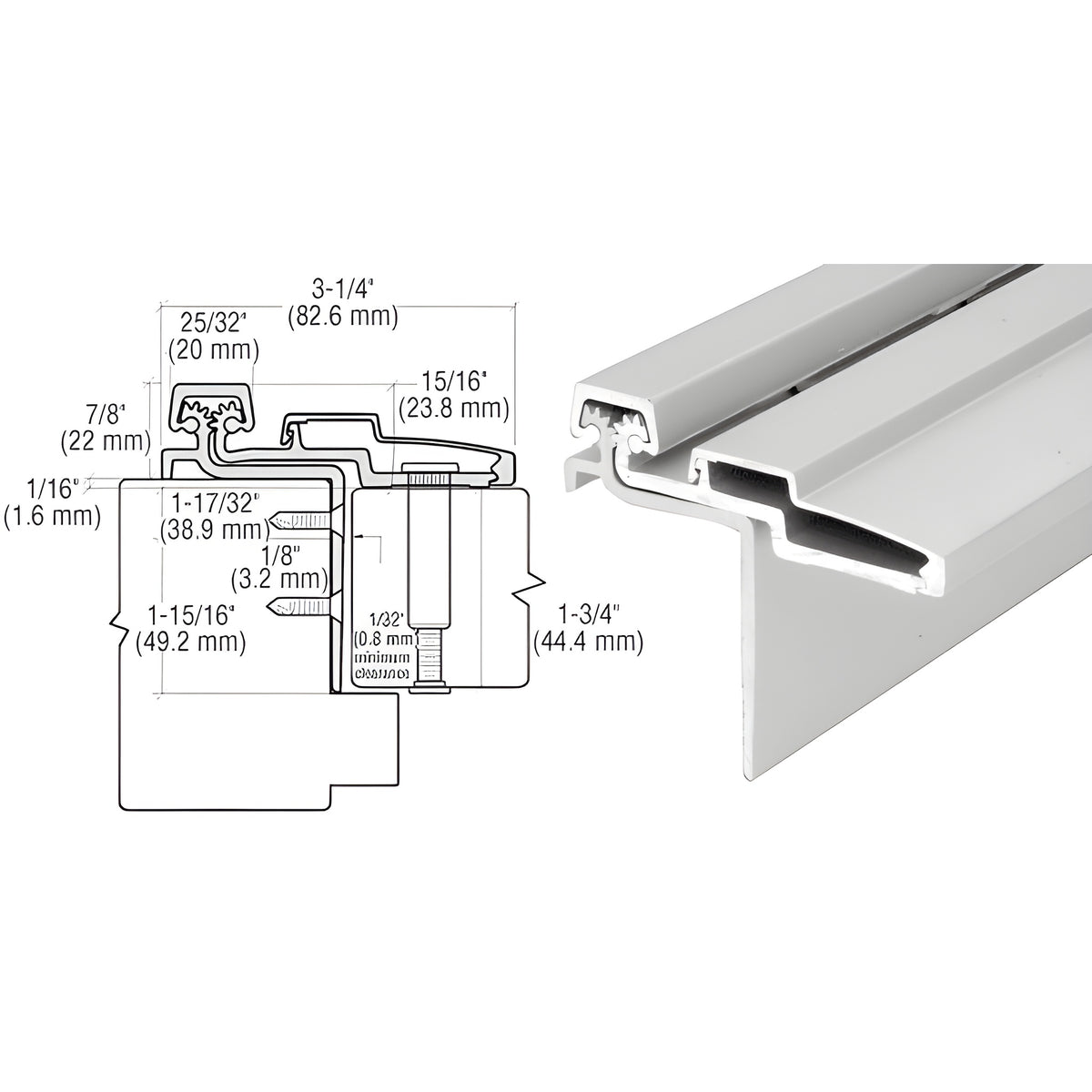

CRL 83" Satin Anodized 211HD Half-Surface Wrap-Around Continuous Hinge
CRL 83" Satin Anodized 211HD Half-Surface Wrap-Around Continuous Hinge
Regular price
$1,174.62 CAD
Regular price
Sale price
$1,174.62 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 211HD83A
Shipping Weight: 12.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 12.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Brand
Roton
Finish/Color
Satin Anodized
Includes
Installations Screws
Length
83
Material
Aluminum
Maximum Door Weight
600
Replacement Screw Pack
22701SA
Series
Roton 211HD
Width
3-1/4
Overview
- Heavy-duty hinges for doors weighing up to 600 lbs (272.16 kg)
- Straight hole pattern for easy installation
- Available in satin anodized and dark bronze anodized finishes
These CRL Roton Half Surface - Frame Leaf Wrap-Around Concealed Continuous Hinges (SKU: 211HD83A) feature load-bearing blocks every 2-9/16" (65.1 mm) and a leaf wrap-around design to conceal and cover damaged frames or jambs. Stocked in 83" (2.11 m) lengths, each hinge includes a pack of installation screws; replacement screw packs are available separately. Ideal for heavy commercial and exterior doors requiring a concealed continuous hinge with high load capacity and easy retrofit.
Order SKU 211HD83A now to upgrade to a heavy-duty concealed continuous hinge — contact us for availability and lead time.
