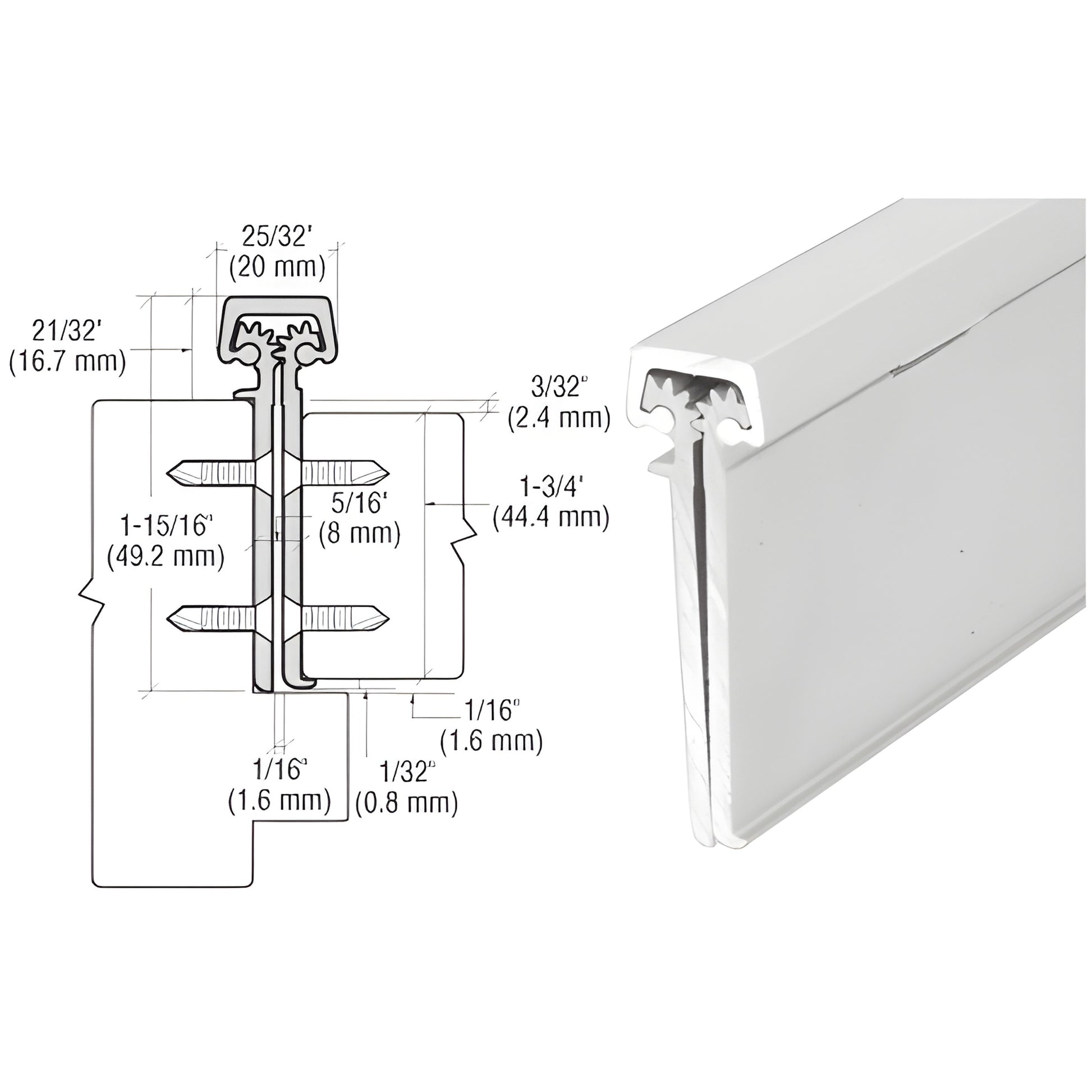

• Roton 224HD83A satin anodized aluminum concealed continuous hinge 83in, profile photo with cross section diagram.
1 1

CRL

CRL 224HD 83" Concealed Hinge Satin Anodized w/ Lip for 1-3/4" Door

CRL 224HD 83" Concealed Hinge Satin Anodized w/ Lip for 1-3/4" Door

$435.79 CAD
$435.79 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 224HD83A
Shipping Weight: 8.25 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Brand
Roton
Finish/Color
Satin Anodized
Includes
Installations Screws
Length
83
Material
Aluminum
Maximum Door Weight
600
Replacement Screw Pack
61362SA
Series
Roton 224HD
Width
25/32

Overview

  • Heavy-duty continuous hinge for 1-3/4" entry doors — supports doors up to 600 lbs (272 kg)
  • Straight hole mounting pattern for easy installation
  • Available in Satin Anodized (clear) and Dark Bronze Duranodic anodized finishes
  • Stock lengths: 83" (2.1 m) and 95" (2.4 m)

CRL Concealed Leaf with Lip for 1-3/4" Entry Door Roton Hinges — SKU 224HD83A are constructed from high-strength aluminum with a full-length rolling gear profile to align doors precisely from top to bottom. Self-lubricating polyacetal load-bearing blocks provide smooth, near-floating operation on very heavy doors. Concealed mounting hardware ensures a clean, secure appearance when installed. Includes installation instructions and all necessary fasteners. Ideal as a heavy-duty concealed continuous hinge for commercial and residential 1-3/4" entry doors.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please contact CRL Customer Service before ordering. Product images are actual or close representations; colors may vary with monitor settings.


Order SKU 224HD83A today to get a durable, concealed continuous hinge for heavy entry doors.
