Product Details
- Specified Everywhere Because of Their Long Service Life
- Straight Hole Pattern
- Available in Standard or Heavy-Duty Models
- Standard Duty Hinges for Doors Weighing Up to 200 Lbs. (90 kg)
- Heavy-Duty Hinges for Doors Weighing Up to 600 Lbs. (272 kg)

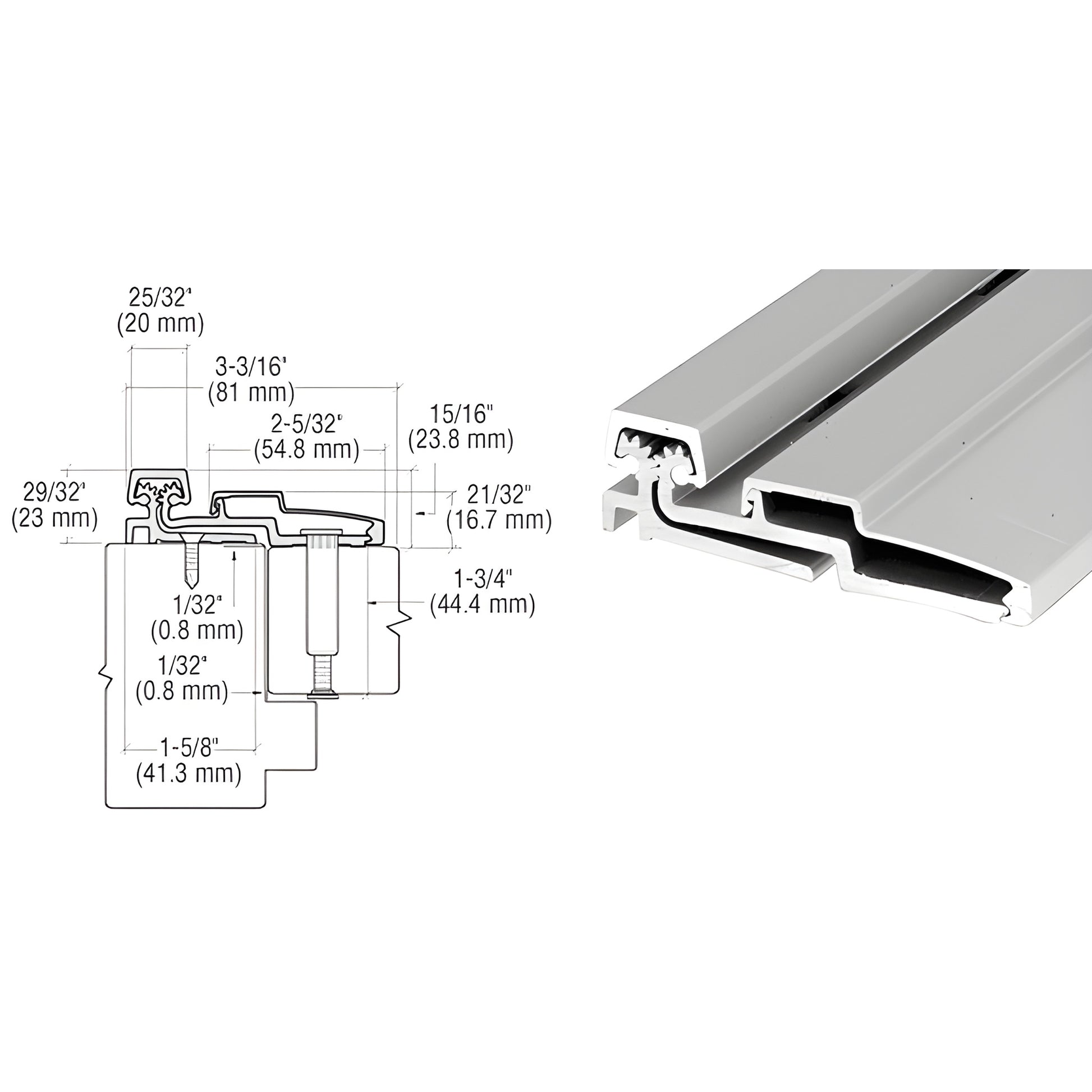

CRL Standard Duty Full Surface Roton Hinges are made of high strength aluminum with a full length rolling gear profile to align doors perfectly from top to bottom. Special self-lubricating polyacetal load bearing blocks deliver smooth, almost floating operation on even the heaviest doors. Hinges are completely secure because all mounting hardware is hidden when installed. Hinges are easy-to-install and come with instructions and all necessary hardware for mounting. Available in clear satin anodized or dark bronze duranodic finishes. These Standard Duty Hinges are stocked in lengths of 83" and 95" (2108 and 2413 mm). Replacement Screw Packs are also available.
