CRL Satin Anodized Aluminum 1/2" U-Channel

Overview

SKUD604A
Sold as1 Stock Length
Shipping LimitationsShipping Quote Required
Finish/Color:Satin Anodized

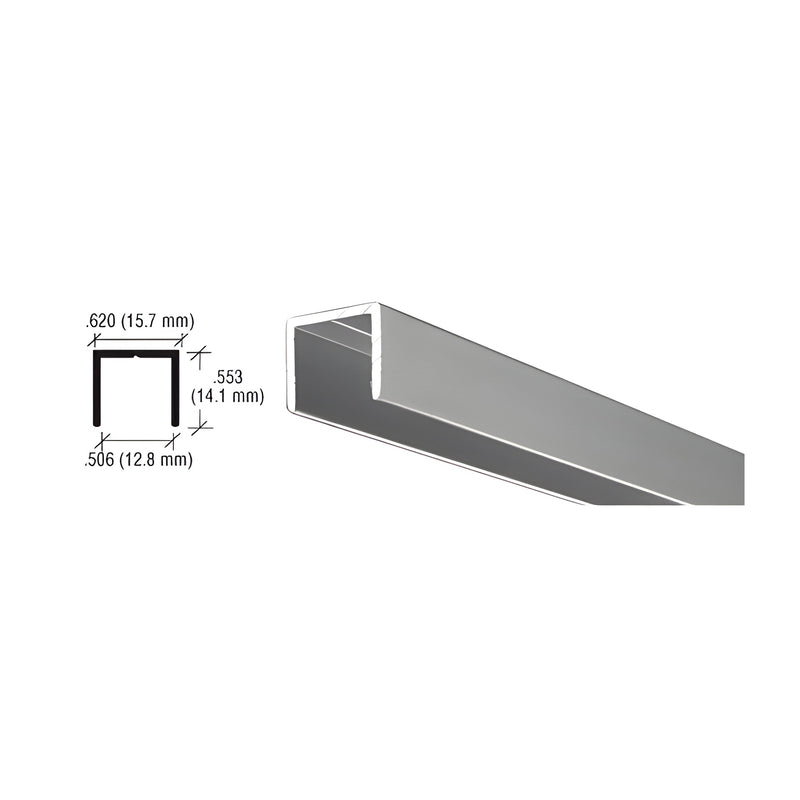

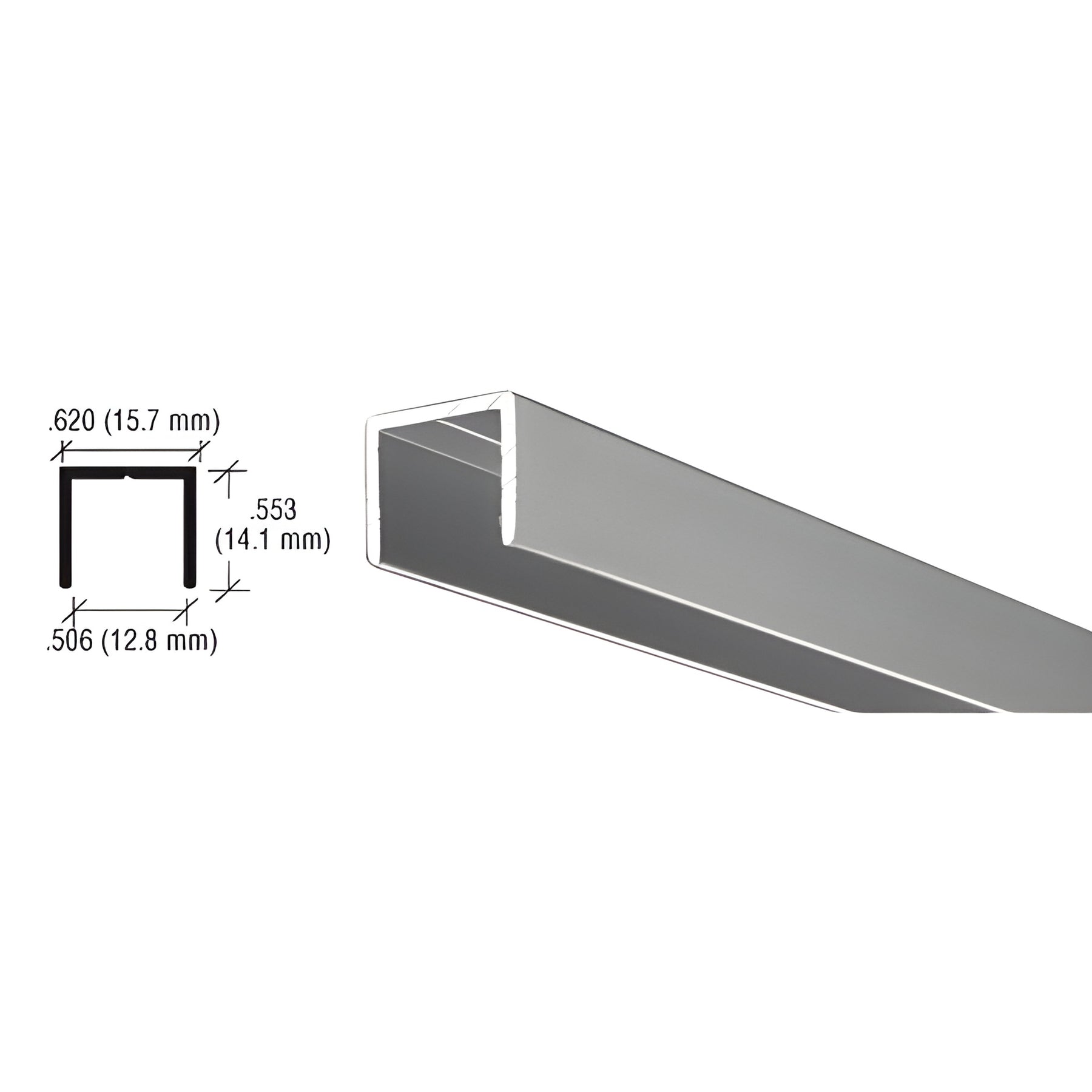

Height0.553 in. (14 mm)
Length144 in. (3657.6 mm)
MaterialAluminum
Open Width0.506 in. (12.9 mm)
Thickness0.05 in. (1.3 mm)
Width0.62 in. (15.7 mm)

Description

Product Details

  • Several Attractive Finishes
  • Easy-to-Install

This CRL 1/2" Single U-Channel is a wide single channel that is designed for universal applications, but is generally used for single track assemblies at the top or as a side jamb. Available in several finishes, this versatile extrusion should be maintained in your shop inventory.

SPECIFICATIONS:

Material: 6063-T5 Aluminum Alloy

Thickness: .05 (1.45 mm)

Stock Length: 12' (3.66 m)

Typical Uses: Generally Used as a Single Track or Side Jamb

Product Warning:

Stock lengths must ship common carrier unless specifically cut for UPS shipment.
