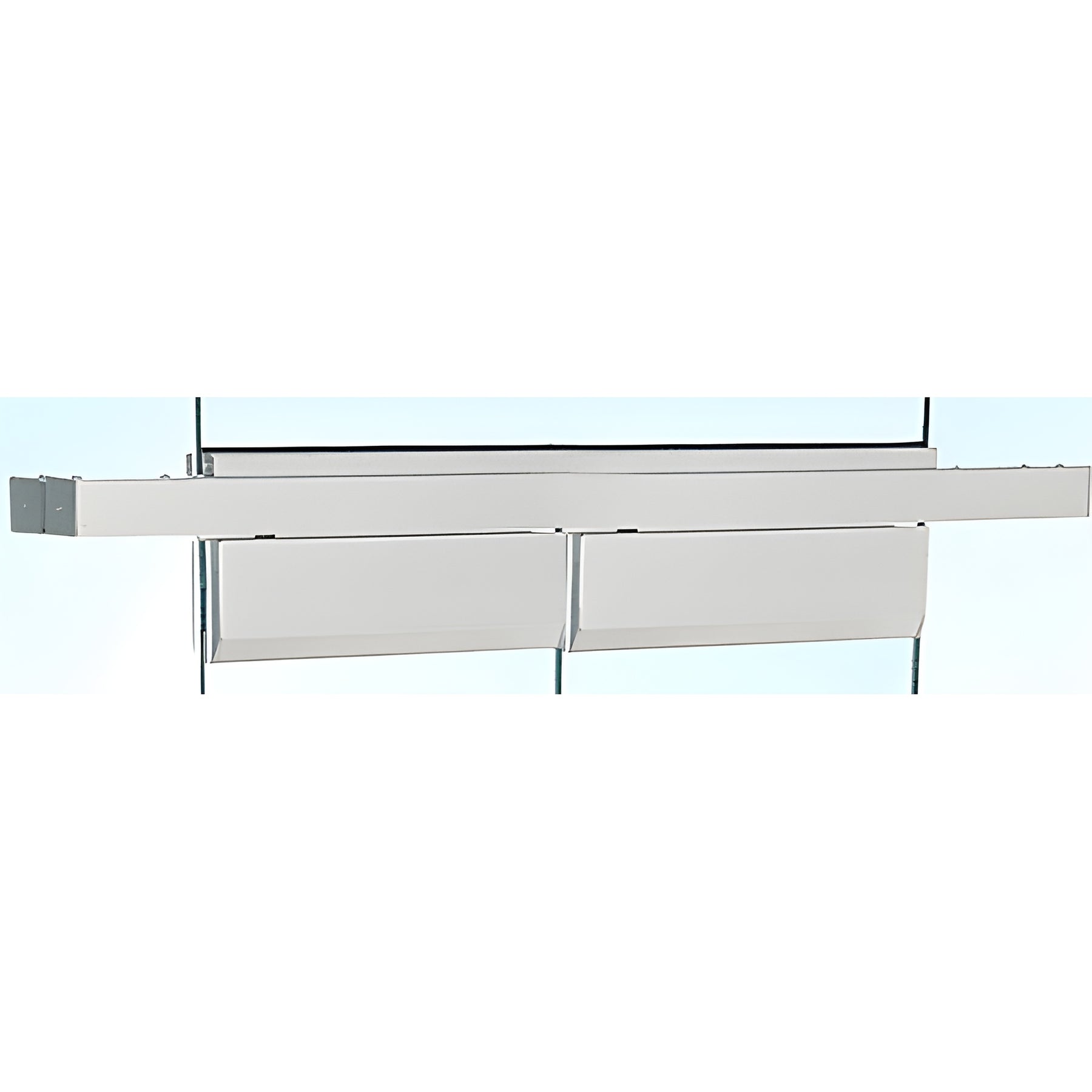

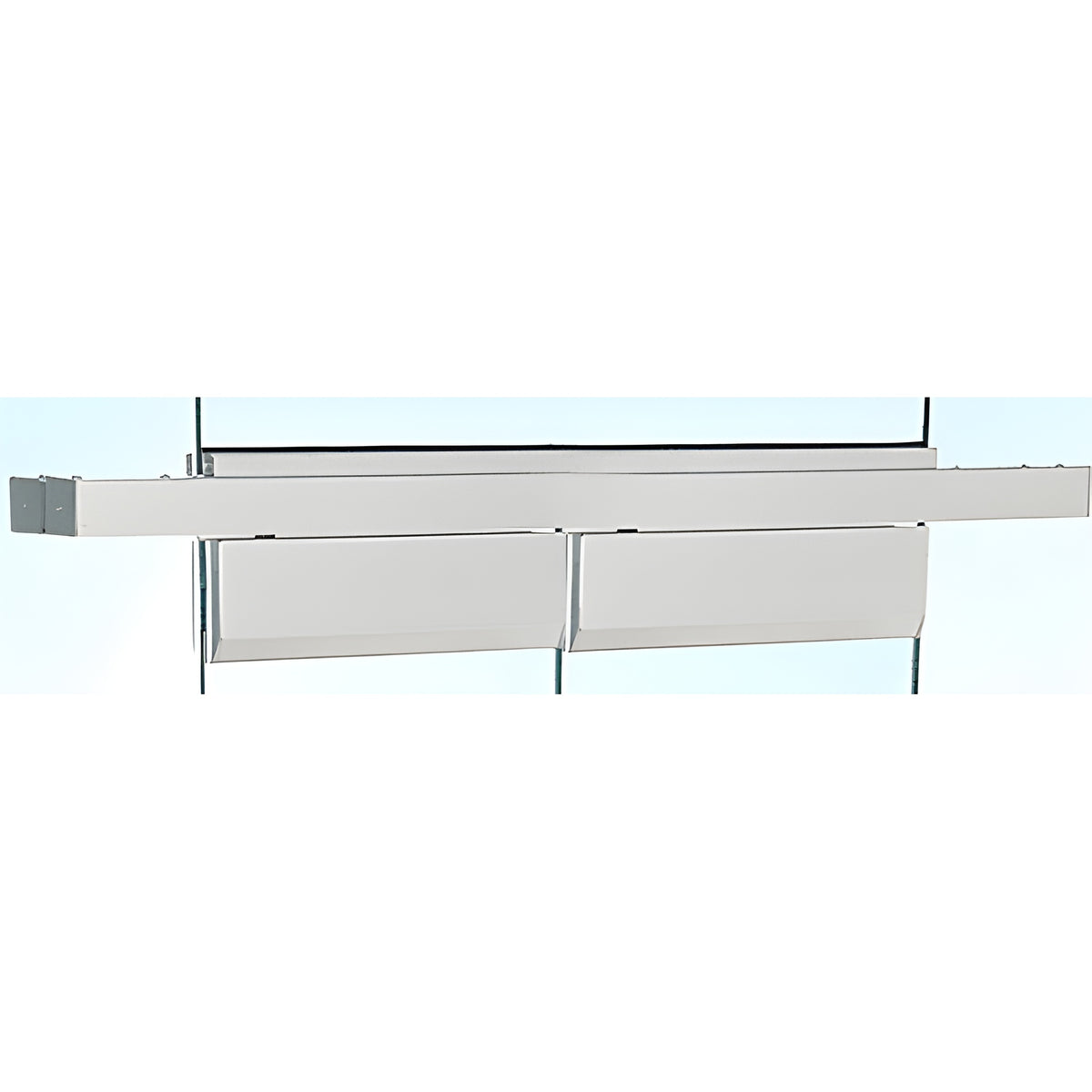

CRL Satin Anodized Aluminum 4.5in Custom Double-Door Floating Header

• Ideal for applications where cutting into the floor for a floor closer is not an option — no-floor-cut floating header for glass doors
• Fits 1/2" (12 mm) glass for glass-to-glass or glass-to-wall installations, with or without overhead concealed door closers
• Stock lengths: 36" (914 mm) single and 72" (1.83 m) double headers; custom sizes available
• Six standard architectural finishes: Satin Anodized, Black Bronze Anodized, Black Powder Coat, Polished Stainless, Brushed Stainless, and Polished Brass
• Custom finishes available on special order

This CRL Floating Header System (SKU: FHSACD) is engineered for all-glass wall openings and frameless storefronts where a floor cut for a closer is undesirable. Use it for glass-to-glass or glass-to-wall doorways; it supports installations with or without an Overhead Concealed Door Closer. Available in multiple stock lengths and architectural finishes. For special finish requests, contact CRL Technical Sales.

Product Warning:

STRUCTURAL DISCLAIMER - Customers must consult a structural engineer to verify suitability for intended use and site conditions. Installers must be qualified and knowledgeable about applicable regulations, safety factors, and correct fixing materials and procedures.

If the transom weight above the header exceeds 100 pounds (45.4 kg), support from the ceiling is required to prevent bowing. Recommended options include Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Contact our Technical Sales Department for assistance.

Order the CRL Floating Header System (FHSACD) for a durable, no-floor-cut header solution — contact CRL to get a quote or request custom sizes.
