CRL Satin Anodized Aluminum Clamp-On Exterior Glazed Window Frame

• Clamp-On Frame Vision Window typically used above built-in exchange drawers in walk-up installations
• Drawings and specifications available online
• Custom anodizing and paint finishes available

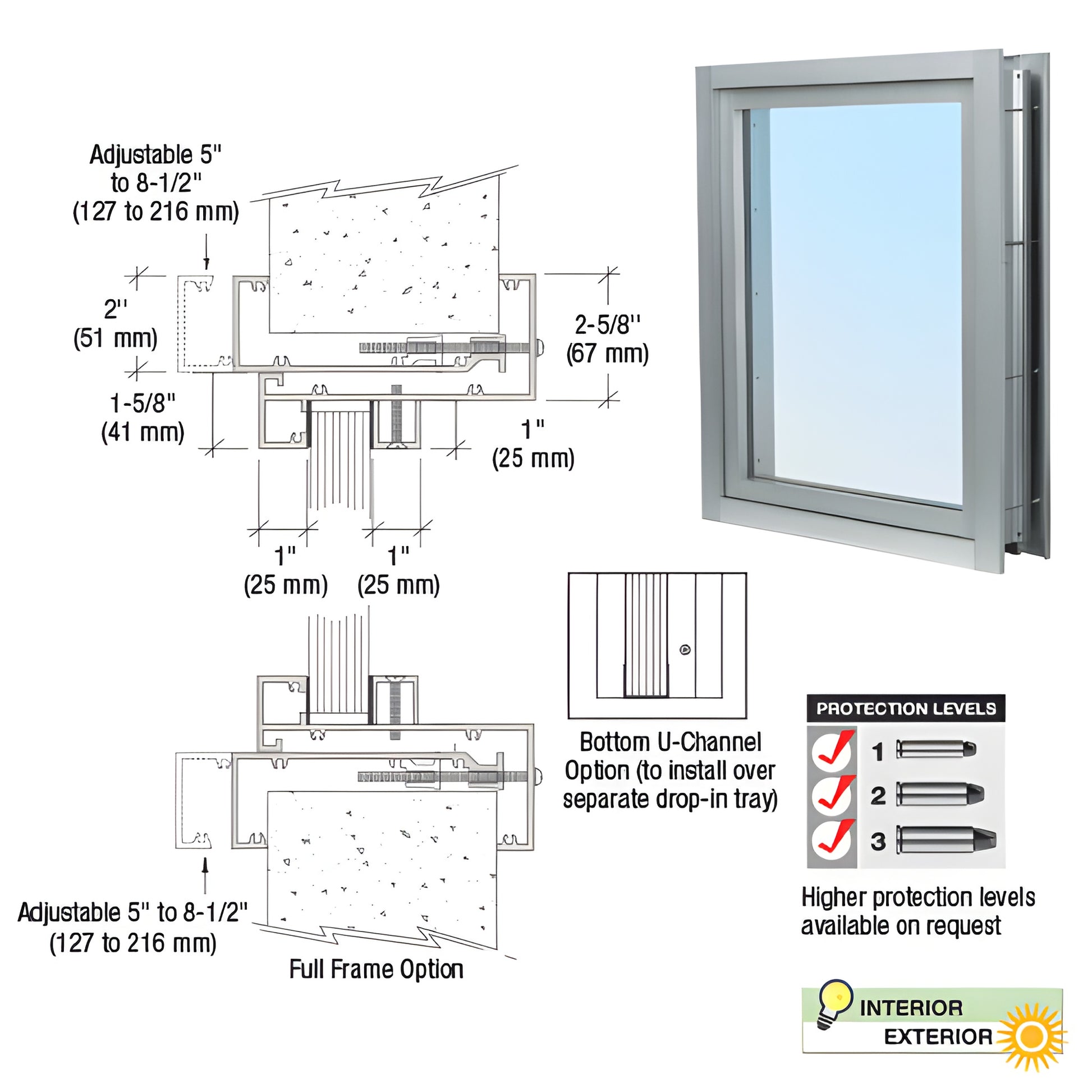

CRL Clamp-On Frame Vision Windows (SKU: C0VEA) are engineered for walk-up and teller applications, fitting wall openings 5" to 8-1/2" (127 to 216 mm) thick. The uniform four-sided aluminum frame clamps securely in place using interior tightening screws for a weather-tight installation. Choose from multiple glazing options and level-rated materials for security and visibility; an optional U-Channel under the glazing allows access to drop-in deal trays. Customers specify overall width and height when ordering for custom-sized clamp-on vision windows suitable for transaction and package-receiving openings.

SPECIFICATIONS:
Materials: Glazing - 1/4" (6 mm) Glass; 1-5/16" (33 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard®; 1-3/8" (35 mm) Level 2 Glass; 1" (25 mm) Level 2 Lexgard®; 1-7/8" (48 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard®.
Finishes: Frame - Satin Anodized, Duranodic Bronze, RAL powder paint colors, or custom KYNAR® paint colors.
Instructions Included.

Highlight: durable clamp-on frame vision window for walk-up teller and transaction drawer installations — customizable sizes, security-rated glazing, and premium finishes. Contact CRL to get drawings, request custom anodizing, or place an order.
