- Standard Inset Frame Vision Window Typically Used Above Built-In Exchange Drawers in Walk-Up Installations
- Drawings and Specifications are Available
- Custom Anodizing Available

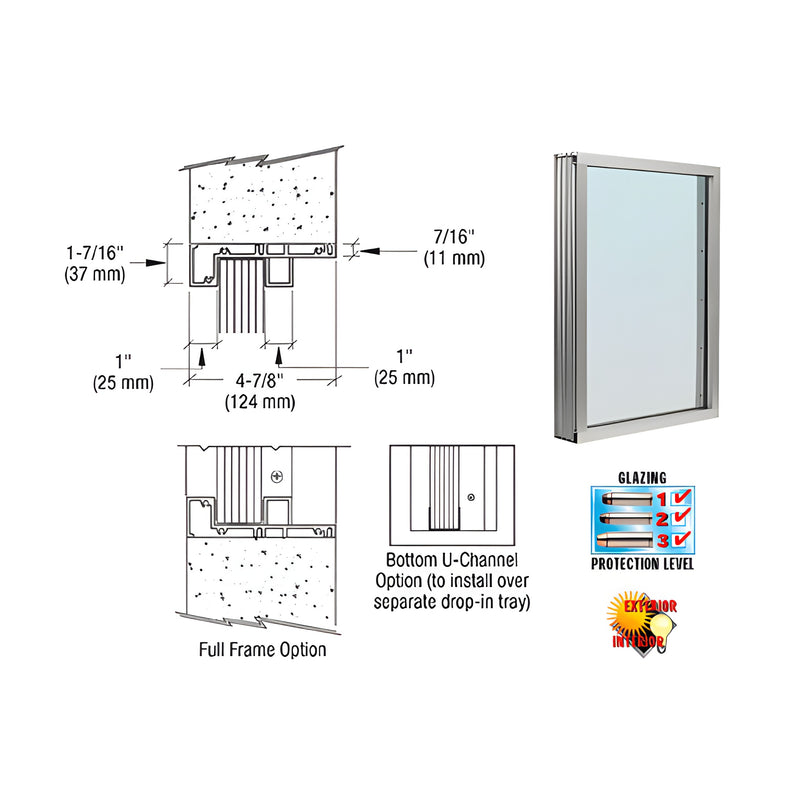

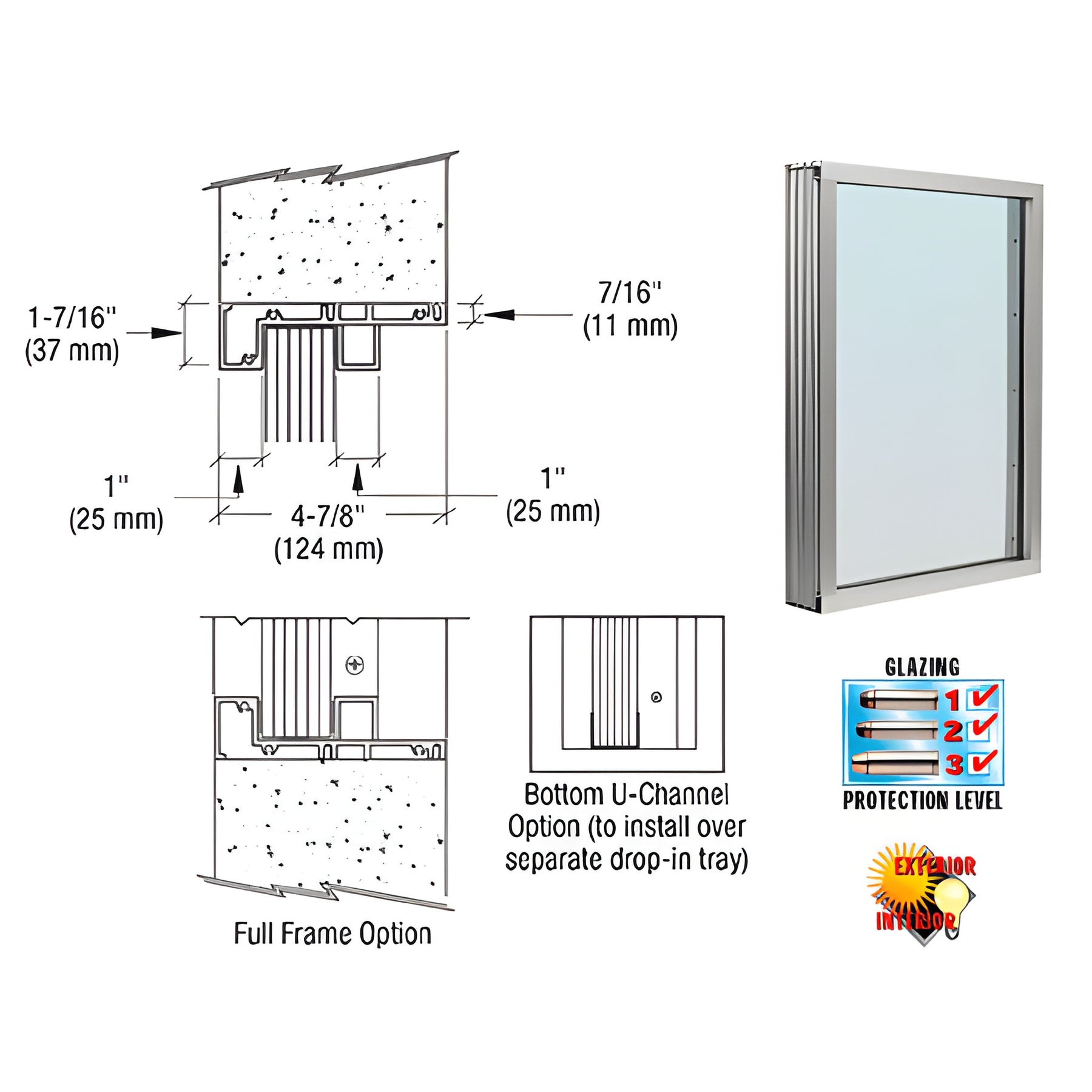

CRL Standard Inset Frame Vision Windows
are designed for installation in wall openings that have a thickness of at least 4-7/8" (124 mm). The frame has a uniform design on all four sides, and the selected glazing material will be sealed into the frame for a weather tight installation. Vision Windows are commonly used as sidelites in Multi-Lite Exchange Window units. Also for installation above built-in Transaction Drawers or Package Receivers. Installer affixes frame to wall opening, then permanently seals glazing material into frame with the provided glazing tape.
SPECIFICATIONS
Materials: Glazing - 1/4" (6 mm) Glass; 1-3/16" (30 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard®; 1-3/8" (35 mm) Level 2 Glass; 1-3/8" (35 mm) Level 2 Acrylic with Abrasion Resistant Coating; 1" (25 mm) Level 2 Lexgard®; 1-11/16" (43 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard®.
Finishes
Frame - Satin Anodized, Duranodic Bronze, RAL Powder Paint Colors or Custom KYNAR® Paint Colors
Instructions Included
Product Warning
CRL recommends a maximum width of 36" (914 mm) when surround sound is used.
