CRL
#8 x 1-1/2" Phillips Flat Head Sheet Metal Scre...
$0.16
CRL
CRL Satin Anodized Aluminum FHA J-Channel Glass Trim
Item# D638A
Shipping Weight: 13.44 Ounces
Shipping Limitations: Requires Cutting Instructions for UPS
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 13.44 Ounces
Shipping Limitations: Requires Cutting Instructions for UPS
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Case Quantity
50
Finish/Color
Satin Anodized
Glazing Thickness
1/4
Height
0.758 in. (19.2 mm)
Inside Dimensions
0.298 in. (8 mm)
Length
144 in. (3658 mm)
Material
Aluminum
Width
0.45 in. (11 mm)
Wrist Circumference
1/4 in. (6 mm)
- For 1/4" (6 mm) mirror
- Available in three finishes
- Meets FHA specifications
- Made from three easy-to-use extrusions
- 12' (3.66 m) stock length
- Neat, trim appearance

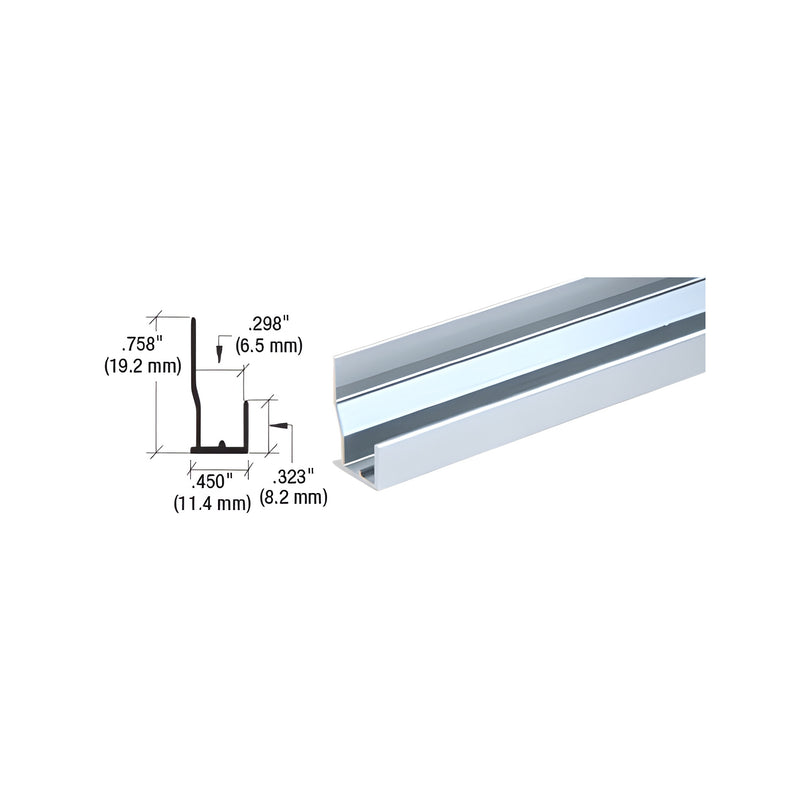

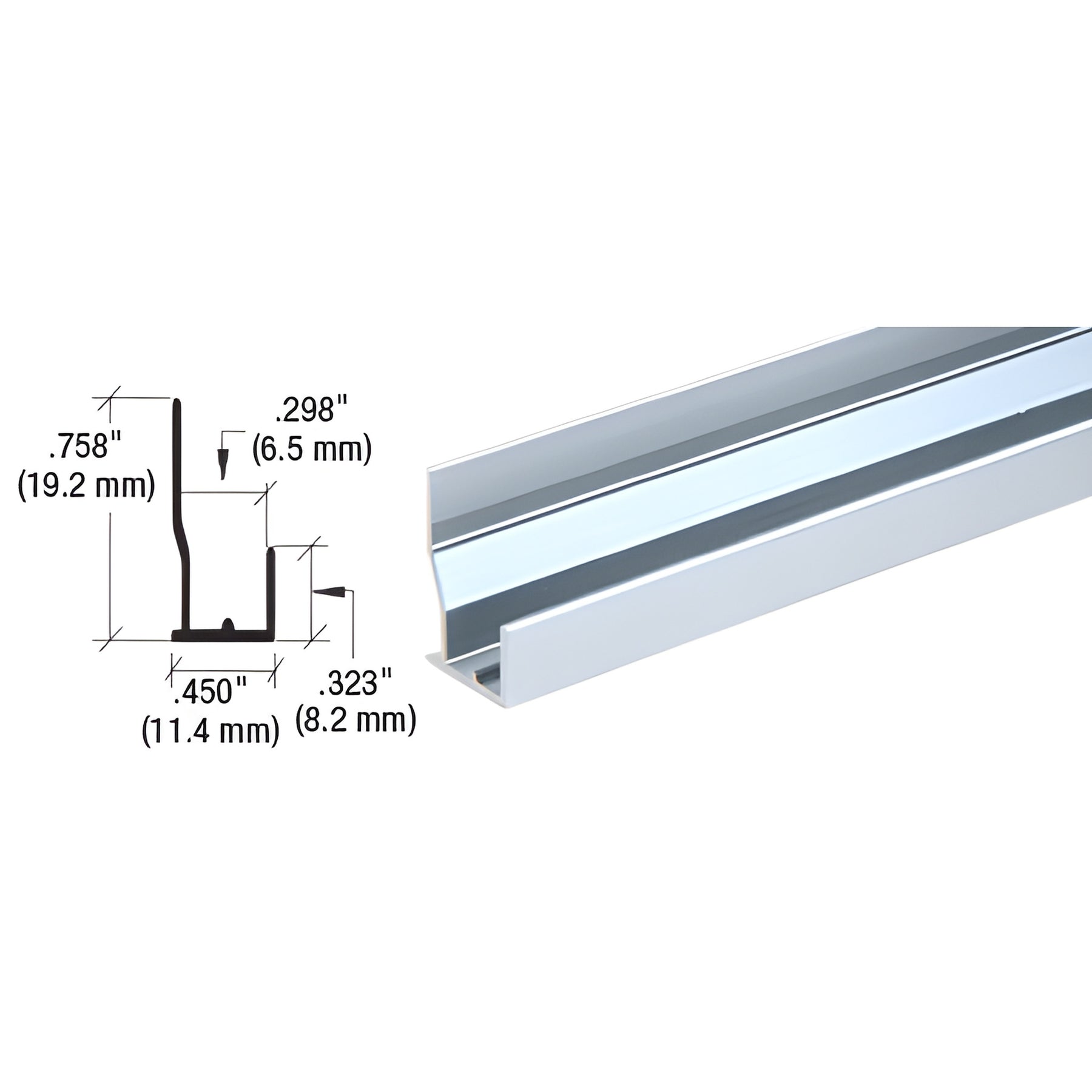

This CRL FHA Type J-Channel (SKU D638A) holds a 1/4" (6 mm) mirror 1/8" (3 mm) off the wall. A raised rib at the bottom of the channel prevents moisture from collecting and damaging the silver mirror backing, helping the trim meet FHA specifications and extend mirror life. Each piece ships individually polywrapped.
NOTE: Not recommended for schools, hospitals, or other institutions where mirror edges must be protected on all four sides.
Mounting detail: Closed ends can be formed by trimming back part of the channel and bending the front flaps to close off the ends.
Product warning:
Stock lengths must ship via common carrier unless specifically cut for UPS shipment.
Most shipping weights are approximate and have not been verified. If you need exact weight to determine shipping costs, contact CRL Customer Service prior to ordering. Product images are actual or close representations; colors may vary by monitor.
Order SKU D638A or contact CRL Customer Service to place your order or request exact shipping weight.
