- Standard Inset Frame Vision Window with Surround Sound System to Allow Natural Voice Transmission
- Custom Anodizing Available
- Drawings and Specifications are Available Online
CRL Standard Inset Frame Vision Windows

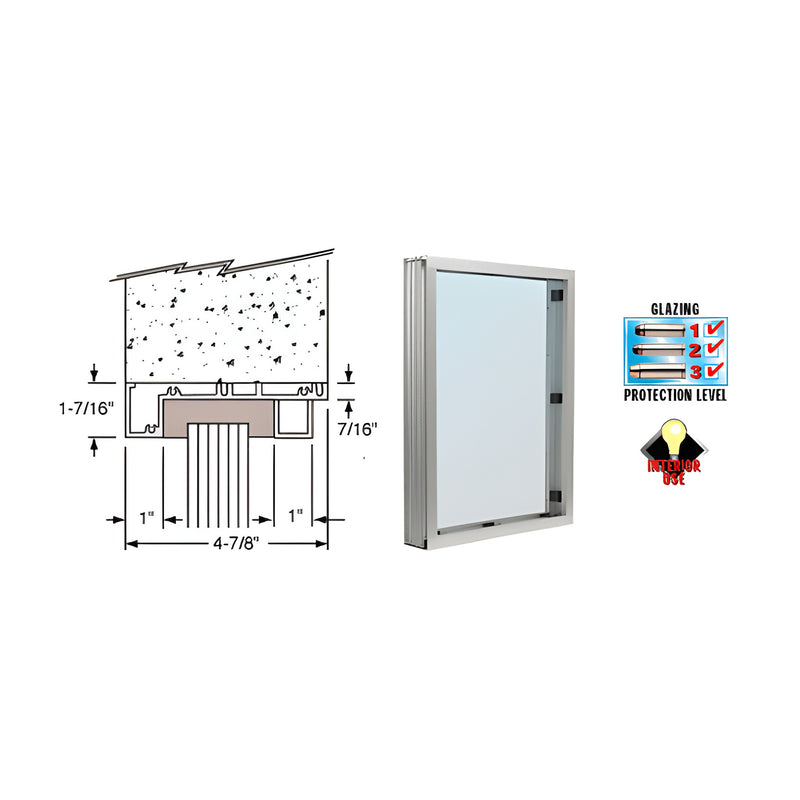

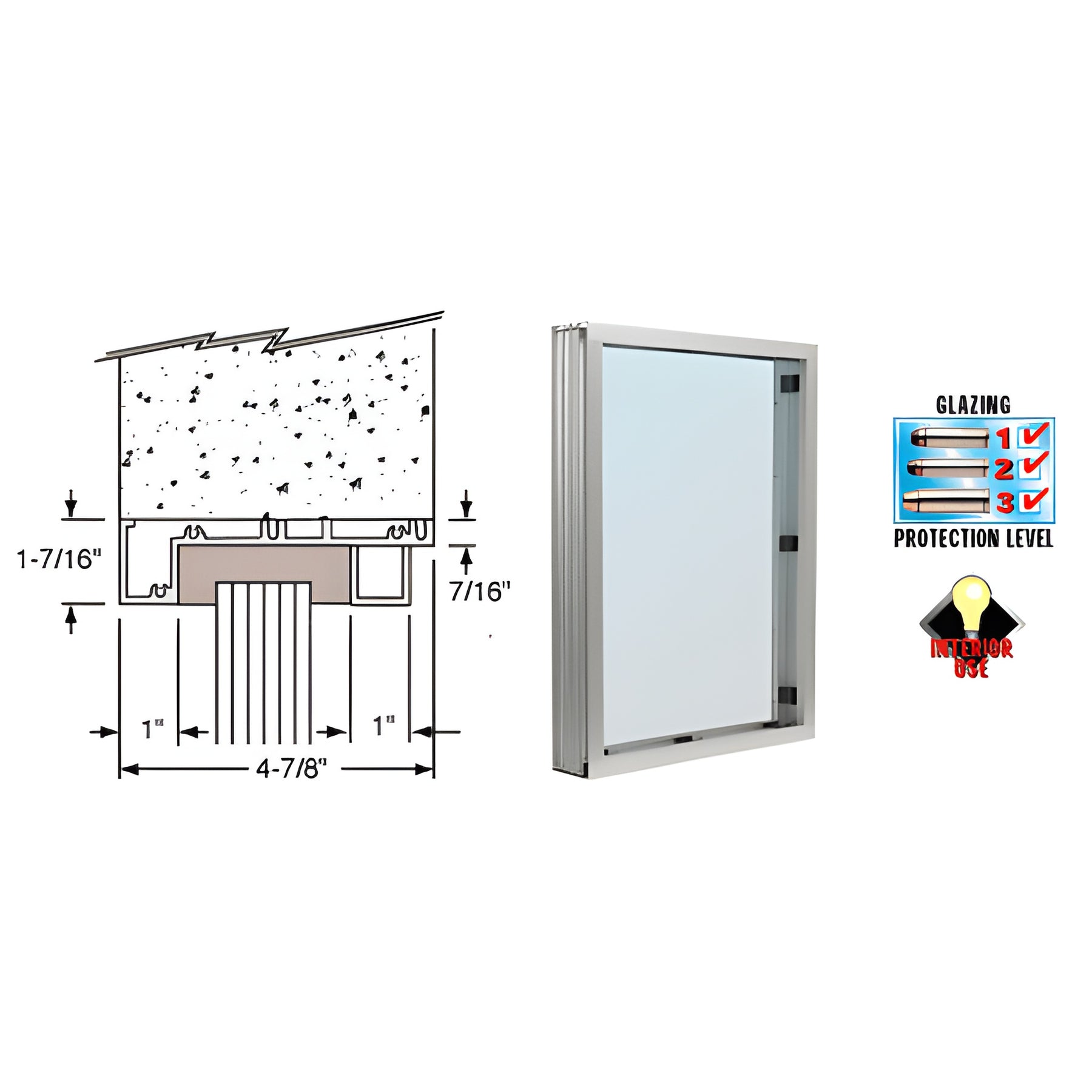

with Surround Sound allow natural voice transmission without an installed speak-thru device. Vision Windows are typically installed above built-in Exchange Drawers, or as sidelites in Multi-Lite Exchange Window units. Frame is designed for walls at least 4-7/8" (124 mm) thick. They are not weather tight, and are recommended for installation only in interior applications. The frame is uniform on four sides. Securing the frame to the wall requires the removal and installation of the glazing material and spacer blocks. Can also be ordered with U-Channel only under glazing to enable access to Drop-In Deal Trays.
SPECIFICATIONS
Materials
Glazing - 1/4" (6 mm) Glass; 1-5/16" (33 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard®; 1-3/8" (35 mm) Level 2 Glass; 1" (25 mm) Level 2 Lexgard®; 1-7/8" (48 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard®
Finishes
Frame - Satin Anodized, Duranodic Bronze, RAL Powder Paint Colors or Custom KYNAR® Paint Colors
Instructions Included
Product Warning
CRL recommends a maximum width of 36" (914 mm) when surround sound is used.
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
