CRL Satin Anodized Aluminum Mirror Frame Extrusion – DIY

• Fabricate custom mirror frames from stock extrusions
• 13/32" (10.5 mm) face exposes maximum mirror surface for larger visible glass area
• Available in several finishes

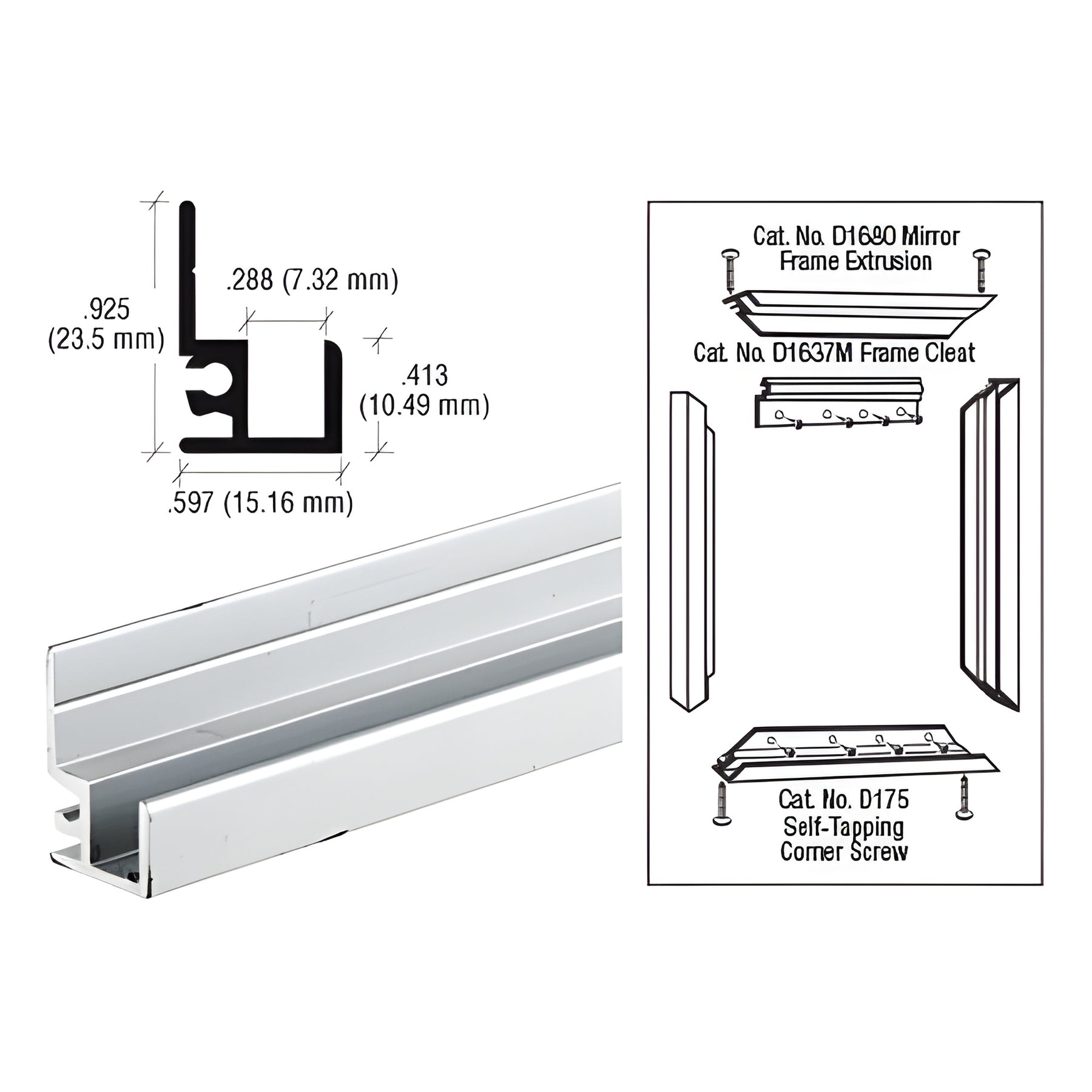

The CRL "Make It Yourself" Mirror Frame Extrusion (SKU: D1680A) is a 13/32" (10.5 mm) face aluminum extrusion designed for DIY mirror frames and custom mirror fabrication. Its shallow face profile increases visible mirror surface and eliminates the need for a backing. When installed with a frame cleat, the gap behind the mirror improves ventilation and helps reduce condensation for longer mirror life. Fabrication is simple: miter cut the frame, drill a 1/8" (3 mm) hole, and assemble with Cat. No. D175 Corner Screws. Stock lengths are 12' (3.66 m).

SPECIFICATIONS:
Material: 6063-T5 aluminum alloy
Thickness: .065" (1.65 mm)
Stock Length: 12' (3.66 m)
Typical Use: Make custom mirror frames, DIY mirror edging, residential and commercial mirror projects.

Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment.

Order SKU D1680A now to build custom aluminum mirror frames with maximum mirror exposure — contact CRL for cut-to-length options and finish availability.
