CRL Satin Anodized Aluminum Multi-Lite Inset Window Frame

• Standard Inset Multi-Lite Frame with Shelf and Deal Tray — ideal for multiple window units in arenas, stadiums, ticket offices, theaters, museums, and walk-up counters
• Drawings and specifications available online

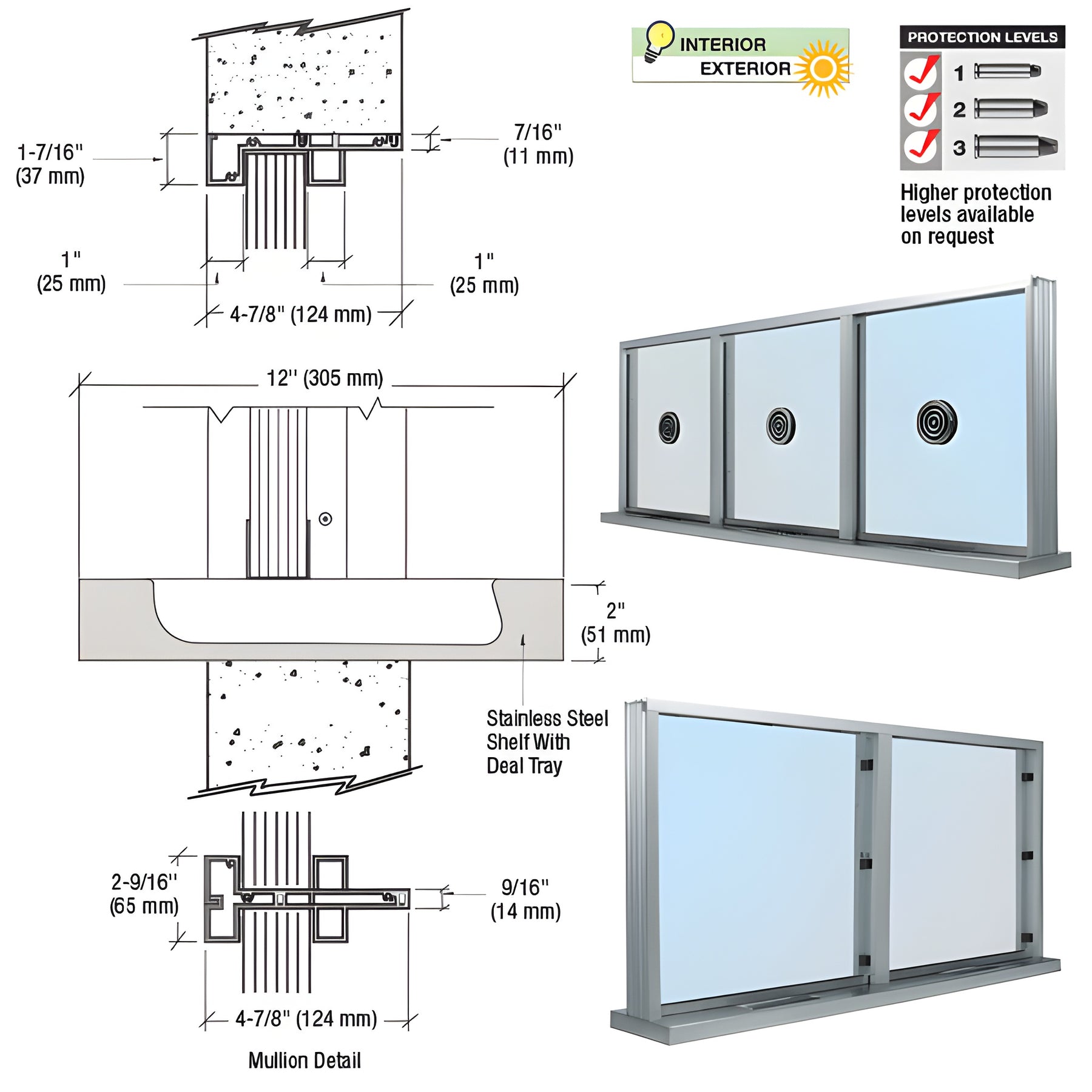

CRL Multi-Lite Standard Inset Frame Windows are designed for multi-station installations such as walk-up ticket counters and payment windows in arenas, stadiums, movie theaters, museums, and other public venues. Configurable window options include deal trays, speak-thrus, stainless-steel shelves, dropdowns, returns, and more. The Standard Inset Frame installs into walls at least 4-7/8" (124 mm) thick; an overhang is recommended for exterior openings. For technical assistance or product drawings for SKU S1SWA, contact the CRL Technical Sales Department.


SPECIFICATIONS:
Materials: Glazing options — 1/4" (6 mm) glass; 1-5/16" (33 mm) Level 1 glass; 1-1/4" (32 mm) Level 1 acrylic; 3/4" (19 mm) Level 1 Lexgard®; 1-3/8" (35 mm) Level 2 glass; 1" (25 mm) Level 2 Lexgard®; 1-7/8" (48 mm) Level 3 glass; 1-3/16" (30 mm) Level 3 glass-clad polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard®; Shelf — stainless steel.
Finishes: Frame — satin anodized, Duranodic bronze, RAL powder coat colors or custom KYNAR® paint; Shelf — brushed stainless steel #4 finish.
Deal Tray: Available with Level 1 or Level 3 protection.
Instructions Included
