CRL
CRL Satin Anodized Aluminum Ticket Window - Service Counter
CRL Satin Anodized Aluminum Ticket Window - Service Counter
Regular price
$3,729.19 CAD
Regular price
Sale price
$3,729.19 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SCW102N
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Satin Anodized
Glazed
Yes
Glazing Thickness
1/4 in. (6 mm)
Glazing Type
Clear Tempered
Height
38 in. (965.2 mm)
Material
Aluminum
Width
24 in. (609.6 mm)
Window Style
Fixed Single Lite
Overview
- Stock Size Ready to Ship — SKU: SCW102N
- Complete with Speak-Thru, Half Round Ticket Window, and Stainless Steel Shelf
- Frame Satin Anodized x Shelf Brushed Stainless Steel
- Drawings and Specifications are Available

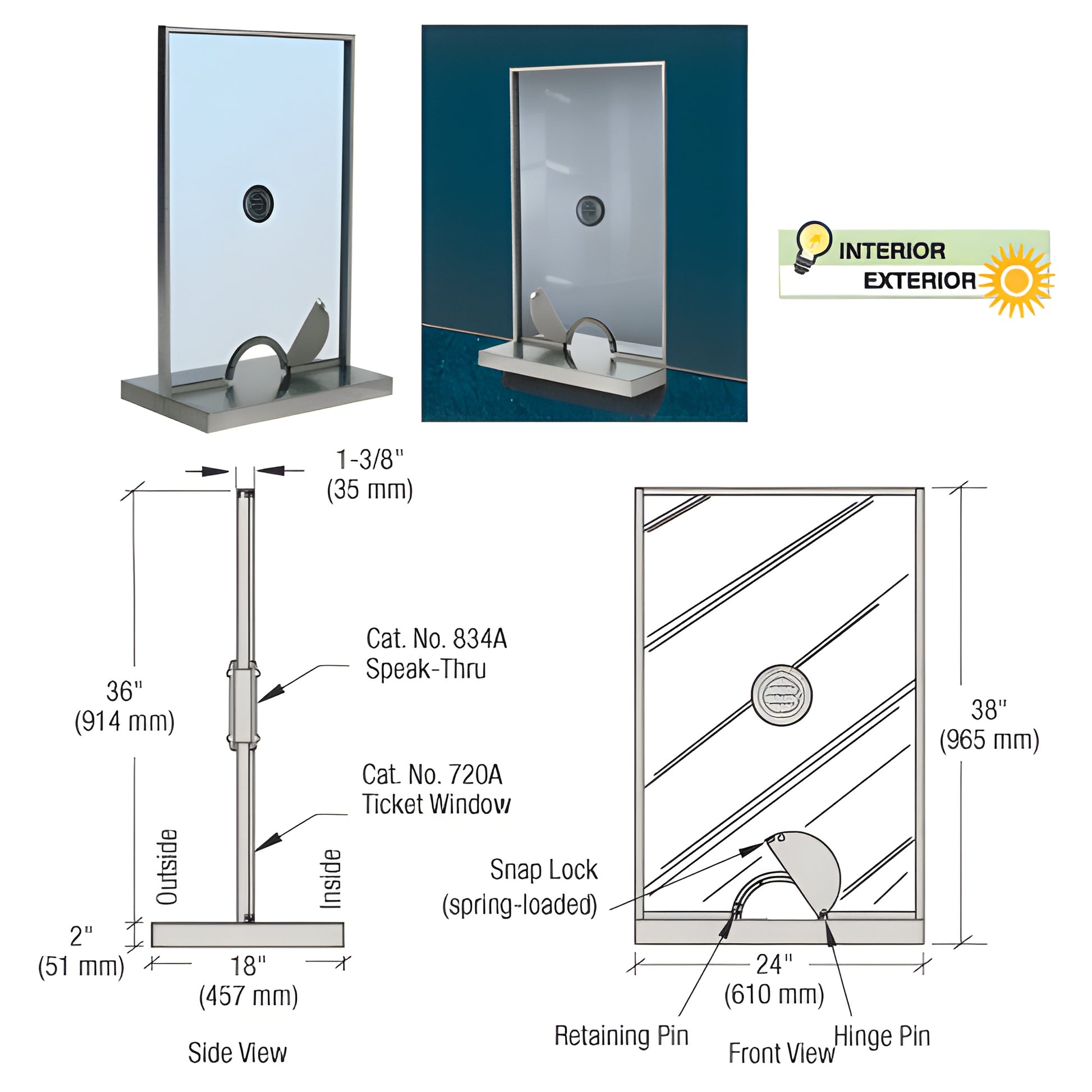

Our CRL Ticket Window (SCW102N) ships ready for immediate installation and is ideal for customer service counters, reception areas, and security ticket stations. The unit features an aluminum-framed stationary 1/4" (6 mm) clear tempered safety glass window, a Cat. No. 834A Speak-Thru, and a Cat. No. 720A Half Round Ticket Window. It rests on a stainless steel shelf measuring 24" (610 mm) wide × 18" (457 mm) deep × 2" (51 mm) thick. Standard units are shipped unattached to the stainless steel shelf for easy onsite attachment.
Key differentiators: satin anodized aluminum frame for corrosion resistance, brushed stainless steel #4 finish shelf for durability, and tempered safety glass for impact protection. Available for custom sizes and finishes to meet ADA, security, or architectural requirements. For exterior installations, an overhang is recommended to protect the glazing and components.
SPECIFICATIONS:
Materials: Aluminum Extrusion; Tempered Safety Glass; Stainless Steel
Finishes: Frame - Satin Anodized; Shelf - Brushed Stainless Steel #4 Finish
Glazing: 1/4" (6 mm) Tempered Safety Glass
Bullet Resistance: Not Rated
Instructions Included
Need custom dimensions or drawings for your ticket window project? Contact CRL Customer Service to request drawings, specifications, or a quote — order your SCW102N ticket window today.
Specifications
CAD Drawings - pdf
