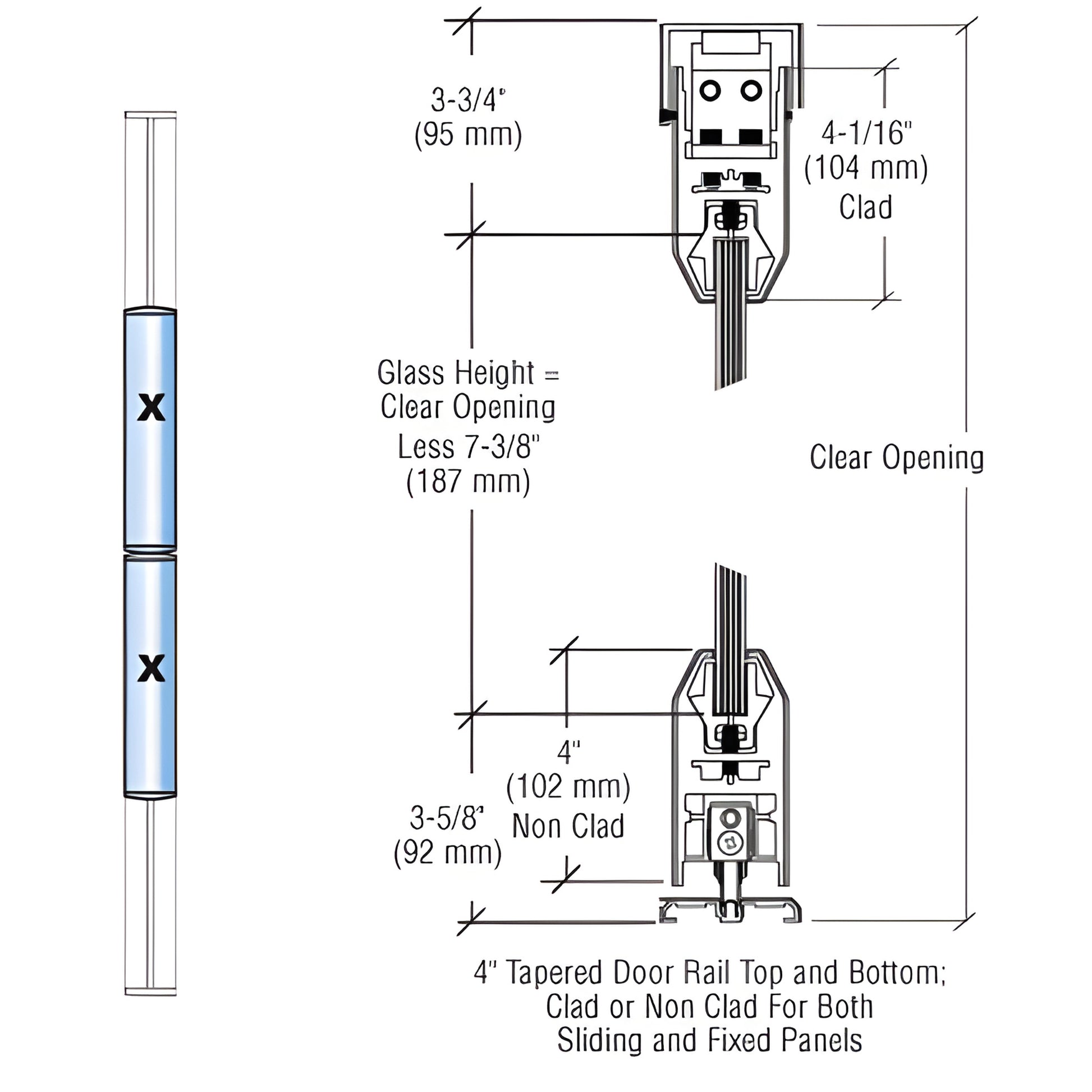

• SDR21BSA bottom-rolling sliding door system diagram, satin anodized, 4" tapered rails, max 108" 48".
1 1

CRL

CRL Satin Anodized Bi-Part SDR Bottom-Rolling Sliding Door Hardware

CRL Satin Anodized Bi-Part SDR Bottom-Rolling Sliding Door Hardware

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# SDR21BSA
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Door Configuration
X X
Door Type
Bi-Part Sliding
Finish/Color
Satin Anodized
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)

Overview

  • With 4" Tapered DR4T Series Door Rails
  • Available in Seven Architectural Finishes

The CRL SDR Bottom Rolling Sliding Door System features 4" (102 mm) tapered DR4T rails top and bottom and uses the patented Wedge-Lock® Glass Securing System for reliable, tool-free glass retention. DR4T Series rails are custom fabricated for door and fixed panels to your specifications. Doors are available with or without locks in the bottom rail. Maximum door width: 48" (1.22 m); maximum door height: 108" (2.74 m); maximum weight: 234 lbs. (106 kg). This bottom rolling sliding door system is ideal for architectural and commercial openings requiring heavy-duty, low-profile hardware and precision glass mounting.

Product Warning:
  • Clad finishes
  • Brushed Stainless
  • Polished Stainless
  • Polished Brass
  • Satin Brass

Shipping weights are approximate. If you need an exact weight to determine shipping costs before ordering, contact CRL Customer Service. Product images represent the actual product or a close representation; colors may vary by monitor settings.

To order or request exact shipping weight and lead times for the SDR21BSA SDR Bottom Rolling Sliding Door System, contact CRL Customer Service today.
