CRL Satin Anodized Custom-Length Glass U-Channel with Top-Load Gasket

• Top Loading Roll-In Gasket for 3/8" & 1/2" glass
• Fits 3/8" (10 mm) and 1/2" (12 mm) glass
• Available in several durable finishes (five options)

This CRL U-Channel with Roll-In Top Load Gasket (SKU: UCSA3812CL) is engineered for use with 3/8" or 1/2" (10 or 12 mm) glass and integrates with CRL Patch Hardware, Header for Overhead Door Closers with Fixed Sidelites, or the Door Rail System. Designed for surface or recess mounting, the roll-in top load gasketing secures glass quickly and cleanly—ideal for commercial storefronts, interior glass partitions, and sidelites where a concealed gasket finish is required. The extrusion is offered in five finishes and includes a family of accessories to support varied installation needs.

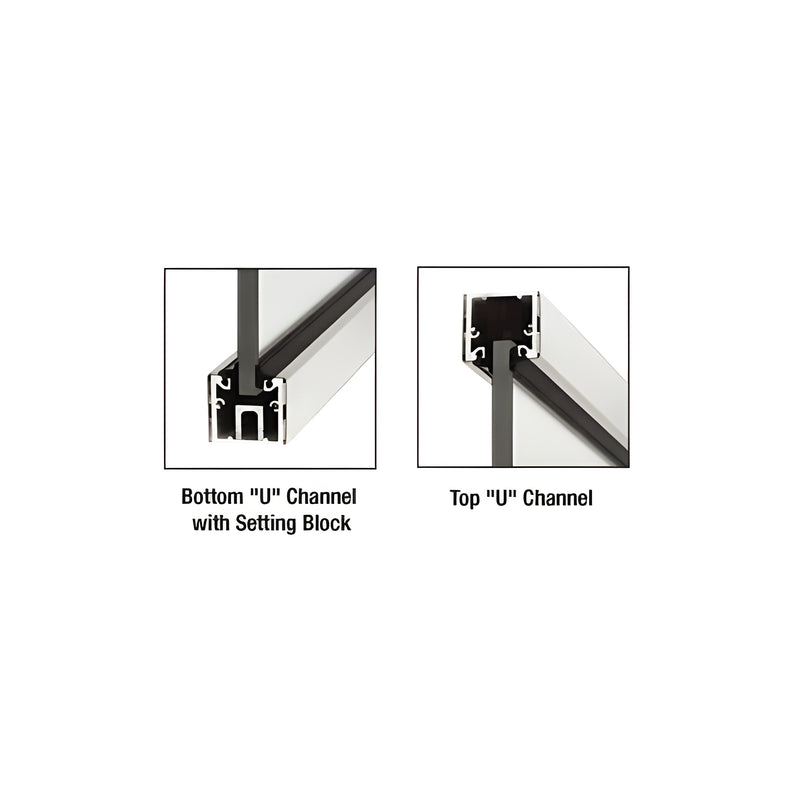

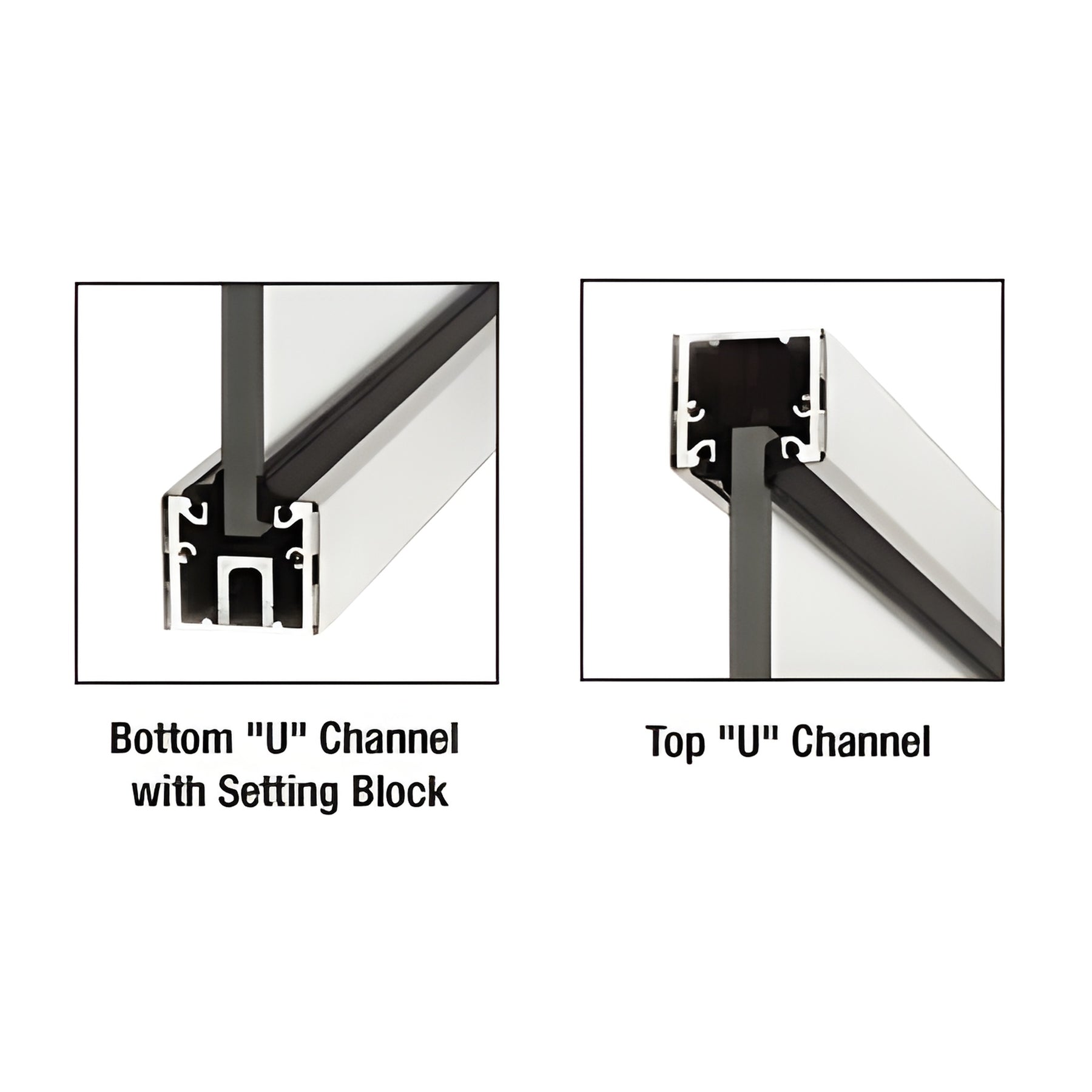

The 4" (102 mm) long Aluminum Setting Blocks with Neoprene provide rigid support in the bottom channel and set the proper height for 9/16" (14.3 mm) glass coverage in both top and bottom channels when glazed with the "lift and drop" method.

Roll-In Top Load Gasketing (sold separately) is available for 3/8" or 1/2" glass in 100' or 500' rolls. Matching finish end caps and other accessories are available to complete installations.

Ordering tip: Specify SKU UCSA3812CL and your preferred finish when ordering. Contact CRL for quotes or to confirm compatibility with your hardware—order now to get the right U-channel and roll-in gasket for your glass project.
