CRL Satin Anodized Extra Depth Aluminum Upper Channel

Buy More, Save More!

Product quantity Discount
Buy 3 2% off
Buy 5 4% off
Buy 10 6% off
Buy 15 8% off
Buy 20 10% off

Overview

SKUD613A
Pack Size1
Shipping LimitationsShipping Quote Required

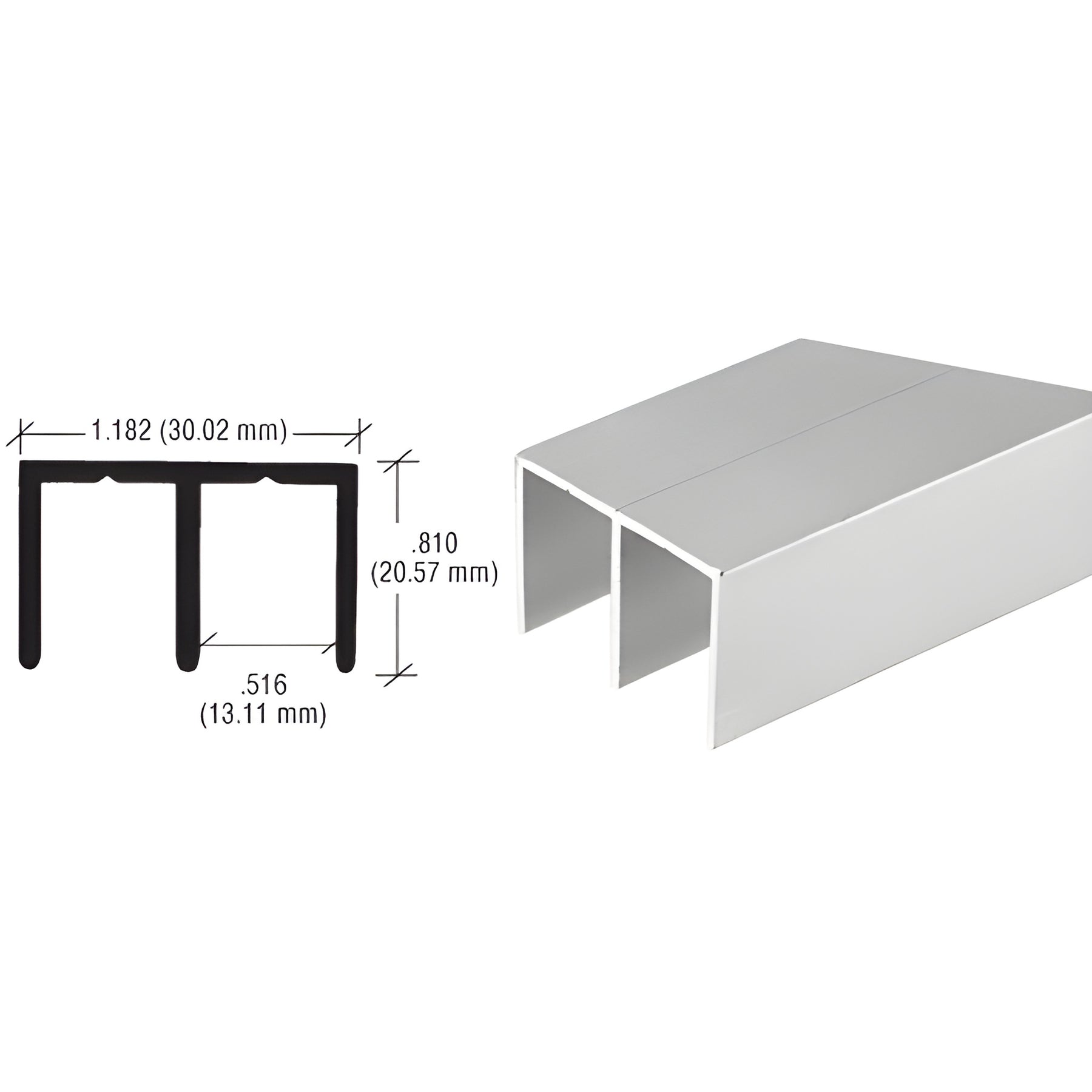

Finish/Color:Satin Anodized
Height0.81 in. (20.6 mm)
Length144 in. (3657.6 mm)
MaterialAluminum
Open Width0.516 in. (13.1 mm)
Width1.182 in. (30 mm)

Description

Product Details

  • Made from the Highest Quality No. 6063 Alloy
  • Available in Several Finishes

This CRL Extra Depth Aluminum Upper Channel is a universal double channel that provides extra depth, which allows sliding panels to be lifted into the track to be placed on bottom rails. The D613 Upper Channel may be used as top, bottom or side channel.

CRL Aluminum Extrusions and Accessories allow you to customize track assemblies to your individual needs. Made from the highest quality, No. 6063 alloy T-5 aluminum, our extrusions are uniformly anodized. Anodizing is the process of electronically adding a thicker coat of oxidizing to aluminum, which protects the metal from scratches, blemishes and atmosphere.

Product Warning:

Stock lengths must ship common carrier unless specifically cut for UPS shipment.
