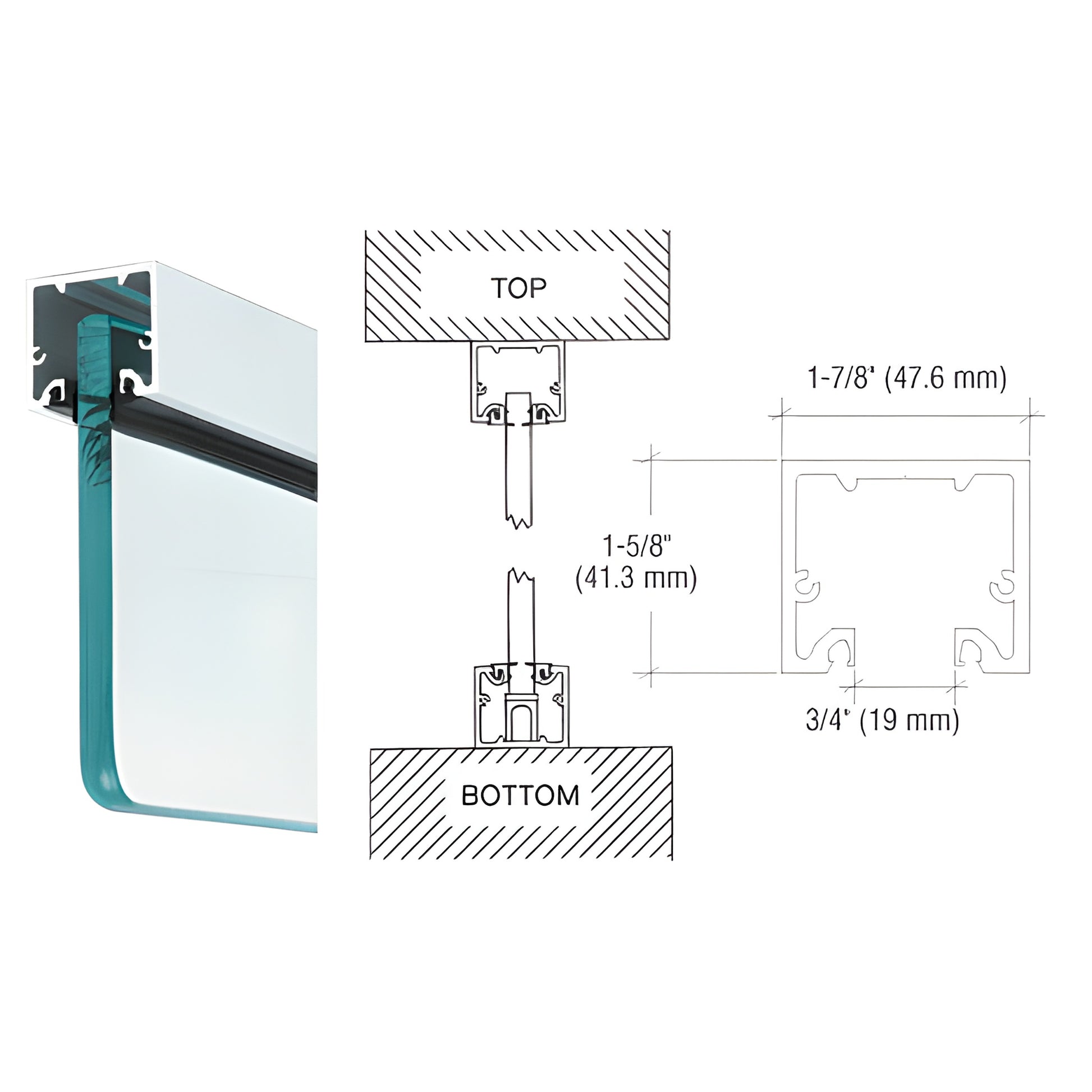

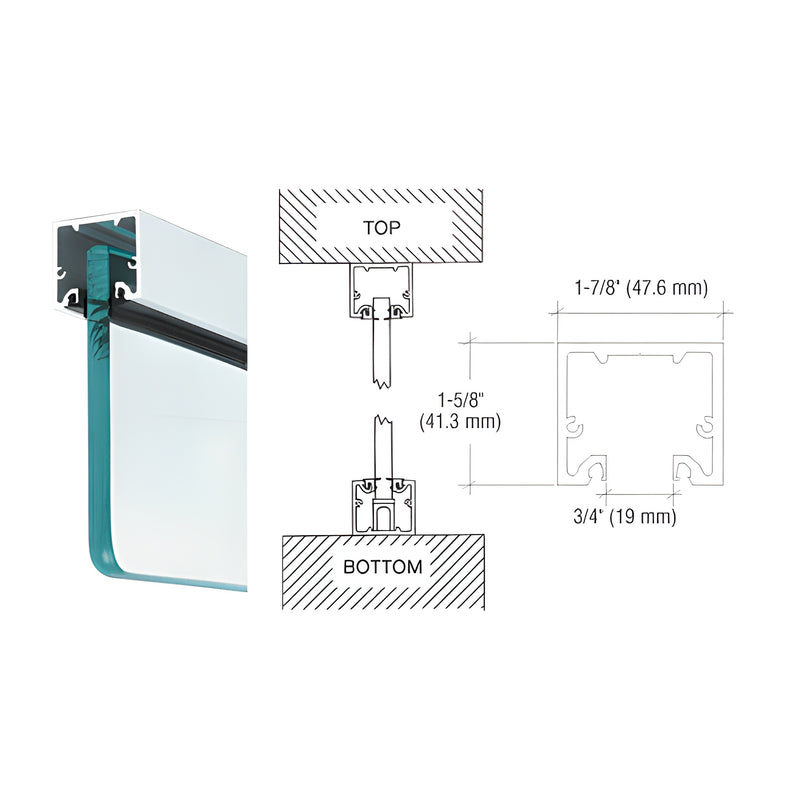

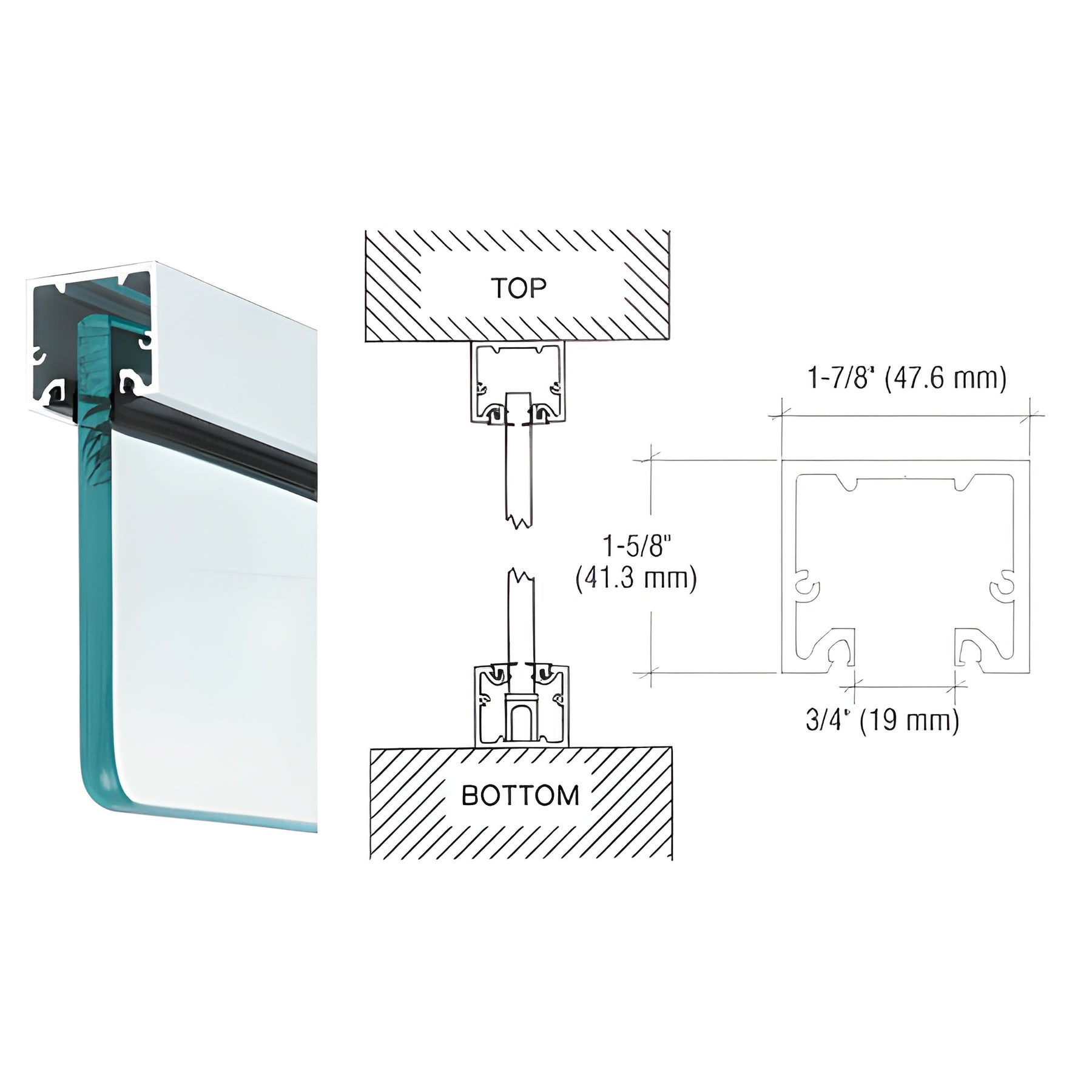

CRL Satin Anodized Glass U-Channel w/ Roll-In Gasket 3/8-1/2, 20ft

• Channels for 3/8" or 1/2" (10 or 12 mm) and 5/8" or 3/4" (16 or 19 mm) glass
• Matches the width of door and sidelite rails for an even sight line
• Designed for use with monolithic tempered glass
• Accepts roll-in glazing gasket, top pivot block, and snap-in filler strip
• Ready-to-ship models from CRL inventory (Quick Pick)
• Available in stock lengths, fabricated headers, or headers with side pockets for "lift and drop" panel installation

This aluminum extrusion (SKU: NH2SA240) was developed for three primary applications:

1. As a U-channel matching our sidelite and door rails—ideal as an aluminum U-channel for glass doors and sidelites.
2. As a narrow header that accepts a top free-swinging pivot to secure the top of doors—useful for storefront and interior glass door headers.
3. As part of an Even Sight Line System: secure the fabricated narrow header to the opening, then attach the sidelite rail to the narrow header with the 1/4" (6 mm) header saddle for consistent sight lines across door and sidelite assemblies.

All drilling, tapping, and fabrication can be completed at manufacture to reduce installation time. This narrow header and U-channel system supports quick installation workflows and fewer on-site modifications.

Quick Pick policy: These products are stocked in a centralized CRL service center and ship on the next weekly re-supply truck to your regional CRL service center. If your regional center is out of stock, your order can typically be filled within a few days. Click the "CHECK STOCK AVAILABILITY" box above to view current inventory.

Order NH2SA240 today to streamline glass door/header installation—check stock availability now.
