Product Details
- Dual Bypassing Panels
- For Light Duty Applications of 50 or Fewer Uses Per Day
- Available in Vertical and Horizontal Formats
- Each Unit is Customized to Fit Your Needs

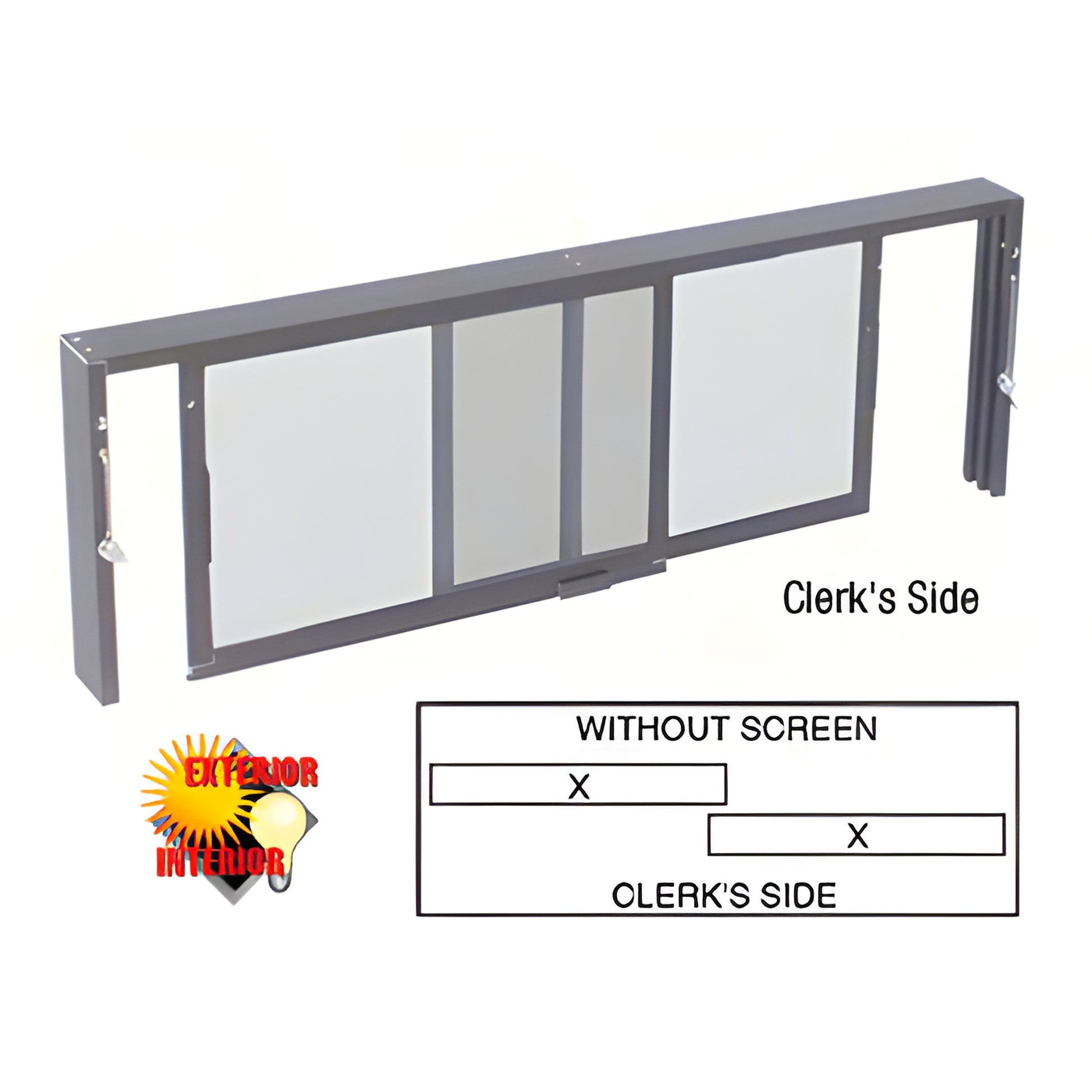

These CRL Horizontal Sliding Service Windows have two bypassing sliding panels that are secured by jamb pins when closed. One or both can be secured at anytime. Models are available non-glazed or pre-glazed with your choice of 1/8" (3 mm) or 1/4" (6 mm) tempered glass, or 1/2" (12 mm) insulating glass, either with or without a screen. All windows are shipped assembled.
NOTE: Surround Frame and Keyed Locks are not available for this window format. An overhang is recommended if used in an exterior application. 42" (1.07 m) is the maximum height for XX windows.
SPECIFICATIONS:
Materials: Extruded Aluminum; Tempered Safety Glass (on some models); Fiberglass Screen (on some models)
Finishes: Satin Anodized, Bronze Anodized, Powder Painted or KYNAR® Painted
Glazing: 1/8" (3 mm) or 1/4" (6 mm) Tempered Glass; 1/2" (12 mm) Insulating Glass (on some models); Vinyl Supplied on All Models, Instructions Included
Product Warning:
Horizontal Service Window Series SW1600 THRU SW5200 Have these Maximum Sizes:
144" (3.66 m) Wide x 36" (914 mm) High (With Restrictions)
EXAMPLE: A 144" (3.66 m) wide window has a maximum height of only 24" (610 mm).
Please be advised that Series SW1600 thru SW5200 windows are intended to be used as Pass-Through Windows. They are not constructed with storefront extrusions, and therefore are not intended for any other use.
No keyed lock is available for series SW4200 through SW4800. They are supplied with a screw-in Pin Lock.
Insulated glass windows, or 1/2" (12 mm) insulated Glass Windows, or 1/2" (12 mm) glass units with screens (Series SW2400, SW3200 and SW4200) are not available with a keyed lock.
