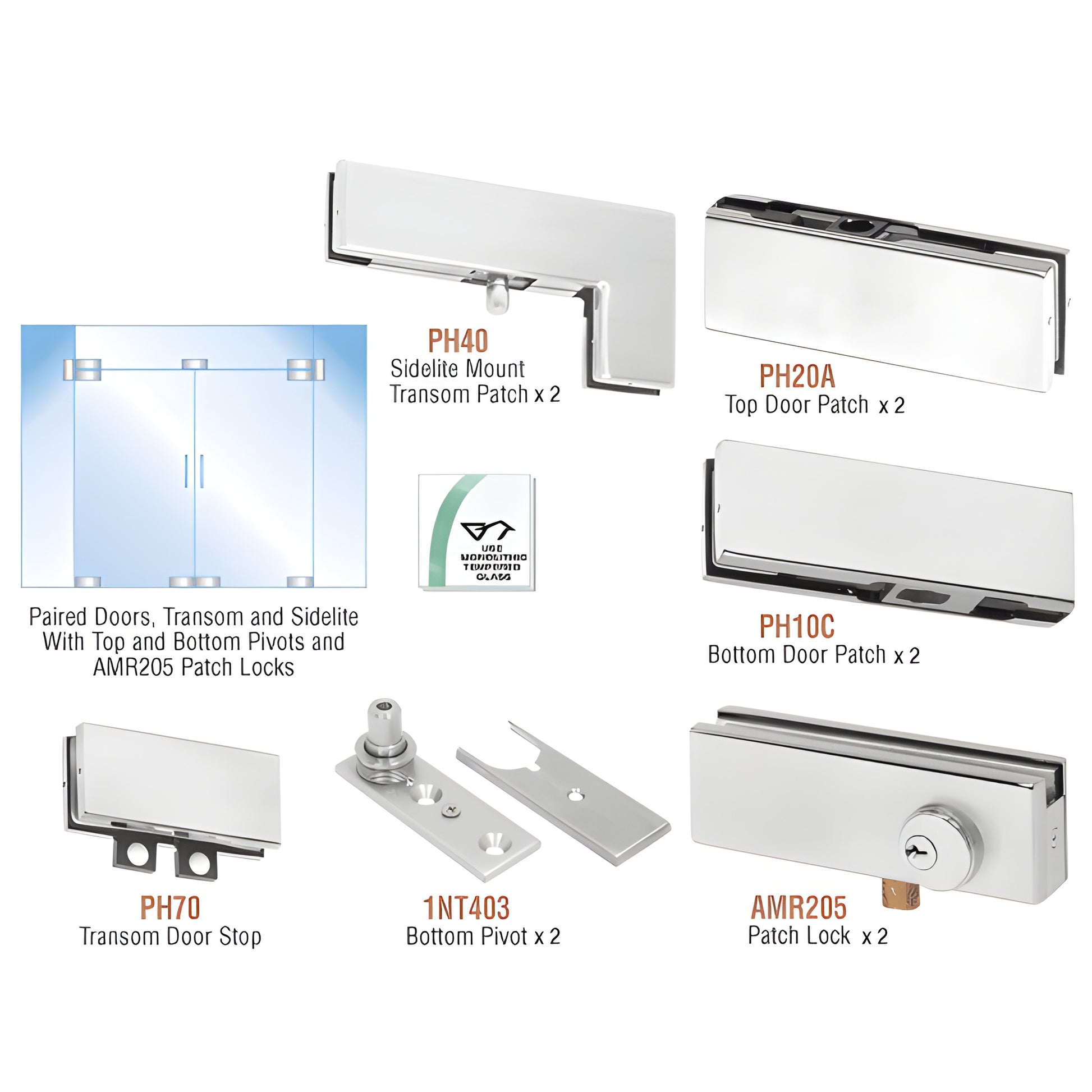

• PHA8LA double glass door hardware kit, satin anodized pivot patches, transom/sidelite mounts, bottom pivots and patch locks
1 1

CRL

CRL Satin Anodized Double Door Patch Kit w/ Lock, Transom & Sidelites

CRL Satin Anodized Double Door Patch Kit w/ Lock, Transom & Sidelites

$1,227.87 CAD
$1,227.87 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PHA8LA
Shipping Weight: 13.15 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Configuration
Sidelite-Pair With Transom-Sidelite
Door Type
F Style Glass Door
Finish/Color
Satin Anodized
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-3/4

Overview

  • For 3/8" or 1/2" (10 or 12 mm) tempered glass
  • Available with or without locks
CRL PHA8 North American Double Door Kits (SKU: PHA8LA)

Complete hardware kit for a pair of free‑swinging glass doors with fixed transom and two sidelites (glass and additional supports for transom/sidelites not included). Pivot setback: 2-3/4" (70 mm). Compatible with a floor closer using a tapered spindle (floor closer ordered separately). Ideal for commercial and residential glass double door applications requiring tempered glass sidelites and transom hardware.

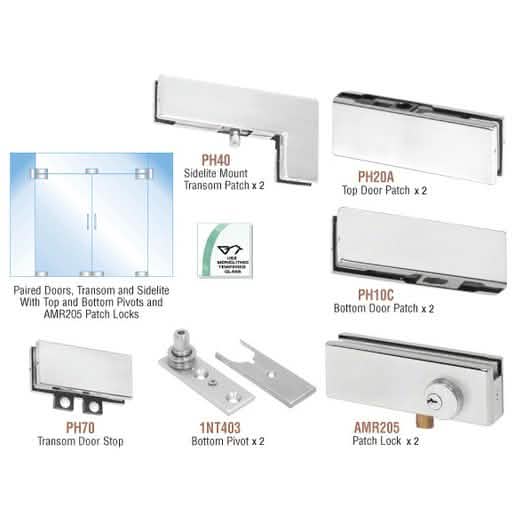

Kit contains:

  • 2 - PH40 Sidelite Mount Transom Patches
  • 2 - PH20A Top Door Patches
  • 2 - PH10C Bottom Door Patches
  • 1 - PH70 Transom Door Stop
  • 2 - 1NT403 Bottom Pivots
  • Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (holes and notches required in the glass)

Kits with locks include two AMR205 patch locks; cylinders, thumbturns, and keepers are ordered separately.

NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.
