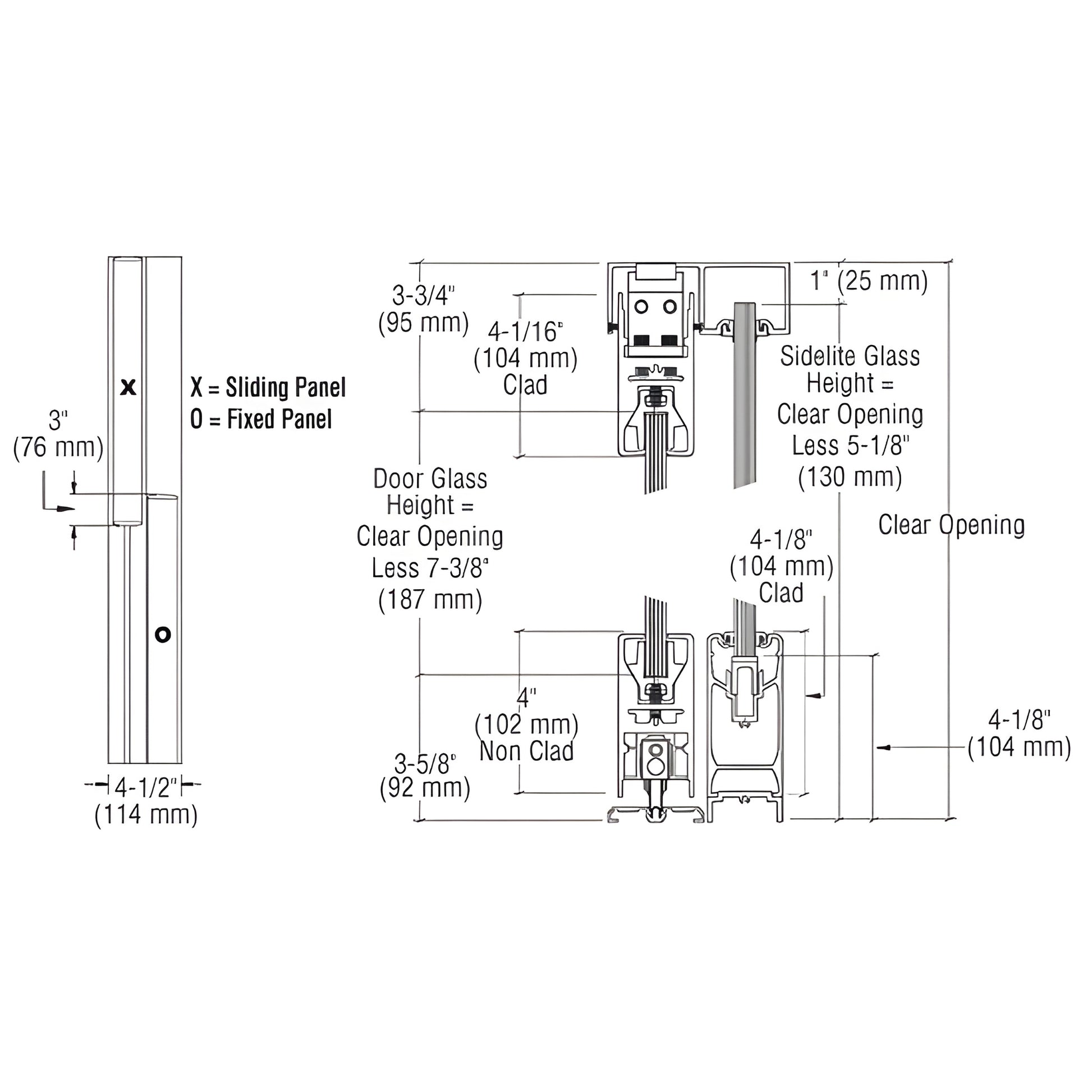

• CRL SSR bottom-rolling sliding door system with 4" square rails, satin anodized, two-panel XO/OX, max 108" 48", SKU 4SSR2CSA
1 1

CRL

CRL Satin Anodized 4 in Square Sliding Glass Door Kit (OX/XO SSR)

CRL Satin Anodized 4 in Square Sliding Glass Door Kit (OX/XO SSR)

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 4SSR2CSA
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Door Configuration
XO or OX
Finish/Color
Satin Anodized
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Panel Count
2

Overview

  • 4" Square DR4S Series Door Rails on sliding panels and 4" Square SR4S Series Sidelite Bottom Rails on fixed panels
  • Available in seven architectural finishes

The CRL SSR Bottom Rolling Sliding Door System with 4" (102 mm) square rails features the Wedge-Lock® Glass Securing System used in the DR4S Series for secure, tool-free glass retention. Bottom rails can be specified with or without keyed locks for enhanced security.

Fixed sidelites use SR4S Series rails with roll-in vinyl at the bottom and an integrated glazing channel with roll-in vinyl in the top track for weathertight performance. Maximum door width is 48" (1.22 m) and maximum door height is 108" (2.74 m); maximum panel weight is 234 lb (106 kg). All panels are custom fabricated to your specifications for a precise fit. SKU: 4SSR2CSA

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs for your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary depending on your monitor's settings.

Specify finish and lock options when ordering. Contact CRL for a quote or technical assistance.
