CRL OXO Format Satin Anodized Sliding Door System - 4" Top, 6" Bottom
CRL OXO Format Satin Anodized Sliding Door System - 4" Top, 6" Bottom
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 6SDR3ESA
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Door Configuration
OXO
Finish/Color
Satin Anodized
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Panel Count
3
Overview
- With 4" Square DR4S Series Door Rails and 6" Square DR6S Series Bottom Rails
- Available in Seven Architectural Finishes
The CRL SDR Bottom Rolling Sliding Door System (SKU 6SDR3ESA) features 4" (102 mm) square top rails and 6" (152 mm) square bottom rails and uses the proven Wedge-Lock® Glass Securing System from the DR4S and DR6S series. This bottom-rolling sliding door system is custom fabricated to your specifications and can be ordered with or without bottom-rail locks. Maximum door width: 48" (1.22 m); maximum door height: 108" (2.74 m); maximum door weight: 234 lb (106 kg).
Highlight: durable bottom-rolling hardware with Wedge-Lock® glass retention and seven architectural finishes for custom commercial and residential sliding door projects.
Order or request a quote for SKU 6SDR3ESA — contact CRL Customer Service today.
Specifications

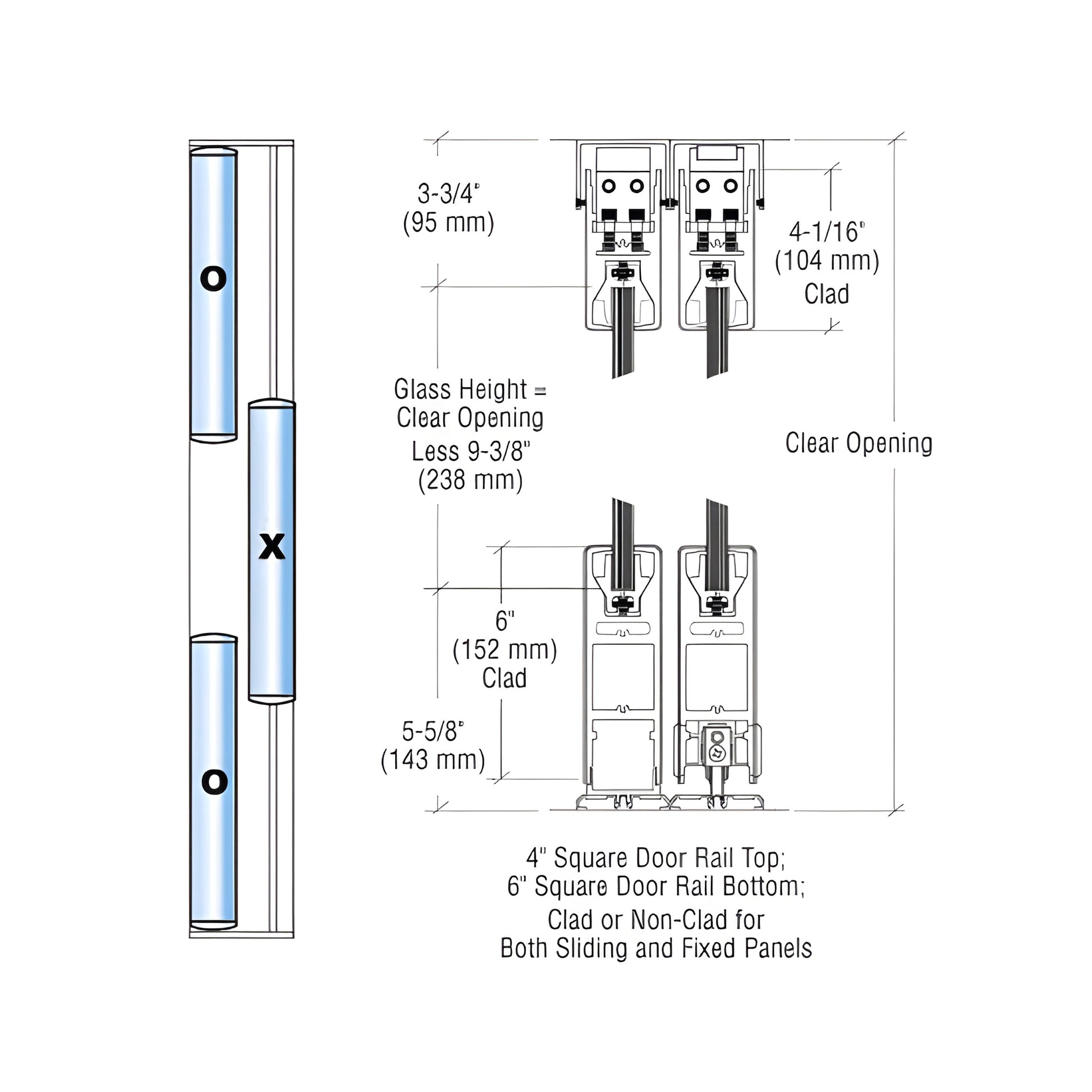

CAD Drawings - pdf
