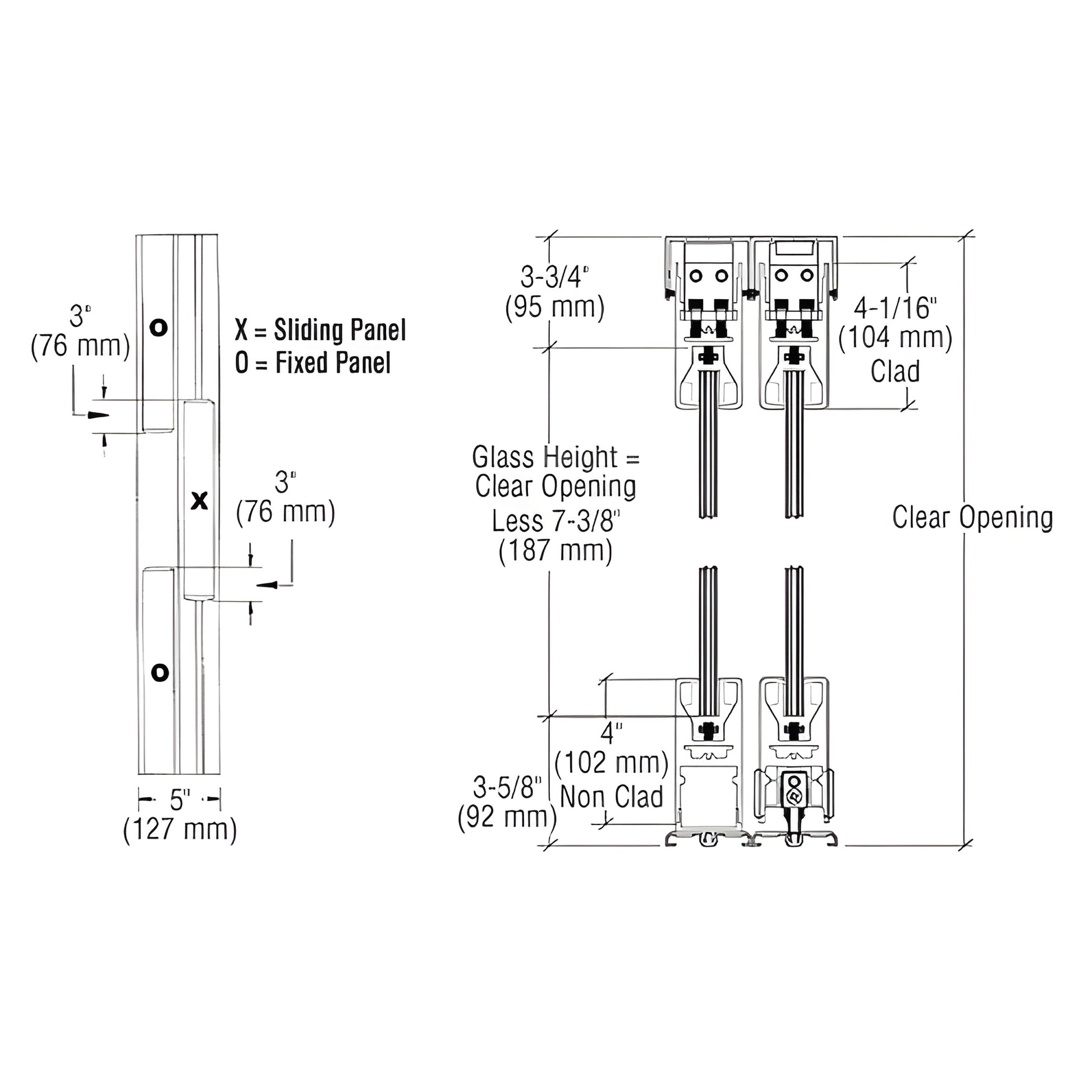

• Technical CAD drawing of SDR bottom rolling sliding door rails and profiles with dimensions, 4" satin anodized (SKU 4SDR3ESA)
1 1

CRL

CRL OXO Satin Anodized Sliding Door Entrance System 4" Square Rail

CRL OXO Satin Anodized Sliding Door Entrance System 4" Square Rail

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 4SDR3ESA
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Satin Anodized
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Panel Count
3

Overview

  • With 4" Square DR4S Series Door Rails
  • Available in Seven Architectural Finishes

The CRL SDR Bottom Rolling Sliding Door System features 4" (102 mm) square rails top and bottom and uses the proven Wedge-Lock® Glass Securing System for secure, low-profile glass retention. DR4S Series door and fixed-panel rails are custom fabricated to your specifications and accommodate bottom-rolling operation for smooth, space-saving performance. Doors are available with or without locks integrated into the bottom rail for added security when needed. Designed for residential and commercial applications, this bottom rolling sliding door system supports a maximum door width of 48" (1.22 m), maximum height of 108" (2.74 m), and a maximum door weight of 234 lb (106 kg).

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs prior to completing your order, please contact CRL Customer Service. Product images are of the actual product or a close representation; colors may vary depending on your monitor and settings.


Choose from seven architectural finishes and specify custom rail fabrication to match your project—order the SDR bottom rolling sliding door system today.
