CRL OXO Format Satin Anodized Sliding Door System - 4" Tapered Rails
CRL OXO Format Satin Anodized Sliding Door System - 4" Tapered Rails
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SDR3ESA
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Door Configuration
OXO
Door Type
Sliding
Finish/Color
Satin Anodized
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Overview
- With 4" Tapered DR4T Series Door Rails
- Available in Seven Architectural Finishes
CRL SDR Bottom Rolling Sliding Door System (SKU: SDR3ESA) features 4" (102 mm) tapered DR4T top and bottom rails and the patented Wedge-Lock® Glass Securing System for secure, clean glass retention. DR4T rails are custom fabricated to your specifications for both door and fixed panels. Doors are available with or without locks integrated into the bottom rail.
Key sizing limits: maximum door width 48" (1.22 m) • maximum door height 108" (2.74 m) • maximum weight 234 lb (106 kg). Ideal for commercial and residential bottom rolling sliding glass doors, frameless sliding door applications, and architectural interior partitions.
Available in seven architectural finishes — specify finish and custom rail fabrication when ordering. Order SDR3ESA today to get custom-fabricated tapered rails for durable, smooth bottom-rolling sliding door performance.
Specifications

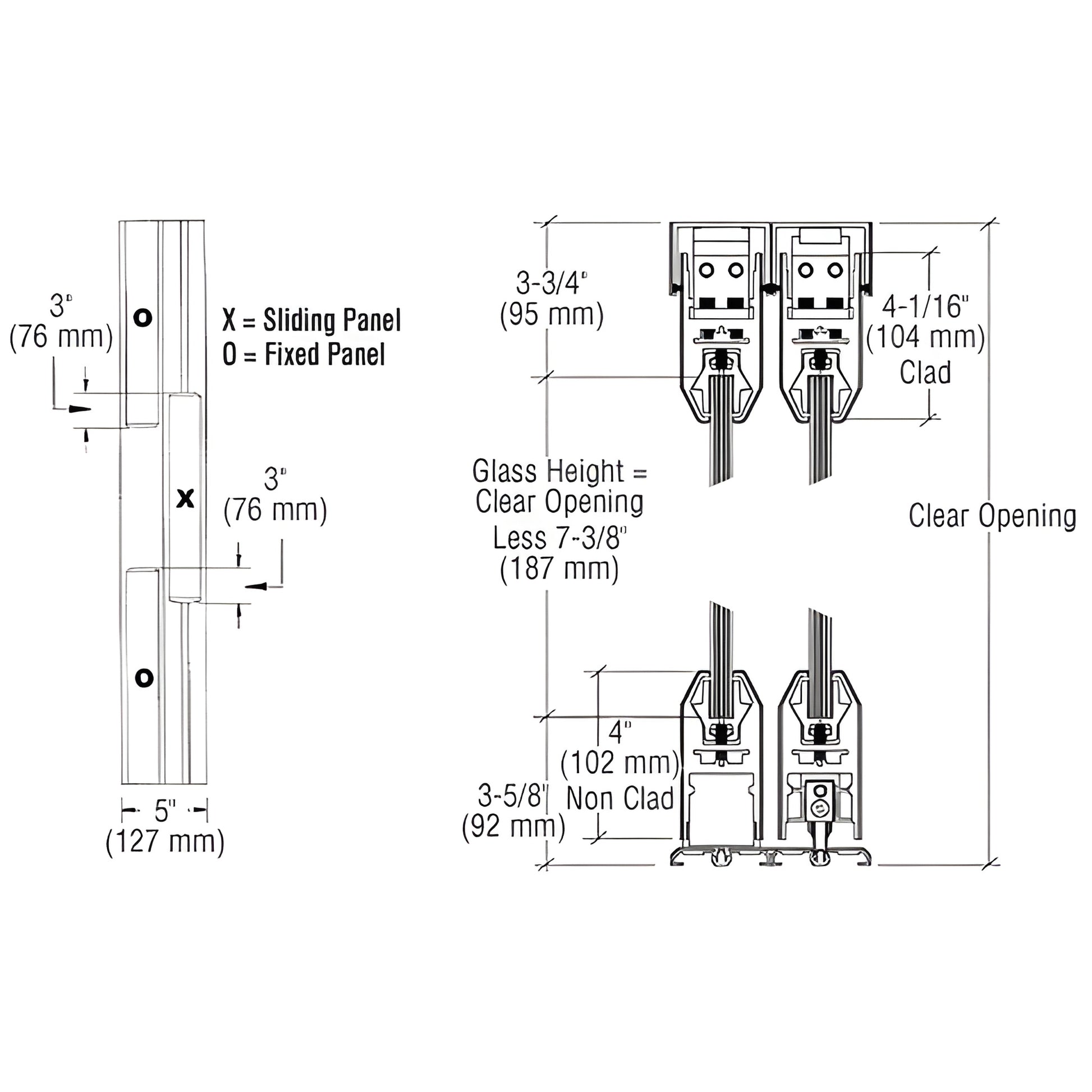

CAD Drawings - pdf
