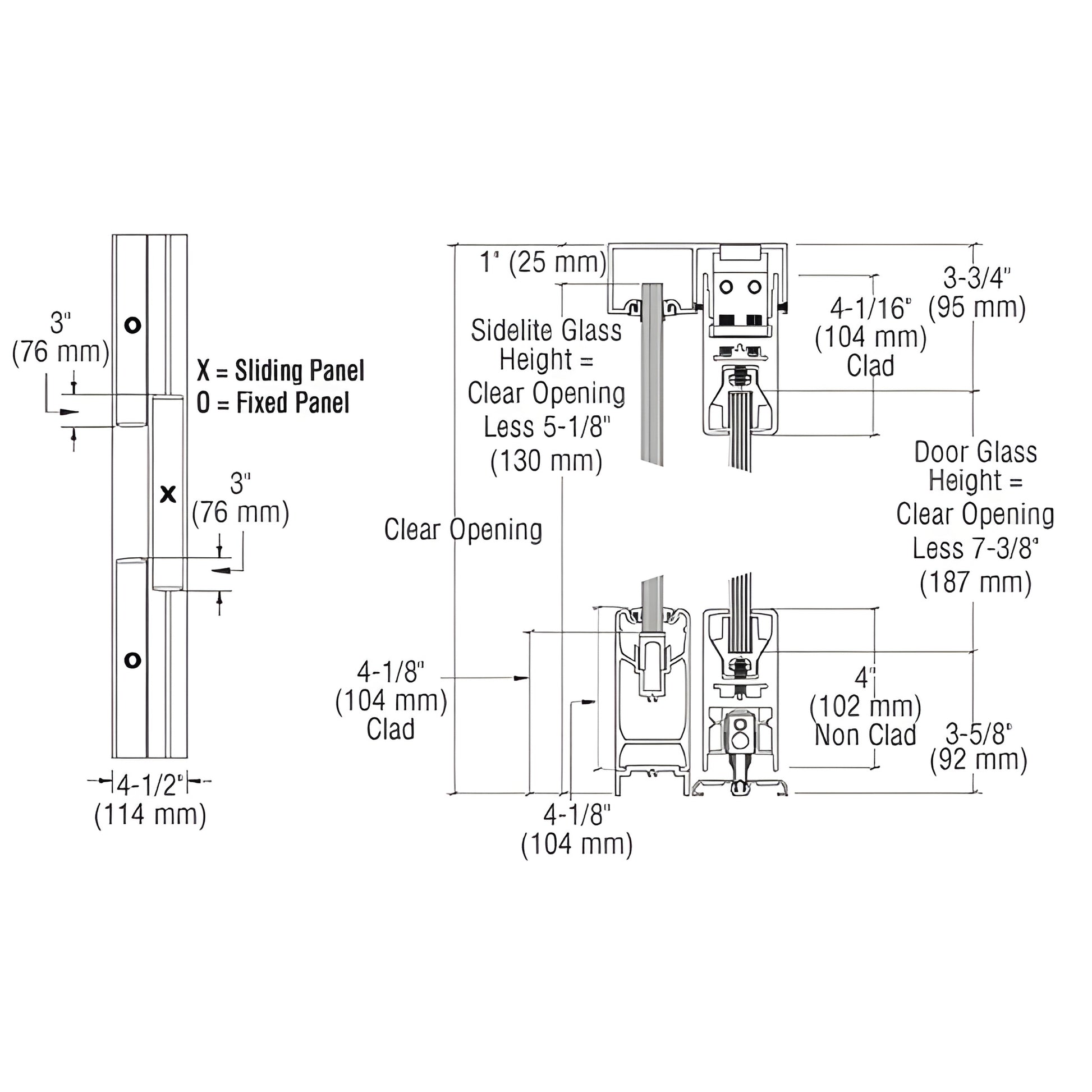

• CRL SSR bottom-rolling sliding door system SKU 4SSR3ESA - 3-panel OXO, 4 in satin anodized rails, CAD dimension drawing
1 1

CRL

CRL OXO SSR 4" Satin Anodized Square Sliding Door Hardware Kit

CRL OXO SSR 4" Satin Anodized Square Sliding Door Hardware Kit

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 4SSR3ESA
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Door Configuration
OXO
Finish/Color
Satin Anodized
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Panel Count
3

Overview

  • With 4" Square DR4S Series Door Rails and 4" Square SR4S Series Sidelite Bottom Rails
  • Available in Seven Architectural Finishes

The CRL SSR Bottom Rolling Sliding Door System (SKU: 4SSR3ESA) features 4" (102 mm) square rails and the proven Wedge-Lock® Glass Securing System used in DR4S Series door rails for secure, frameless-style glass panels. Bottom rails for sliding panels can be specified with or without locks.


Fixed sidelite panels use SR4S Series sidelites with roll-in vinyl at the bottom and an integrated glazing channel with roll-in vinyl in the top track. Maximum door width: 48" (1.22 m). Maximum door height: 108" (2.74 m). Maximum panel weight: 234 lb (106 kg). All panels are custom fabricated to your project specifications.


Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.


Available in seven architectural finishes for exterior and interior applications—order custom sizes and finishes to meet your design requirements. Contact CRL to request a quote or technical assistance.
