CRL OXXO Satin Anodized Sliding Door 4in Top/Bottom Square Rail
CRL OXXO Satin Anodized Sliding Door 4in Top/Bottom Square Rail
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 4SDR4FSA
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Door Configuration
OXXO
Finish/Color
Satin Anodized
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Panel Count
4
Overview
- With 4" Square DR4S Series Door Rails
- Available in Seven Architectural Finishes

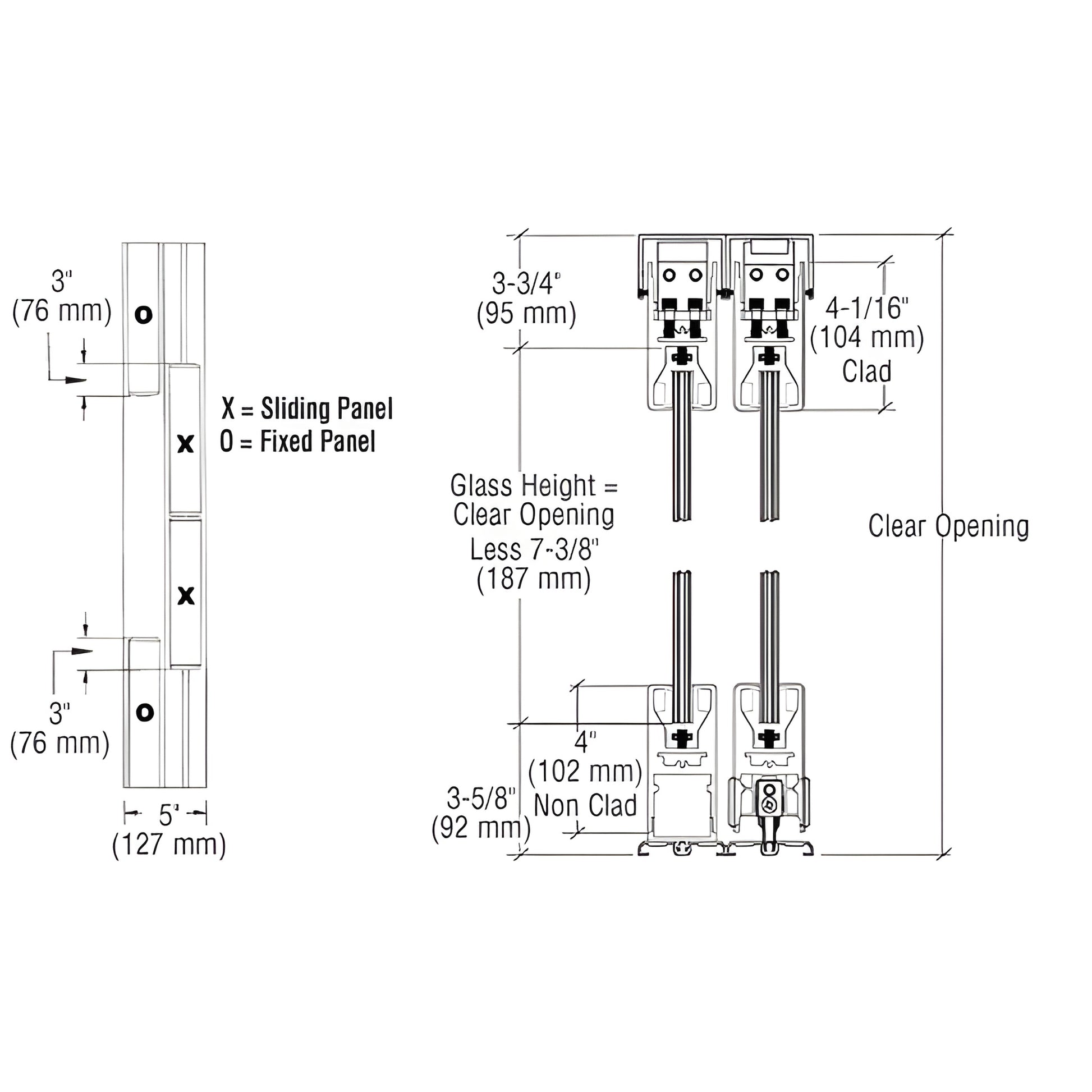

The CRL SDR Bottom Rolling Sliding Door System with 4" (102 mm) Square Rails—top and bottom—uses the proven Wedge-Lock® Glass Securing System for reliable glass retention. DR4S Series door rails are custom fabricated to your specifications for both door and fixed panels and can be ordered with or without bottom-rail locks. Designed for commercial and residential applications, this bottom-rolling sliding door system supports a maximum door width of 48" (1.22 m), maximum door height of 108" (2.74 m), and a maximum door weight of 234 lbs. (106 kg). SKU: 4SDR4FSA.
For pricing, finish options, or to request exact shipping weights, contact CRL Customer Service to order this bottom rolling sliding door system with 4" square rails.
Specifications
CAD Drawings - pdf
