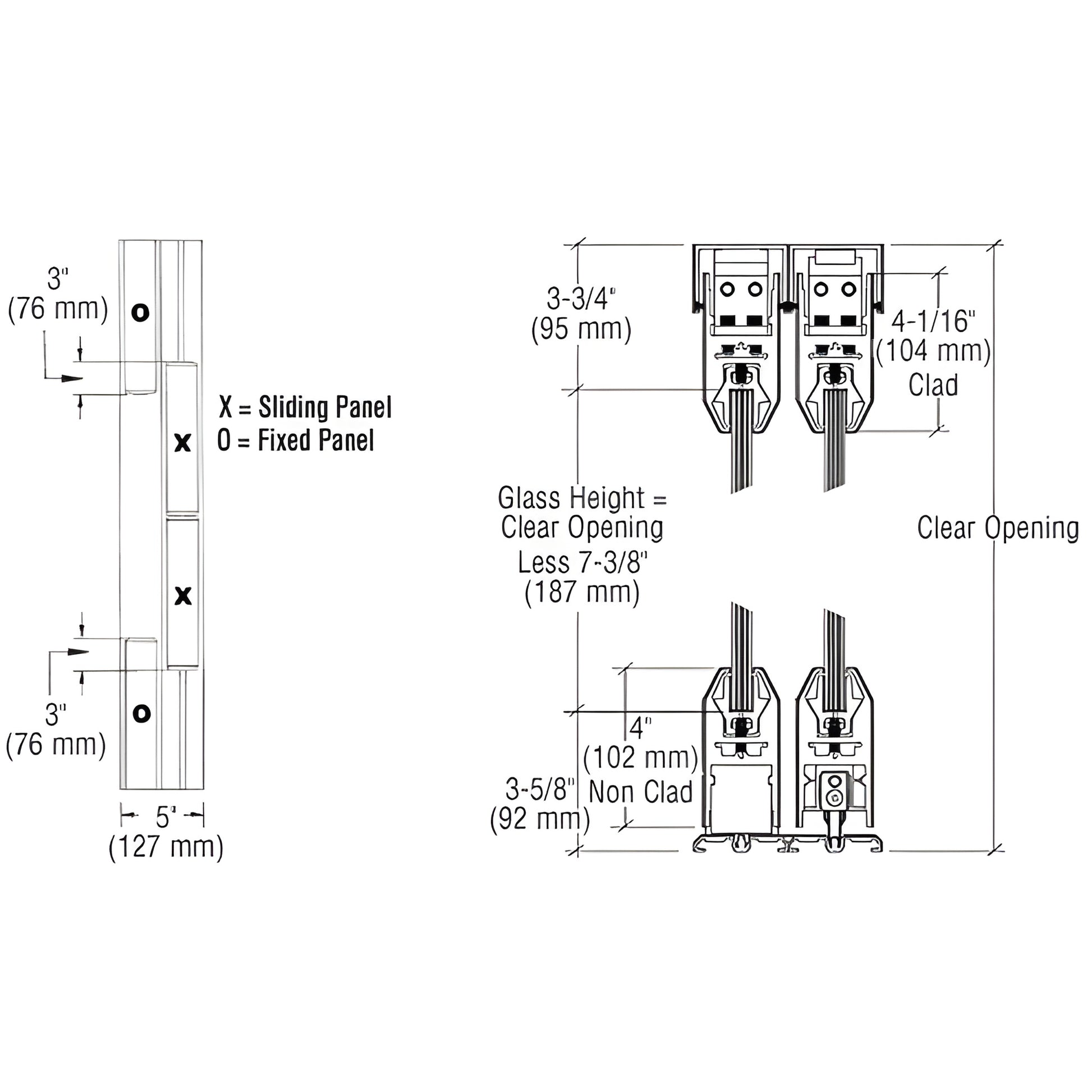

• Technical drawing of CRL SDR4FSA bottom-rolling sliding door system, OXXO config, 4" tapered rails, dimensions and glass spec
1 1

CRL

CRL OXXO Sliding Door System Satin Anodized 4 in Tapered Rails

CRL OXXO Sliding Door System Satin Anodized 4 in Tapered Rails

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# SDR4FSA
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Door Configuration
OXXO
Door Type
Sliding
Finish/Color
Powder Coated
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)

Overview

  • With 4" Tapered DR4T Series Door Rails
  • Available in Seven Architectural Finishes

The CRL SDR Bottom Rolling Sliding Door System (SKU: SDR4FSA) features 4" (102 mm) tapered DR4T rails top and bottom and our proven Wedge-Lock® Glass Securing System for reliable glass retention. DR4T Series door and fixed-panel rails are custom fabricated to your project specifications and support bottom-rolling sliding doors up to 48" (1.22 m) wide, 108" (2.74 m) high, and up to 234 lb (106 kg). Available in seven architectural finishes, this bottom rolling sliding door system is ideal for commercial and residential storefronts, interior partitions, and heavy-glass sliding applications where durable, low-profile 4-inch tapered rails and secure glass anchoring matter.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this from CRL Customer Service before submitting your order. Product images are actual or close representations; colors may vary by monitor and video-card settings.

Order the CRL SDR4FSA Bottom Rolling Sliding Door System or contact CRL for custom rail fabrication and finish options.
