CRL OXXO SSR 4-inch Satin Anodized Square Sliding Door Hardware
CRL OXXO SSR 4-inch Satin Anodized Square Sliding Door Hardware
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 4SSR4FSA
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Door Configuration
OXXO
Finish/Color
Satin Anodized
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Panel Count
4
Overview
- With 4" Square DR4S Series Door Rails and 4" Square SR4S Series Sidelite Bottom Rails
- Available in Seven Architectural Finishes

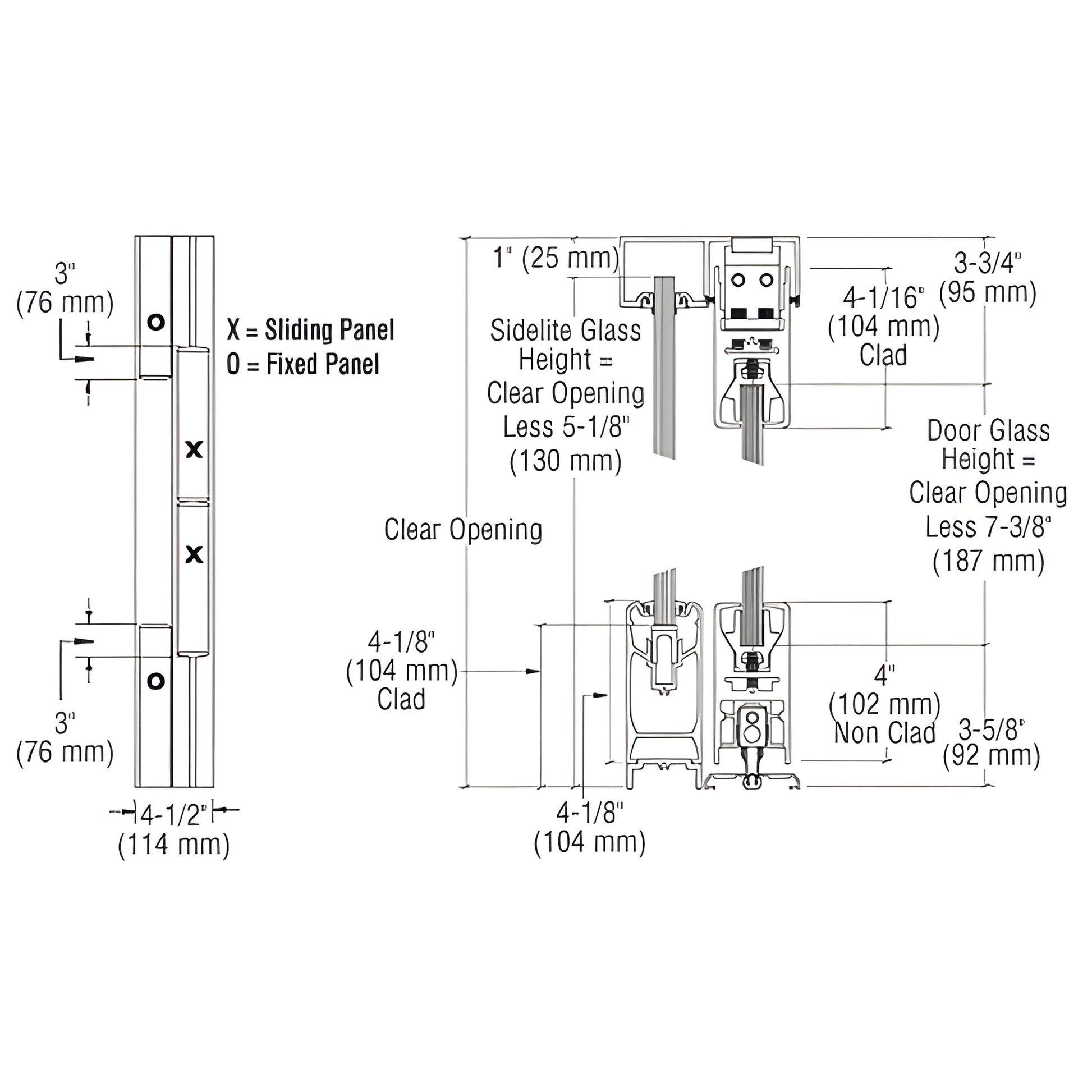

The CRL SSR Bottom Rolling Sliding Door System (SKU: 4SSR4FSA) features 4" (102 mm) square rails and the proven Wedge-Lock® Glass Securing System used in DR4S Series door rails. Bottom rails for sliding panels can be specified with or without locks for enhanced security and flexibility.
Fixed sidelites use SR4S Series rails with roll-in vinyl at the bottom and an integrated glazing channel with roll-in vinyl in the top track for smooth operation and weather resistance. Maximum door width: 48" (1.22 m); maximum height: 108" (2.74 m); maximum panel weight: 234 lb (106 kg). All panels are custom fabricated to your project specifications for a true architectural fit.
Specifications
CAD Drawings - pdf
