• RS200A rotating drum service window, satin anodized aluminum frame, 1/4" tempered glass, built-in speak thru, 15 5/8 36 in.
1 1

CRL

CRL Satin Anodized Rotating Pass-Through Service Window

CRL Satin Anodized Rotating Pass-Through Service Window

$3,780.86 CAD
$3,780.86 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# RS200A
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Depth
13-3/4 in. (349.3 mm)
Finish/Color
Satin Anodized
Frame Depth
1-3/8 in. (34.9 mm)
Glazing Thickness
1/4 in. (6 mm)
Glazing Type
Clear Tempered
Height
36 in. (914.4 mm)
Material
Aluminum
Width
15-5/8 in. (396.9 mm)

Overview

  • For Drive-Thru or Walk-Up Service Windows
  • Satin Anodized or Bronze Anodized Finishes
  • Built-In Speak-Thru Included

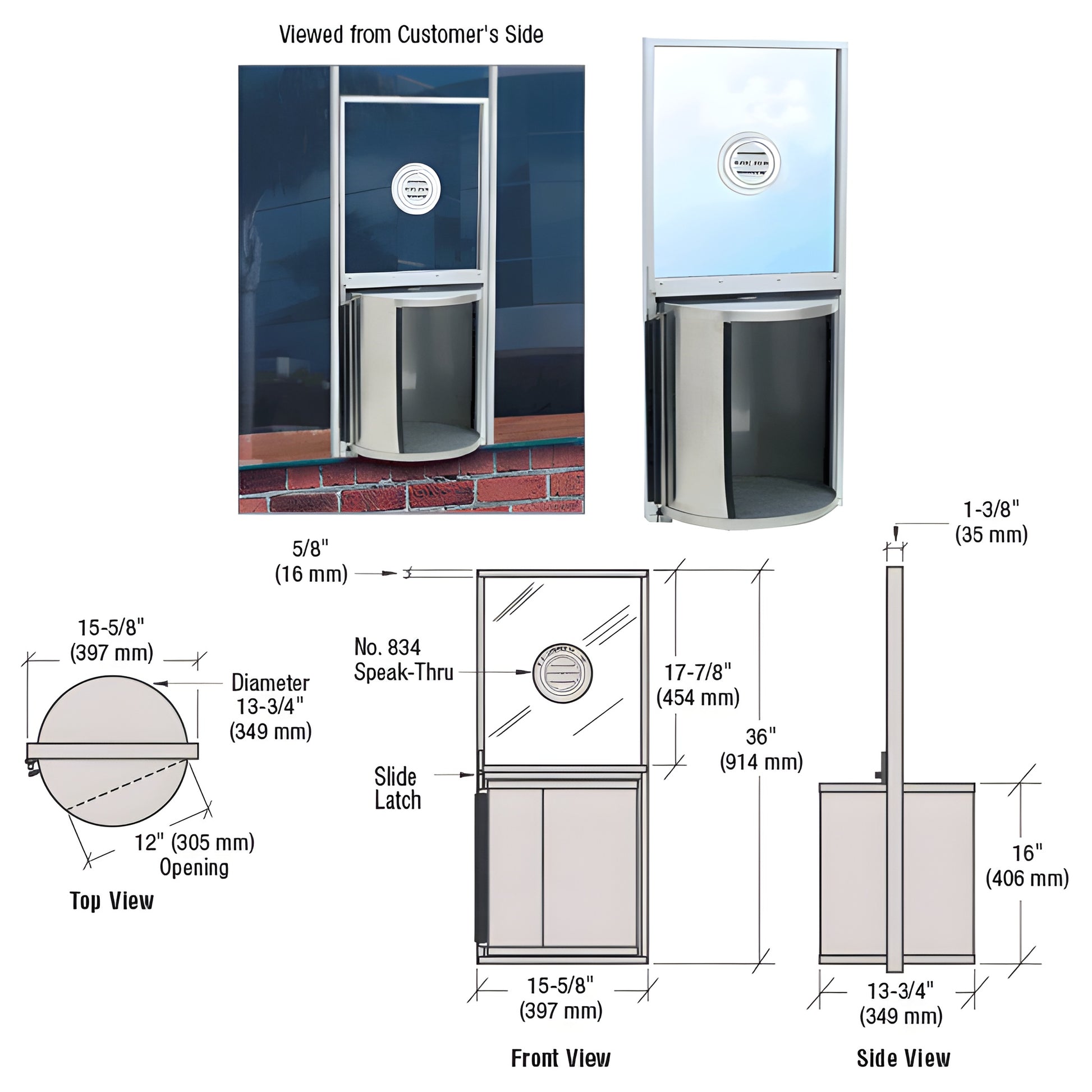

Our convenient CRL Rotating Drum Service Window (SKU: RS200A) provides a secure pass-through solution for serving packaged goods from enclosed areas. Designed for drive-thru and walk-up service windows, the unit features a satin anodized or bronze anodized aluminum frame, a fixed 1/4" (6 mm) clear tempered safety glass panel, and a Cat. No. 834 No-Draft Speak-Thru in the upper portion for clear communication. The lower portion contains a 16 gauge stainless steel Rotating Drum that offers secure pass-through with a built-in latch to prevent unwanted rotation. Entire unit rough opening: 16-1/8" wide x 36-1/4" high (410 x 921 mm).


SPECIFICATIONS:
Materials: Aluminum extrusion; tempered safety glass; 16 gauge stainless steel drum
Finishes: Drum — brushed stainless steel; Frame — satin anodized or Duranodic bronze
Glazing: 1/4" (6 mm) clear tempered safety glass
Speak-Thru: Cat. No. 834 No-Draft aluminum, finish to match frame
Instructions Included


Product Warning:

Ship via common carrier recommended due to size, weight and packaging to minimize damage.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor settings.



Ideal for secure service windows and drive-thru security pass-through applications — order the RS200A Rotating Drum Service Window today or contact CRL for a quote and exact shipping weight.
