CRL Satin Anodized Bi-Fold Service Window, Self-Closing Flush Mount

• Hip-Activated Opening Feature (hip-activated slide bar)
• Self-Closing Bi-Fold Configuration
• Stock and Custom Sizes Available
• Satin Anodized, Bronze Anodized, and Custom Finishes Available
• Drawings and Specifications Available

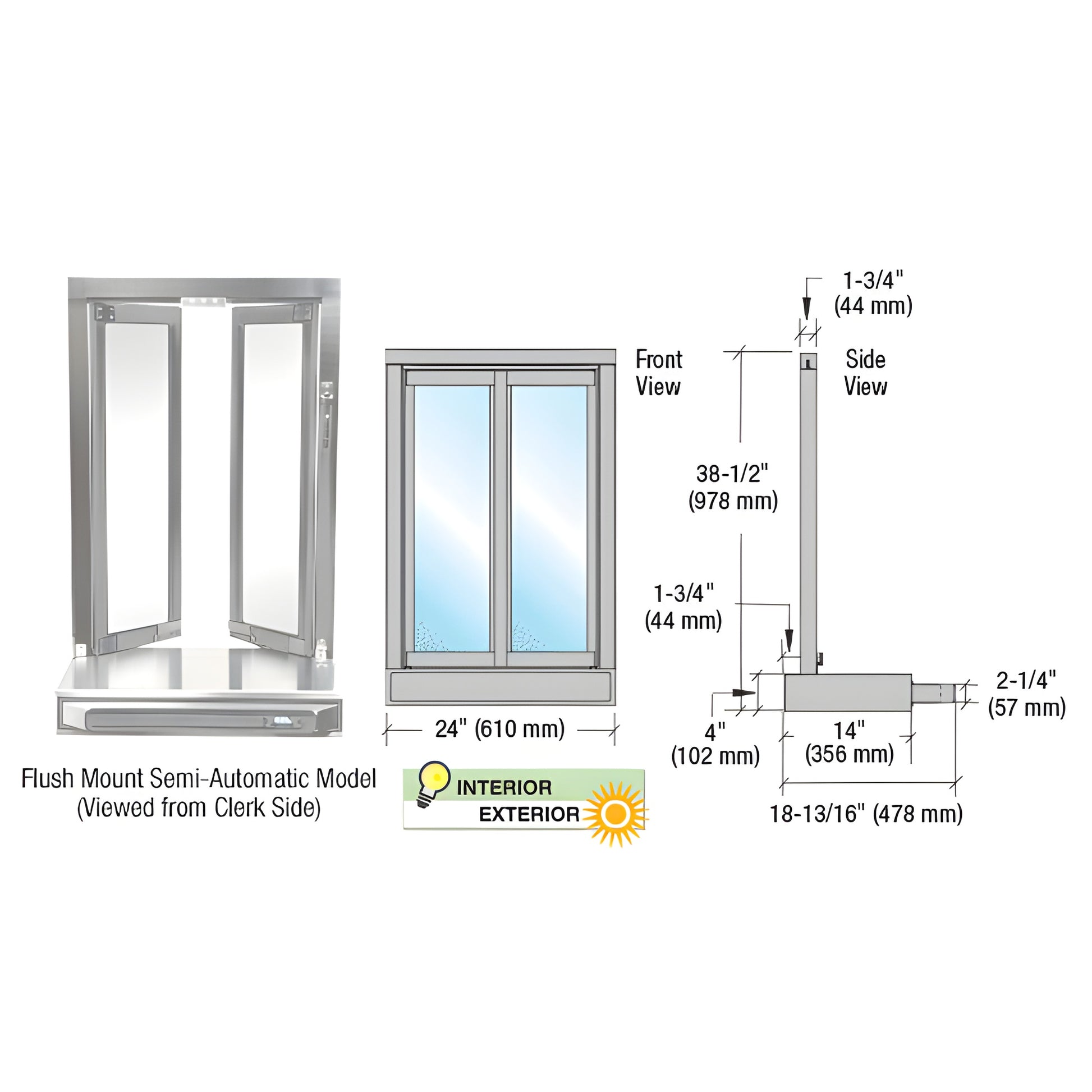

CRL Bi-Fold Service Windows (SKU: SCBFW1A) are engineered for high-traffic service openings where a durable, secure bi-folding window is required. Key differentiators include dual panels that open outward toward the customer for full access, an integrated burglar bar for enhanced security, and a hip-activated slide bar for fast semi-automatic operation—ideal for concession stands, ticket booths, and customer service counters.

Available Models & Operation
MANUAL — Both panels move simultaneously when either panel is manually operated.

SEMI-AUTOMATIC — Push the hip-activated slide bar to open; step away and the panels automatically self-close for hands-free service. Custom sizes and custom paint colors available by special order. For project support, contact CRL Technical Sales.

SPECIFICATIONS
Materials: Aluminum extrusions; pile weatherstrip; glazing vinyl; stainless steel shelf
Glazing: 1/4" (6 mm) clear tempered glass
Stock Finishes: Satin anodized, bronze anodized (custom finishes available)
Bi-Fold Configuration: Self-closing with optional semi-automatic hip-activated operation
To Determine Rough Opening: Add 1/2" (12 mm) to width, 1/4" (6 mm) to height

Order or request drawings/specifications for SKU SCBFW1A today — contact CRL Technical Sales for custom sizing and finish options.
