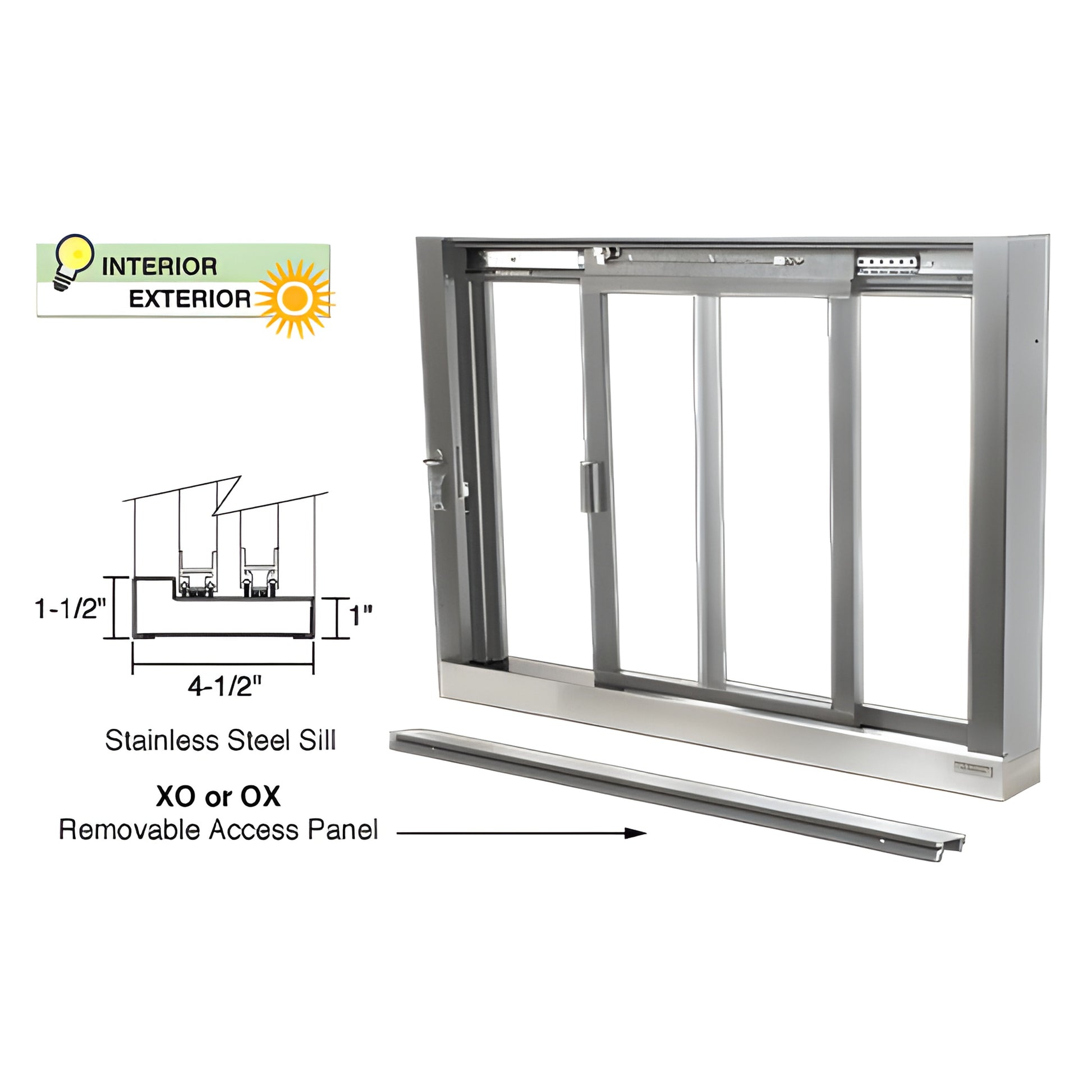

CRL Satin Anodized Self-Closing Sliding Service Window with SS Sill

• Each unit custom fabricated to fit opening (SKU: SCDW1803A)
• One fixed and one sliding panel configuration for secure transactions
• Includes self-closing mechanism and self-latching handle for fast‑food and high‑traffic use
• Removable header access panel for easy servicing and maintenance
• Drawings and specifications available for permit and installation planning
• Available in stock and custom finishes, including KYNAR® and RAL powder coat

CRL "SCDW" Series Service Windows feature a factory-built self-closing design commonly required by the fast food and retail industries. These durable aluminum pass-through windows are engineered for interior or exterior installations and both high- and low-usage applications, with heavy-duty components for trouble-free operation.

We custom-build each service window to your dimensions and installation needs. Our team will coordinate glazing, sill conditions, and transaction hardware options so you receive a service window that meets your performance, security, and aesthetic requirements. Drawings and specifications are available to assist architects and contractors.

SPECIFICATIONS:
Materials: Aluminum extrusions; pile weatherstrip; glazing vinyl; stainless steel shelf or sill
Finishes: Satin anodized, Duranodic bronze, RAL powder painted, or KYNAR® painted
Glazing Options: 1/4" to 1/2" (6–12 mm) tempered, laminated, or tinted glass; 1/2" (12 mm) insulating glass unit
Option: Fly fan switch available
To Determine Rough Opening: Add 1/2" (12 mm) to width and 1/4" (6 mm) to height of frame, including track, sill, or shelf.

NOTE: 26" (660 mm) is the minimum frame width for SCDW Series windows.


Contact CRL Technical Sales to request drawings, obtain a quote, or discuss custom finishes and hardware for your SCDW1803A service window.
