Product Details
- Smooth Sliding Action
- Commercial and Residential Applications
- Pass-Thru Windows, Trophy Cases, Showcases, Book Cases, Gun Cases, Medical Cabinets and China Cases
- D712 Upper Channel
- D610 Shoe
- D650 Rollers
- D602 Rail Components for D2200A D602A (x1) D610A (x12) D650 (x12) D712GRY (x1) Product Warning: Stock lengths must ship common carrier unless specifically cut for UPS shipment. General glass cutting dimensions: If the customer wants a very tight fit they should figure their own dimensions. The dimensions shown are just guideline dimensions that are satisfactory for most situations. Glass height = opening minus 1-5/16".
This CRL Rolling Track Assembly has a gray plastic upper channel with an aluminum shoe and flat, single piece, lower rail. The nylon rollers allow up to 1/4" (6 mm) glass doors effortless sliding. This assembly can be used for residential and commercial installations.
NOTE: General Glass Cutting Dimensions Guidelines
Glass Height = Opening Minus 1-5/16" (33.3 mm)
If an extremely tight fit is required, the customer should calculate glass deductions while fabricating the unit, but the guidelines as stated above are satisfactory to most of our customers.

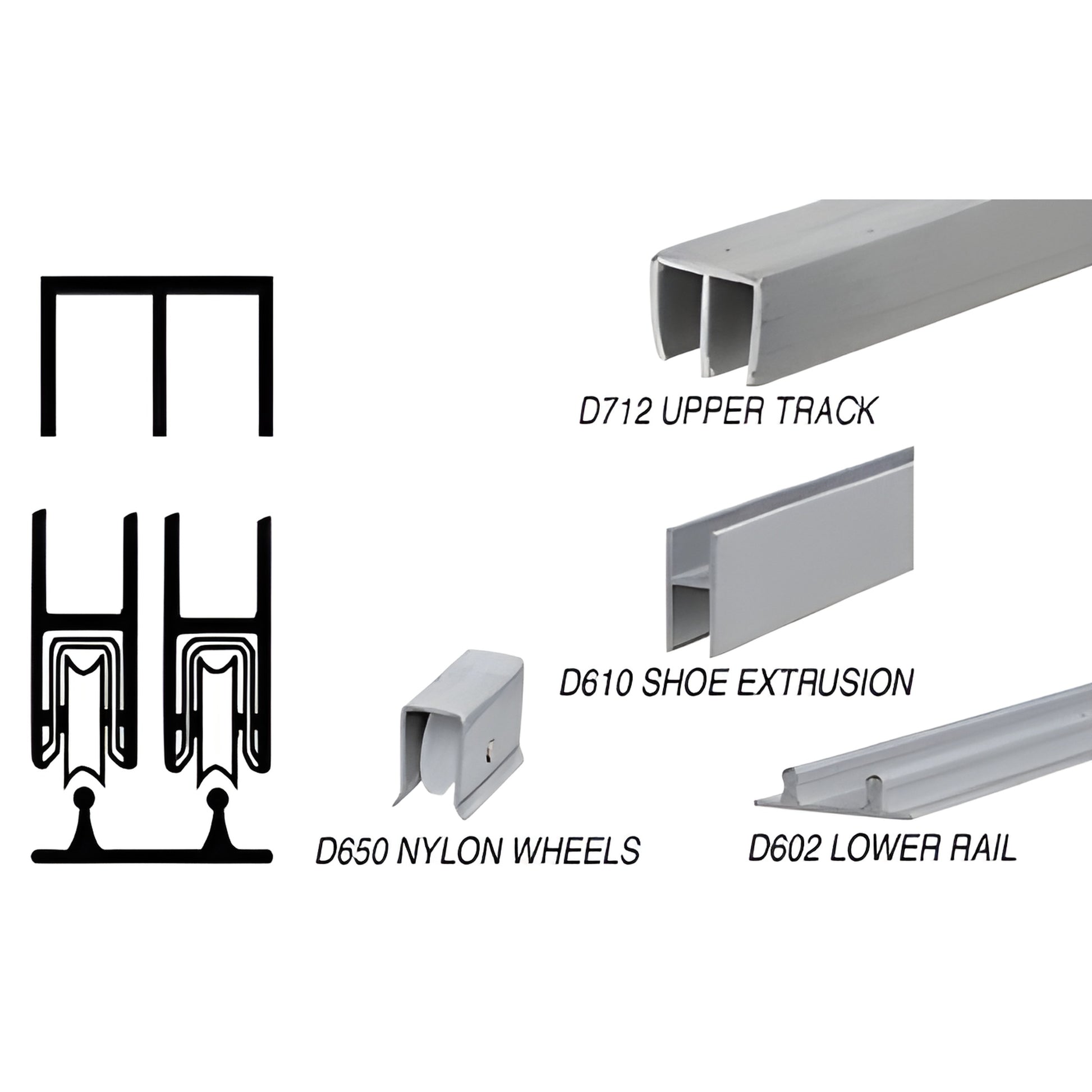

CRL Rolling Track Assembly
D712 Upper Channel
D610 Shoe
D650 Rollers
D602 Rail
Components for D2200A
D602A (x1)
D610A (x12)
D650 (x12)
D712GRY (x1)
Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment.
General glass cutting dimensions: If the customer wants a very tight fit they should figure their own dimensions. The dimensions shown are just guideline dimensions that are satisfactory for most situations. Glass height = opening minus 1-5/16".
