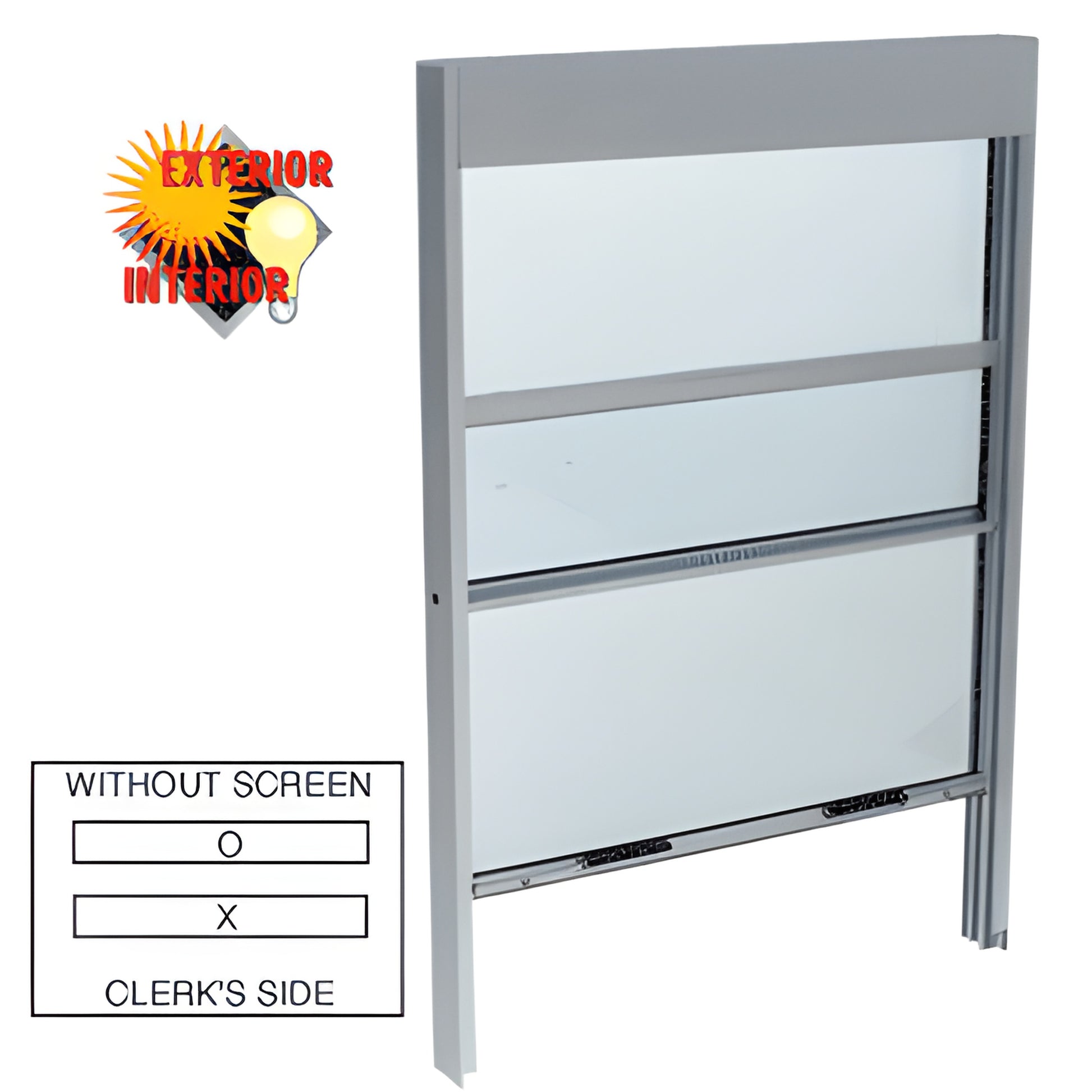

CRL Satin Anodized Sliding Service Window 1

• For light-duty applications — 50 or fewer uses per day
• Recommended for windows exceeding 1050 square inches (width × height)
• Available pre-glazed or non-glazed
• Offered in vertical and horizontal sliding service window formats
• Each unit customized to your opening and usage requirements

This CRL "SW" Series Sliding Service Window (SKU: SWB1014A) is designed for interior or exterior walk-up food service, receptionist, pharmacy, and similar customer-service applications. Choose vertical sliding service windows with nylon runners over coiled tension springs for smooth, counterbalanced operation, or horizontal sliding service windows that run on top nylon guides. For larger openings, we recommend a full bottom track with rollers for added durability and ease of use.

All larger vertical format service windows that exceed 1050 square inches (width × height) require concealed sash balances housed behind a 4-5/8" (117 mm) tall header. For exterior installations, an overhang is recommended to protect the header and balances.

NOTE: Specify handling when ordering — left or right hand fixed from clerk’s side. Surround frame is not available for insulating glass models. If ordered with a keyed lock, the screen panel will be installed in the center channel.

SPECIFICATIONS:
Materials: Extruded aluminum frame; tempered safety glass on select models; fiberglass screen on select models
Finishes: Satin anodized, Duranodic bronze, RAL powder coat, or Kynar paint. Painted units ship glazed only.
Glazing: 1/4" (6 mm) glass
Installation: Installation instructions included

Product Warning:

Larger vertical format service windows that exceed 1050 square inches (width × height) require sash balances.

Need a tailored sliding service window solution? Contact us to configure a CRL SW Series Sliding Service Window (SKU: SWB1014A) for your exact opening and application.
