CRL Sofia Satin Anodized Double-Acting Free-Swing Interior Hinge
CRL Sofia Satin Anodized Double-Acting Free-Swing Interior Hinge
Regular price
$84.23 CAD
Regular price
Sale price
$84.23 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PTH353SA
Shipping Weight: 8.0 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.0 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Satin Anodized
Glass Mounting Holes Diameter
5/8 in. (16 mm)
Glass Mounting Holes Required
2
Glazing Thickness
3/8 in. (10 mm)
Maximum Panel Weight
100 lbs. (45.4 kg)
Mounting Application
Surface
Overview
- Solid Aluminum Construction
- Satin Anodized Finish
- For 5/16" or 3/8" (8 or 10 mm) Tempered Glass

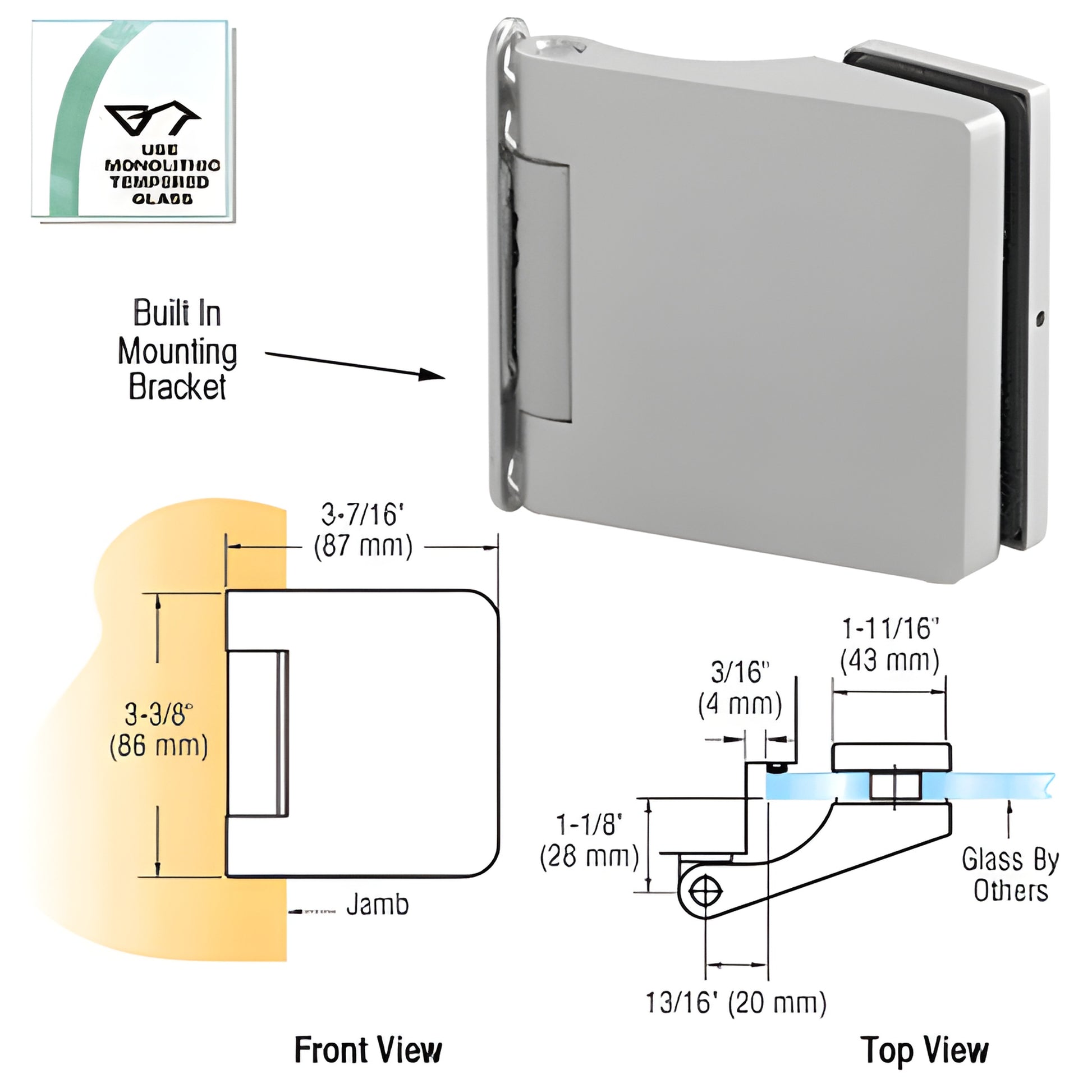

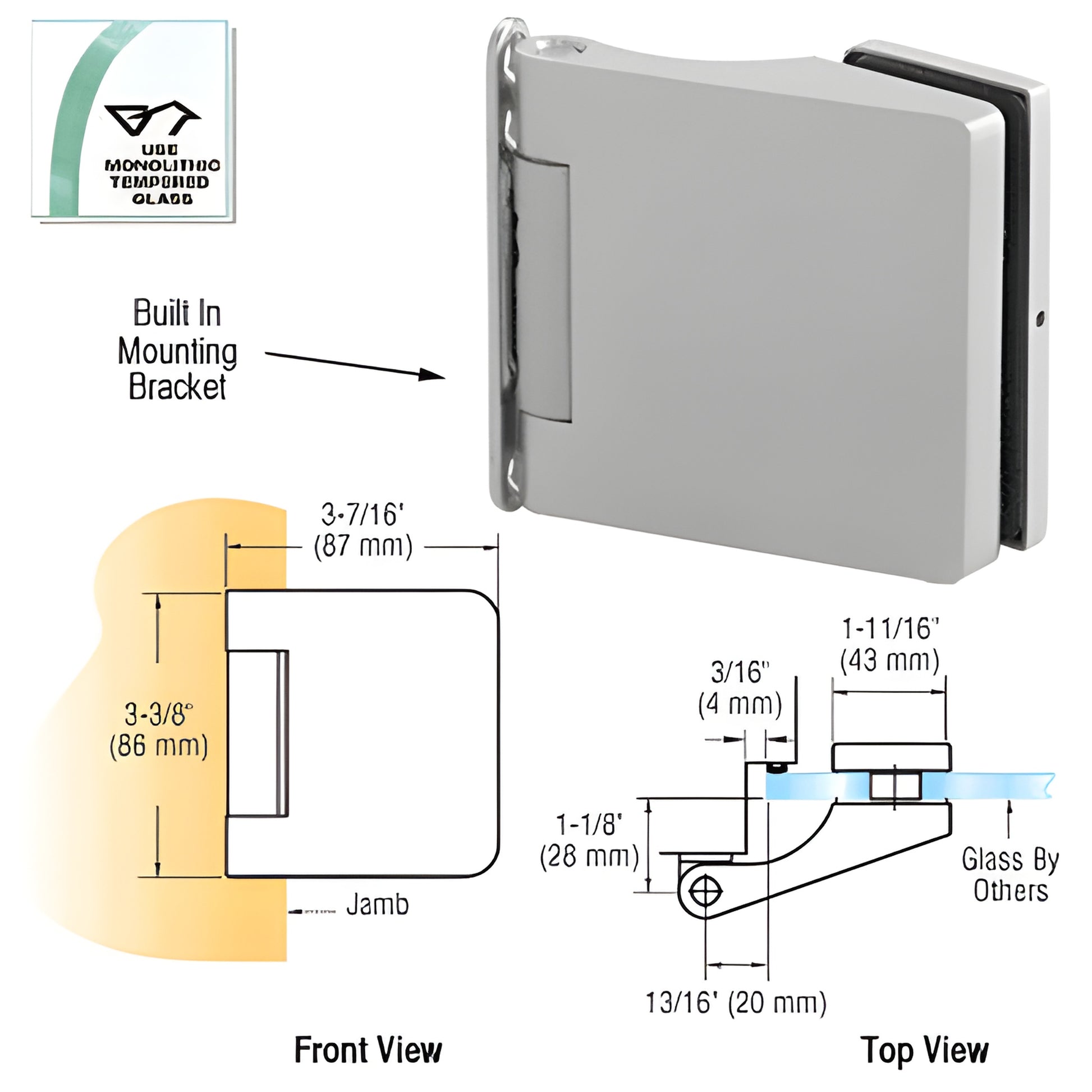

The CRL Sofia Free Swinging Interior Door Hinge (SKU: PTH353SA) features solid aluminum construction and a durable satin anodized finish. It includes a surface-mount bracket and installation screws for quick, reliable mounting.
This free-swinging interior door hinge opens to 180° and supports fully tempered glass panels 5/16" or 3/8" (8 or 10 mm) thick. Maximum capacity is 99 lbs. (45 kg) per hinge and up to 39" (990 mm) width per pair of hinges. Glass fabrication requires two 5/8" (16 mm) holes per hinge. Ideal for frameless glass doors and commercial interior glass installations.
For compatible hardware, see our PTH Series latches and lock sets.
Specifications
CAD Drawings - pdf
