CRL SSR Satin Anodized Bottom-Rolling Sliding Door Hardware OXO
CRL SSR Satin Anodized Bottom-Rolling Sliding Door Hardware OXO
Regular price
$0.00 CAD
Regular price
Sale price
$0.00 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SSR3ESA
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Door Configuration
OXO
Finish/Color
Satin Anodized
Height
4 in. (102 mm)
Material
Aluminum
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Minimum Door Width
234 in. (5944 mm)
Overview
- With 4" Tapered DR4T Series Door Rails and 4" Tapered SR4T Series Sidelite Bottom Rails
- Available in Seven Architectural Finishes
The CRL SSR Bottom Rolling Sliding Door System (SKU: SSR3ESA) features 4" (102 mm) tapered rails and the proven Wedge-Lock® Glass Securing System used in DR4T Series door rails on all sliding panels. Rails can be specified with or without bottom-rail locks for enhanced security and flexibility.
Fixed panels use SR4T Series sidelite rails with roll-in vinyl at the panel bottom and an integrated glazing channel with roll-in vinyl in the top track. Maximum door width is 48" (1.22 m) and maximum height is 108" (2.74 m); maximum panel weight is 234 lb (106 kg). All panels are custom fabricated to your specifications.
Key differentiators: bottom rolling sliding door system with 4" tapered rails, Wedge-Lock® glass securing, sidelite SR4T rails with roll-in vinyl, and seven architectural finish options.
Contact CRL or request a quote to order your custom SSR3ESA bottom rolling sliding door system today.
Specifications

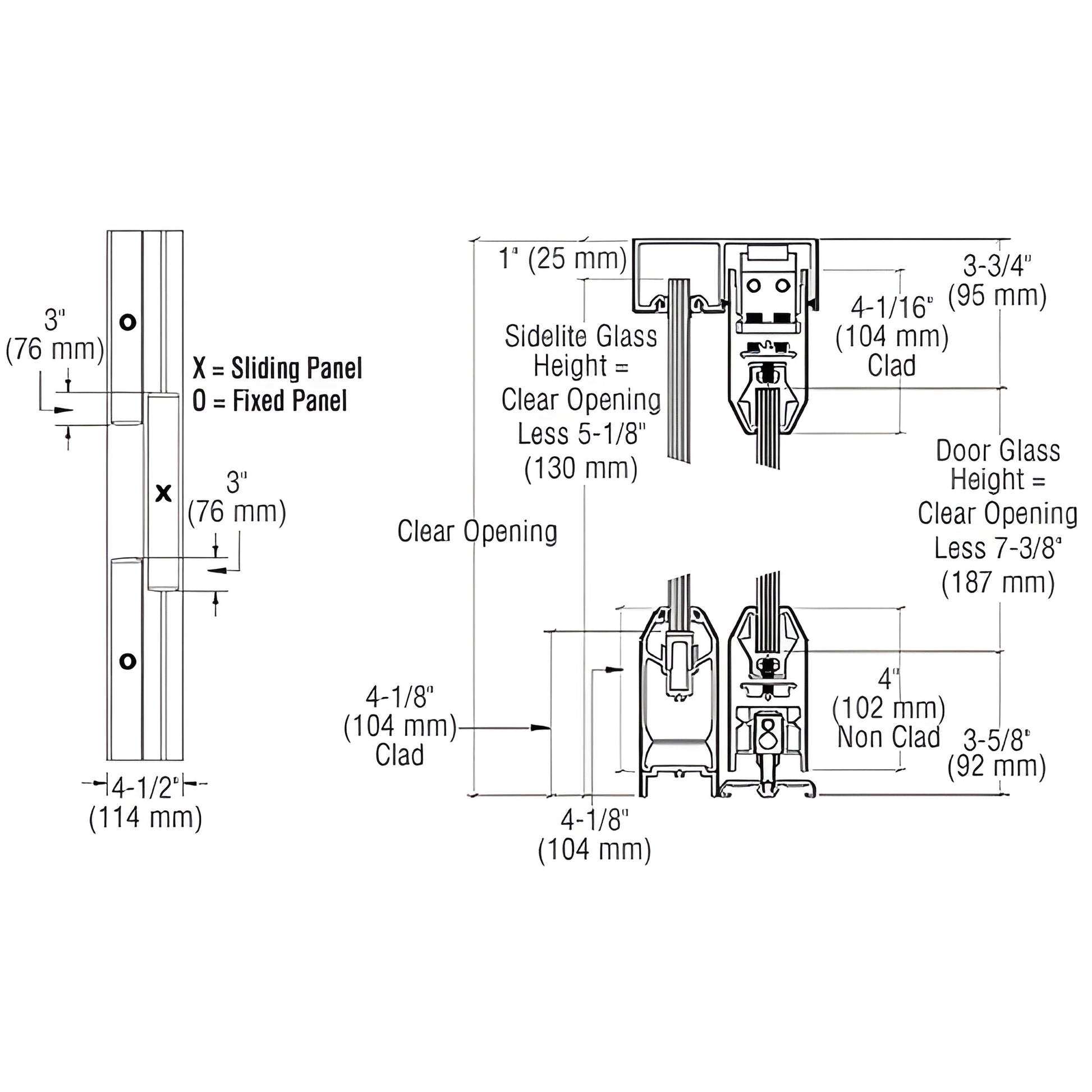

CAD Drawings - pdf
