CRL SSR Satin Anodized Bottom-Rolling Sliding Door Hardware XOX

CRL SSR Satin Anodized Bottom-Rolling Sliding Door Hardware XOX

$0.00 CAD
$0.00 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# SSR3DSA
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Door Configuration
XOX
Finish/Color
Satin Anodized
Height
4 in. (102 mm)
Material
Aluminum
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Minimum Door Width
234 in. (5944 mm)

Overview

  • With 4" Tapered DR4T Series Door Rails and 4" Tapered SR4T Series Sidelite Bottom Rails
  • Available in Seven Architectural Finishes

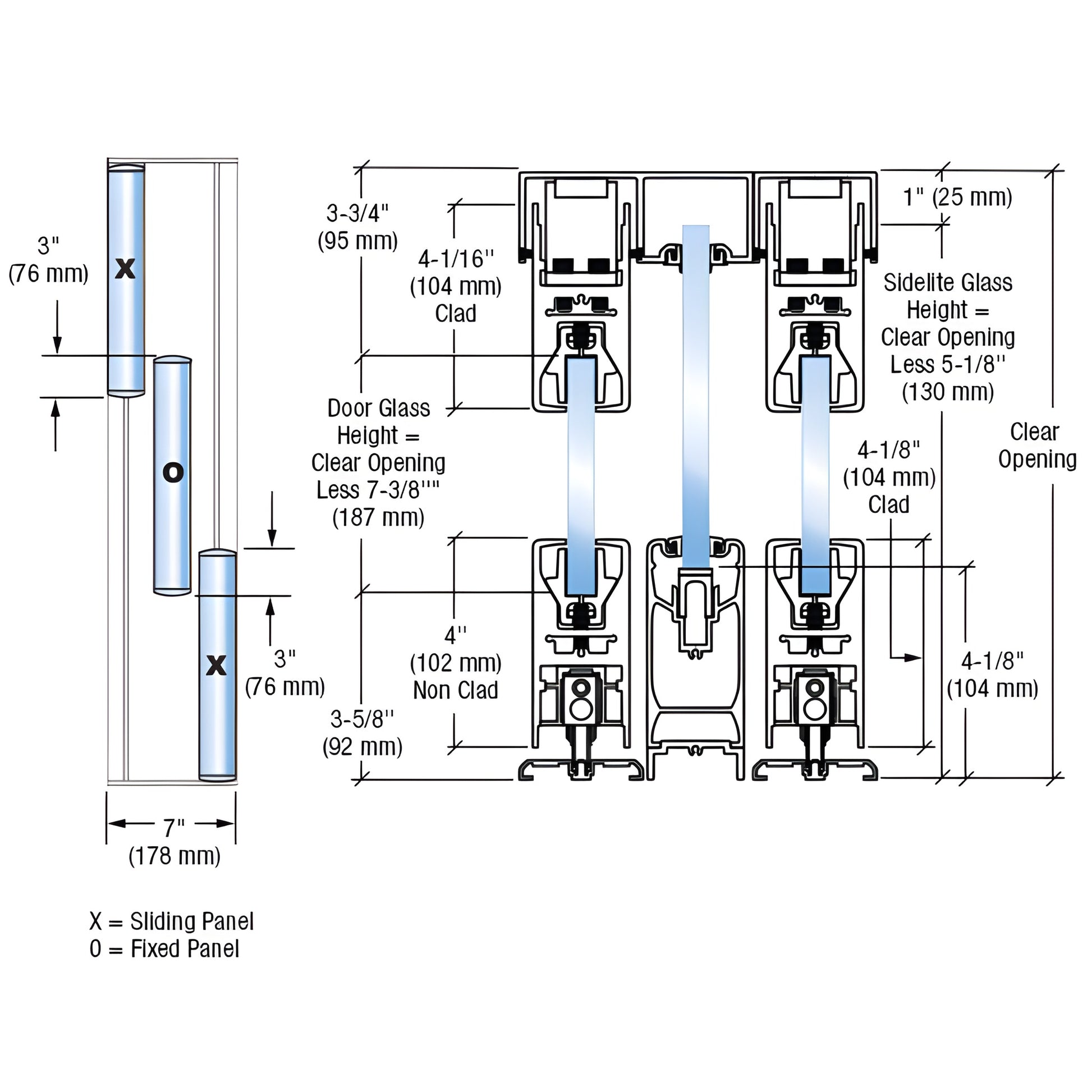

The CRL SSR Bottom Rolling Sliding Door System (SKU: SSR3DSA) features 4" (102 mm) tapered rails and the proven Wedge-Lock® Glass Securing System used in DR4T Series door rails on all sliding panels. Bottom rails are available with or without integrated locks for flexible security options.

The fixed sidelites use SR4T Series sidelite rails with roll-in vinyl at the panel bottom and an integrated glazing channel with roll-in vinyl in the top track. Maximum door width: 48" (1.22 m). Maximum door height: 108" (2.74 m). Maximum panel weight: 234 lb (106 kg). All panels are custom fabricated to your specifications and finished in one of seven architectural finishes.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.
